29
MAINTENANCE
■ Reinstall the spark plug cap into place.
NOTICE: Be careful not to cross-thread the spark plug. Cross-threading will seriously damage the
product.

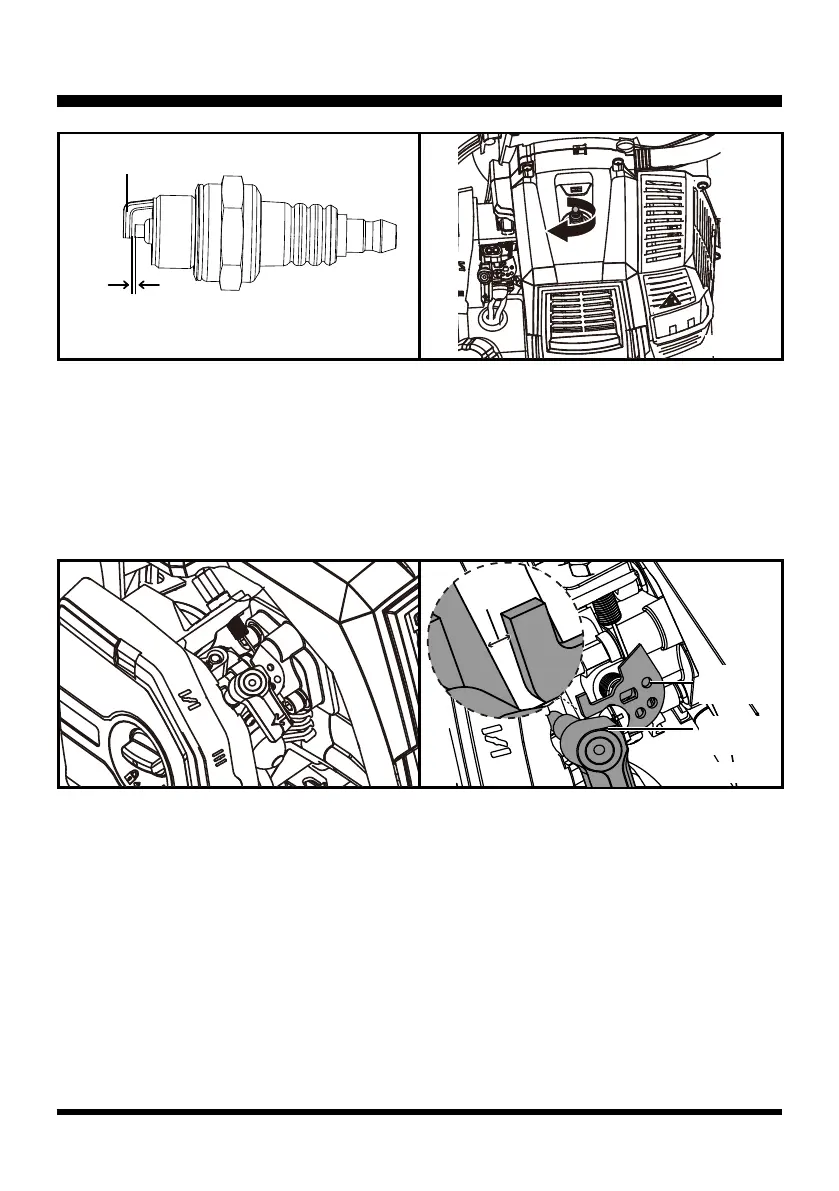

ADJUSTING THE THROTTLE (See Figs. 35-36)
Run the blower at full throttle. If there is a gap between throttle turntable and throttle limit plate, the
throttle cable should be adjusted (Fig. 35).
■ Rotate the air lter knob counter clockwise and gently pull off the air lter cover.
■ Loosen the nut by turning it counter clockwise with the supplied spanner and pull the throttle cable
counter clockwise, then tighten the nut by turning it clockwise with the supplied spanner (Fig. 36).
■ Press down the throttle lever to the end. Inspect to ensure there is no gap between the throttle
turntable and the throttle limit plate. If there is still a gap, repeat step 2.
■ Turn the air lter knob clockwise to secure the air lter cover.
Gap
Outer electrode
0.026in. (0.65 mm)
Fig. 33 Fig. 34
Fig. 35
Throttle
Limit Plate
Throttle
Turntable
To Next Page
