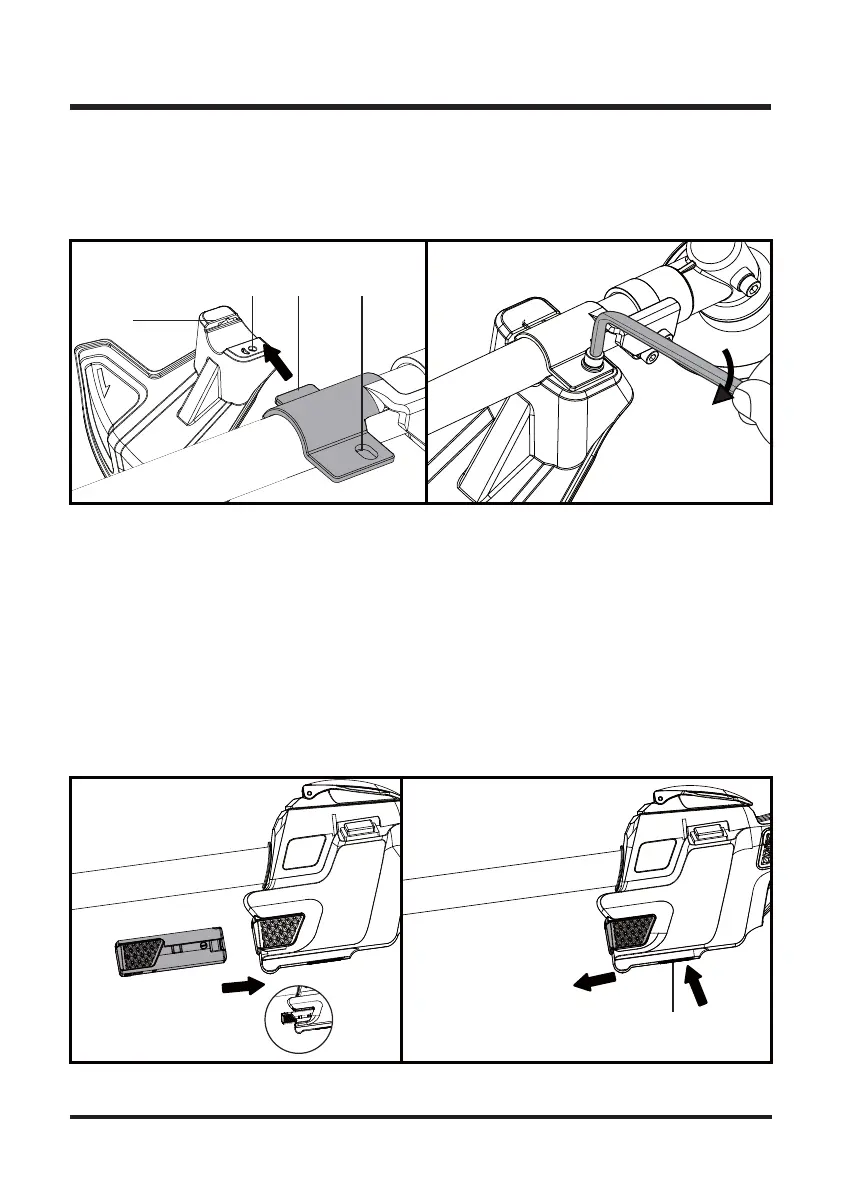

ASSEMBLY
Fig. 1
Fig. 3 Fig. 4
Slot
Hole on the
debris guard
Tab
Battery Release Button
Hole on the
mounting
bracket
Fig. 2
■ Insert the tab on the debris guard mounting bracket into the slot on the debris guard (Fig. 1).
■ Align the screw hole on the mounting bracket with the screw hole on the debris guard and
reinstall the washer and screw.
■ Secure the screw tight using the hex wrench (Fig. 2).
INSTALLING AND REMOVING THE BATTERY PACK (See Figs. 3-4)
To install the battery pack:
■ Align the battery pack with the battery slot.
■ Insert the battery pack into the battery slot until the battery pack secures into place. Make sure
the battery inserted in the correct direction (Fig. 3).
■ Do not use force when inserting the battery pack. It should slide into position and "click".
To remove the battery pack:
■ Locate the battery release button, press and hold the button up (Fig. 4).
■ Slide the battery pack off the battery slot.
WRONG
12
