LawnMaster NPTGSS2617A - Adjusting the Assist Handle

ASSEMBLY
Never adjust the assist handle while the trimmer head is running. Failure to stop the engine may
cause serious personal injury.
ADJUSTING THE ASSIST HANDLE (See Figs. 5-6)
The assist handle is pre-installed at delivery. Inspect and adjust it before operation if necessary.
■ Release the assist handle cam lock.
■ Adjust the assist handle using the anti-vibration ball to your most comfortable position as shown
(Fig. 5).
■ Secure the assist handle cam lock. Pay attention not to position the assist handle under the
shaft (Fig. 6).
■ The assist handle can only move in the direction indicated by the two arrows in Fig. 5, between
the two arrows marked "Handle Position".

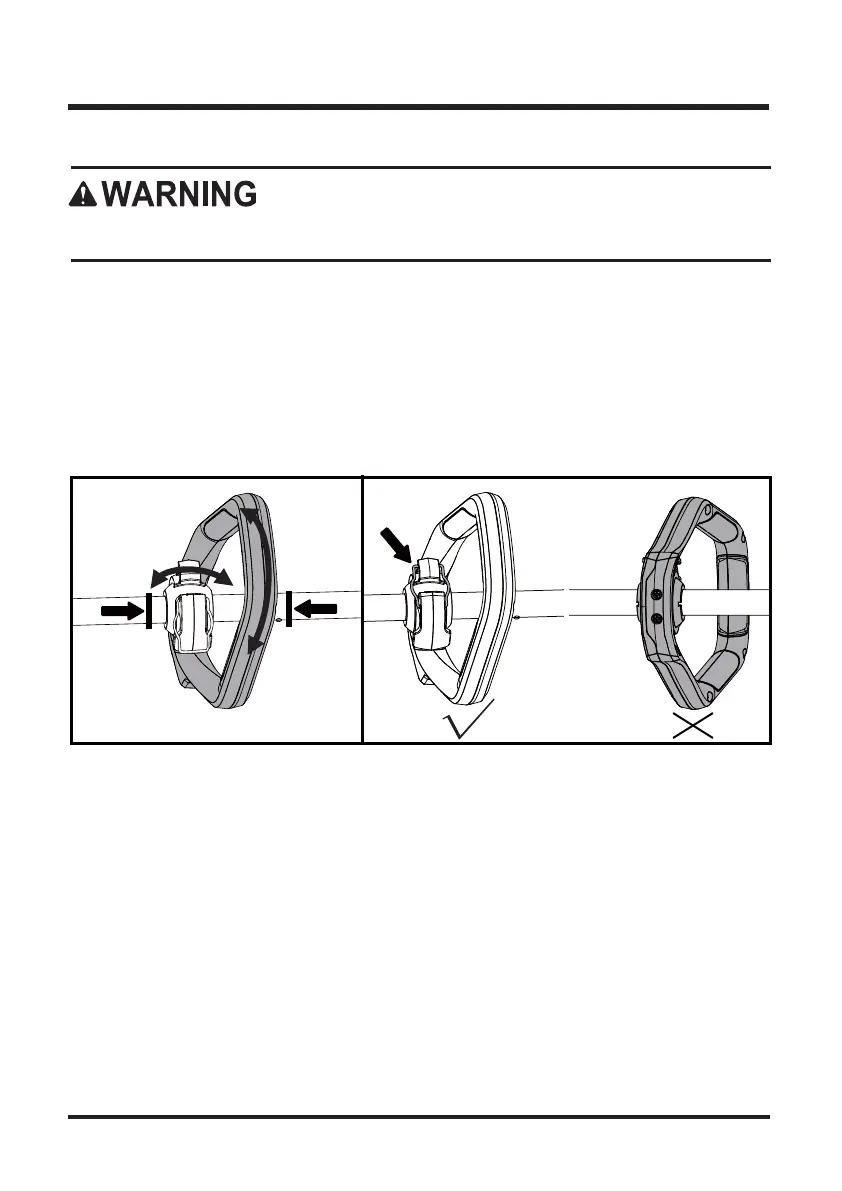

Fig. 5 Fig. 6
Handle Position
Handle Position
