6. Service Procedures
How to Adjust the Server Switch Settings
In each case, the Bayserver or Gateserver is mounted inside the console frame. Therefore, you will need to lift a
panel to access its switches.
DO NOT attempt to open the frame without first disconnecting the mains supply.
1. Lift either the Fader or Central Panel in the bay you wish to adjust as described earlier, and secure it in
place using the Hood Fastener.
As soon as you lift the panel, you will see the server mounted inside the frame. Note that you do not need to
disconnect any cables.
The function of the connectors and switches is explained on the sticker.

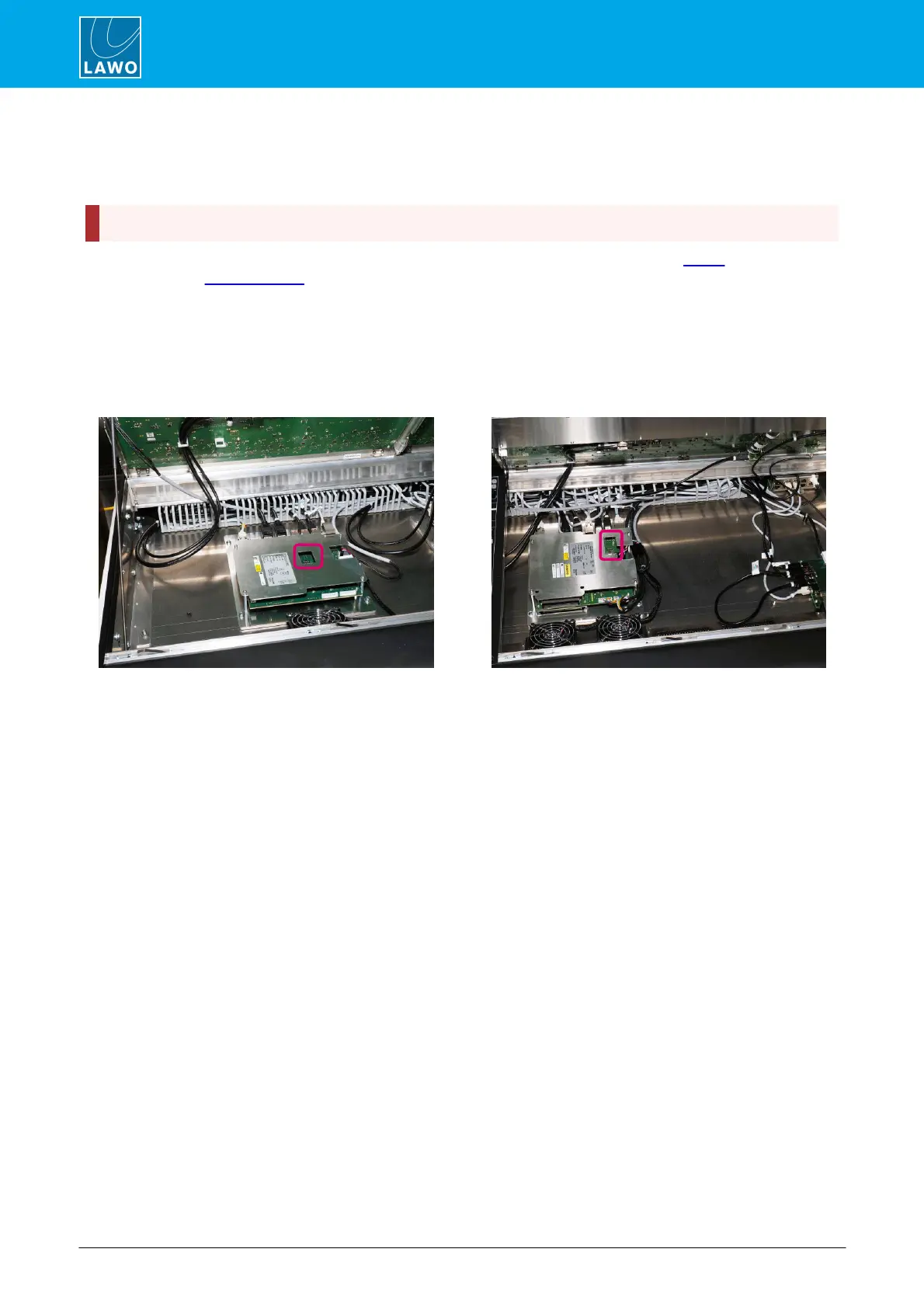

2. Locate the S1 DIP switches and SW1 rotary switch. They can be accessed through a cut-out in the
protective cover plate (highlighted below):
3. Set the S1 DIP switches to the desired ON/OFF positions. Check the positions carefully as the
switches are mounted upside down when viewed from the front buffer.
4. Set the SW1 rotary switch to the required address.
5. Replace the panel.
