V1.0/274 V_pro8 Manual
Operation (Web Browser Control)
SDI Out

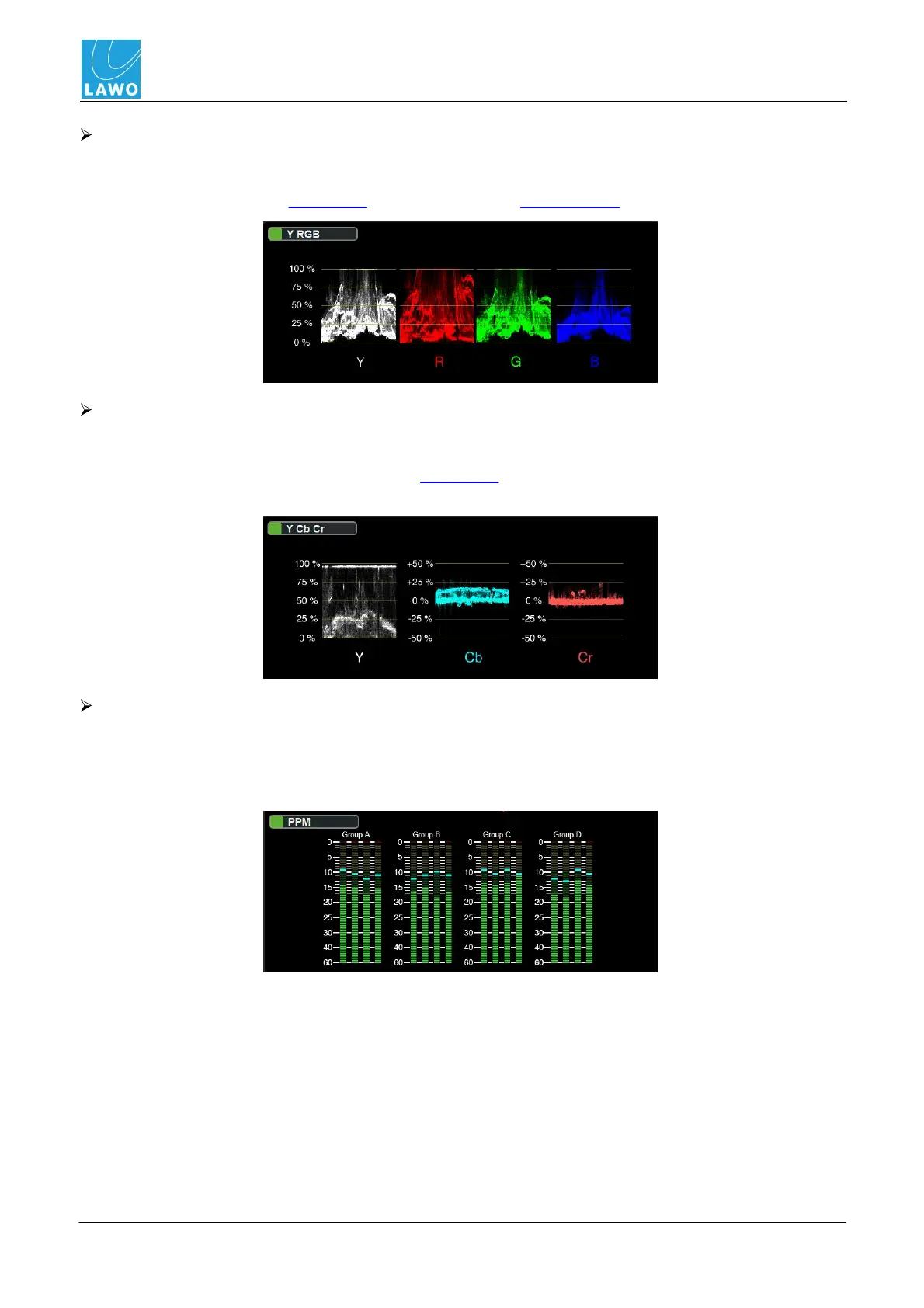

WFM YRGB
Waveform monitoring of the video channel (Y = Luminance, R = Red, G = Green, B = Blue).
Compares the amplitude of luminance (black & white) and chrominance (RGB colour) components:
WFM YCbCr
Waveform monitoring of the video channel (Y = Luminance, Cb = Chroma Blue, Cr = Chroma Red).
Similar to YRGB, but this time comparing luminance (black & white) with the colour difference
components (CbCr):
PPM
Peak Programme Metering for the 16 embedded audio channels.
The meter scale is dBFS, and includes a peak hold indicator (green) and overload flag (red) if audio
levels reach 0dBFS. The peak hold indicator clears automatically after a few seconds.
