LCI HF-320 a Series User Manual

Operation
6

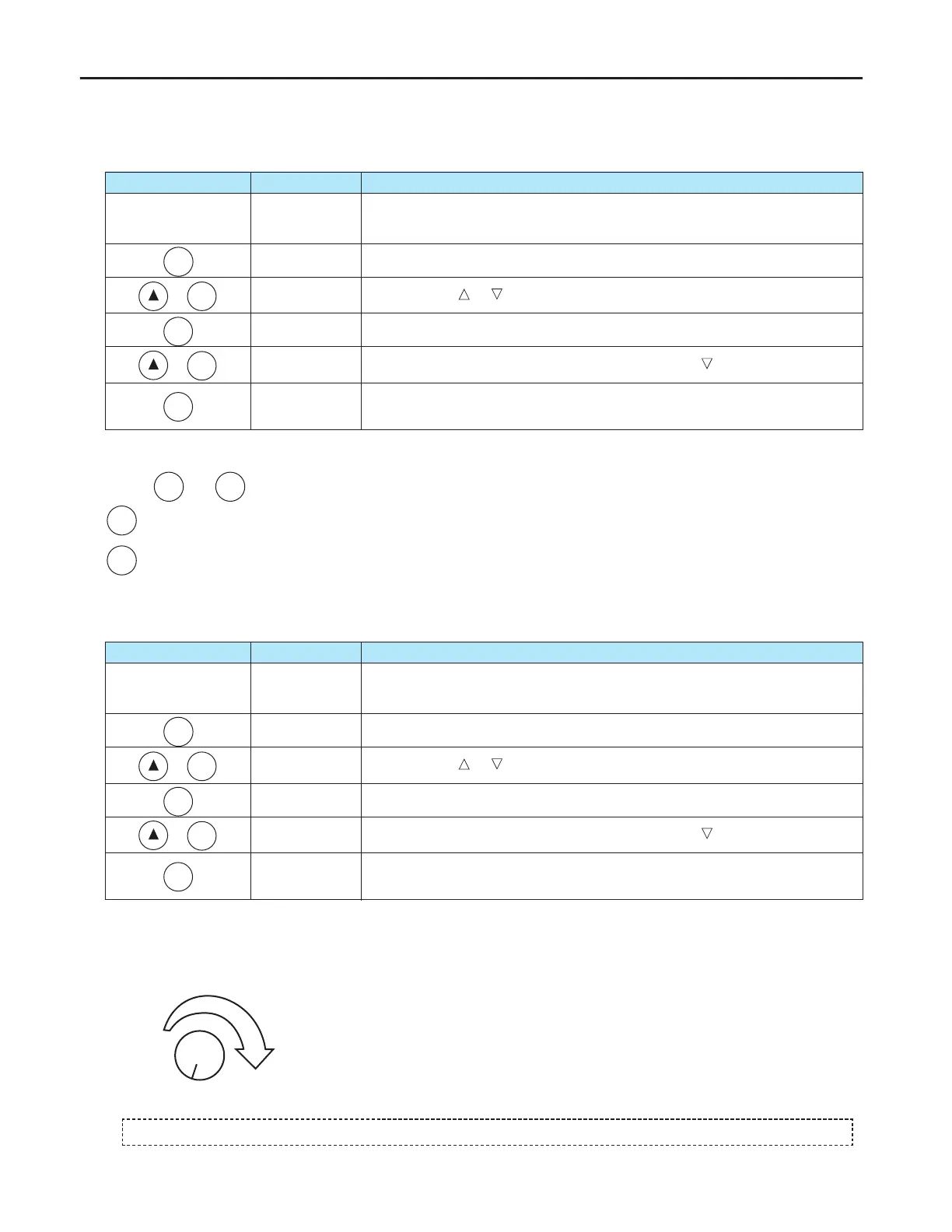

■ How to Start and Stop
[Example of a CmOd setting
procedure]
Key operated LED display Operation
0.0
Displays the operation frequency (operation stopped).
(When standard monitor display selection f710=0 [Operation frequency])
auH Displays the first basic parameter [History (auH)].
CmOd Press either the or key to select "CmOd".
1 Press STR key to display the parameter setting. (Default
setting:1).
0 Change the parameter to 0 (terminal board) by pressing the key
.
0 CmOd
Press the STR key to save the changed parameter. CmOd and the parameter set value
are displayed alternately.
■ Start and Stop Using the Operation Panel Keys (CmOd=1)
Use the and keys on the operation panel to start and stop the motor.
: Motor starts.
: Motor stops.
■ How to Set the Frequency
[Example of a fmOd setting procedure]
Key operated LED display Operation
0.0
Displays the operation frequency (operation stopped).
(When standard monitor display selection f710=0 [Operation frequency])
auH Displays the first basic parameter [History (auH)].
fmOd Press either the or key to select "fmOd".
0 Press STR key to display the parameter setting. (Default setting: 0).
3 Change the parameter to 3 (terminal board) by pressing the key.
3 fmOd
Press the STR key to save the changed parameter. fmOd and the parameter set value
are displayed alternately.
*Pressing the MON key twice returns the display to standard monitor mode (displaying operation frequency).
■
Setting the Frequency Using the Potentiometer on the Inverter Main Unit (fmOd=0)
Set the frequency with the notches on the potentiometer.
Move clockwise for the higher frequencies.
The potentiometer has hysteresis. So the set value may slightly change when the inverter is turned off, and then turned back on.
STOP
RESET
RUN
STOP
RESET
RUN
MON
STR
STR
MON
STR
STR
TD-7
