MUTE LEVEL
CAUTION: Before changing the mute level, first set the volume of the speaker to minimum. The mute function
(noise reduction / squelch) prevents interference noises from occurring when the transmitter is
switched off. In addition, suddenly occurring noise is also suppressed if the signal transmitted from the
transmitter to the receiver is not strong enough (e.g. due to too great a distance between transmitter
and receiver). With the transmitter switched off, adjust the mute level with a suitable screwdriver so
that background noise is just effectively suppressed (turned to the left, noise suppression is reduced,
turned to the right, it is increased). In the case of the setting with strong noise suppression, the
transmission range can be reduced under unfavorable circumstances.The Mute Level control is in the
delivery state on the left stop, the noise suppression thus on minimum strength. This setting is suitable
for the majority of all applications and changes are only required in rare cases.

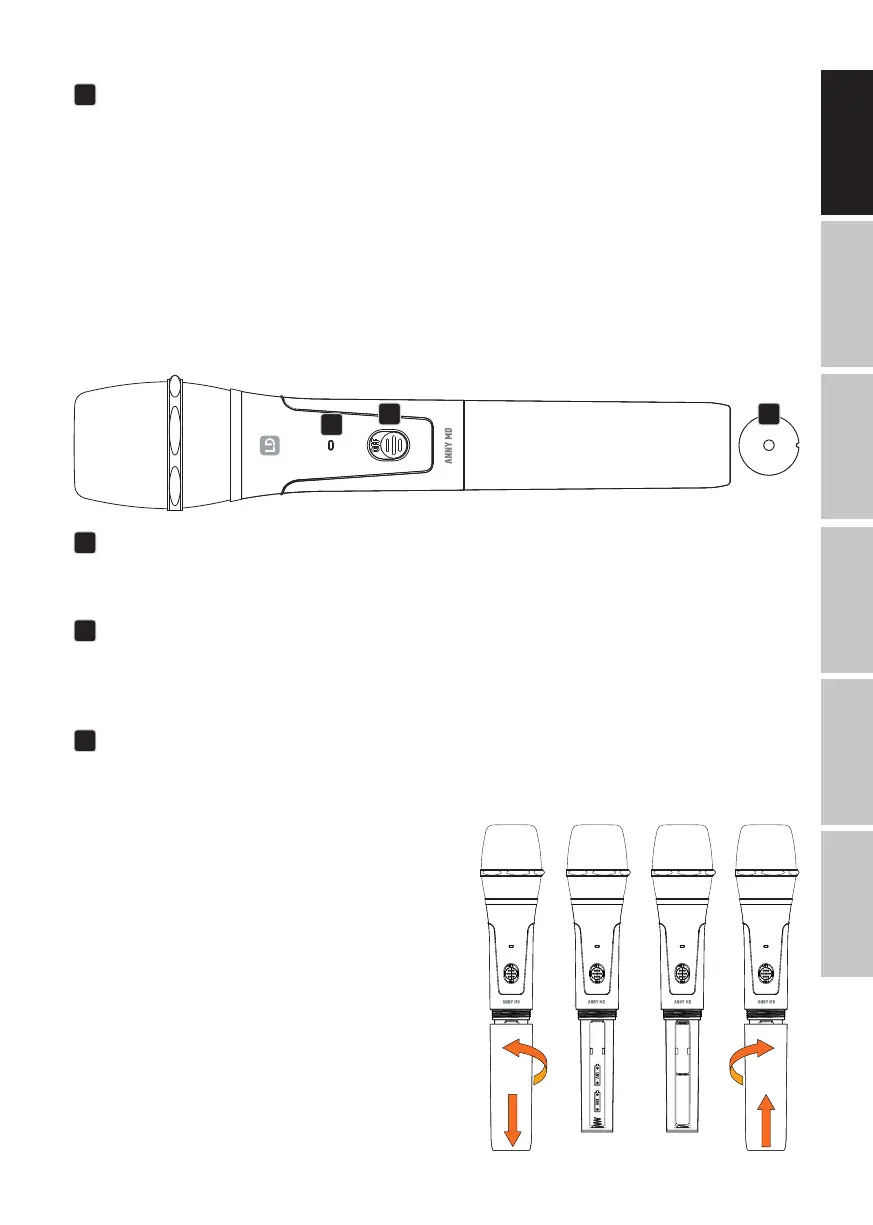

HANDHELD TRANSMITTER
2
1 3
1
ON / OFF
On or off switch. Slide the switch upwards to switch the handheld transmitter on; the word „ON“ can
now be read below the switch. Slide the switch downwards to switch the hand-held transmitter off (OFF).
2
STATUS LED
If the charging status of the inserted batteries is sufficient, the LED lights up green when the handheld
transmitter is switched on. If the LED lights up red, the charging status is low. Replace the used batteries
immediately.
3
IR INTERFACE
The infrared interface for synchronising the radio channel of the receiver and transmitter is located on
the underside of the handheld transmitter (for synchronisation procedure, see RECEIVER MODULE – SYNC).
REPLACING THE BATTERIES
To replace the batteries, open the battery compartment
of the handheld transmitter by loosening the battery
compartment cover by turning it counterclockwise and
pulling it off the housing. Remove the used batteries
and insert fresh batteries (2 x type AA / LR6, alkaline)
according to the illustrations in the battery compartment.
Place the battery compartment cover on the housing
and close the battery compartment by turning it
clockwise. If you are not going to use the transmitter
for a longer period of time, please remove the
batteries to avoid damage to the transmitter
due to leaking batteries.
