6

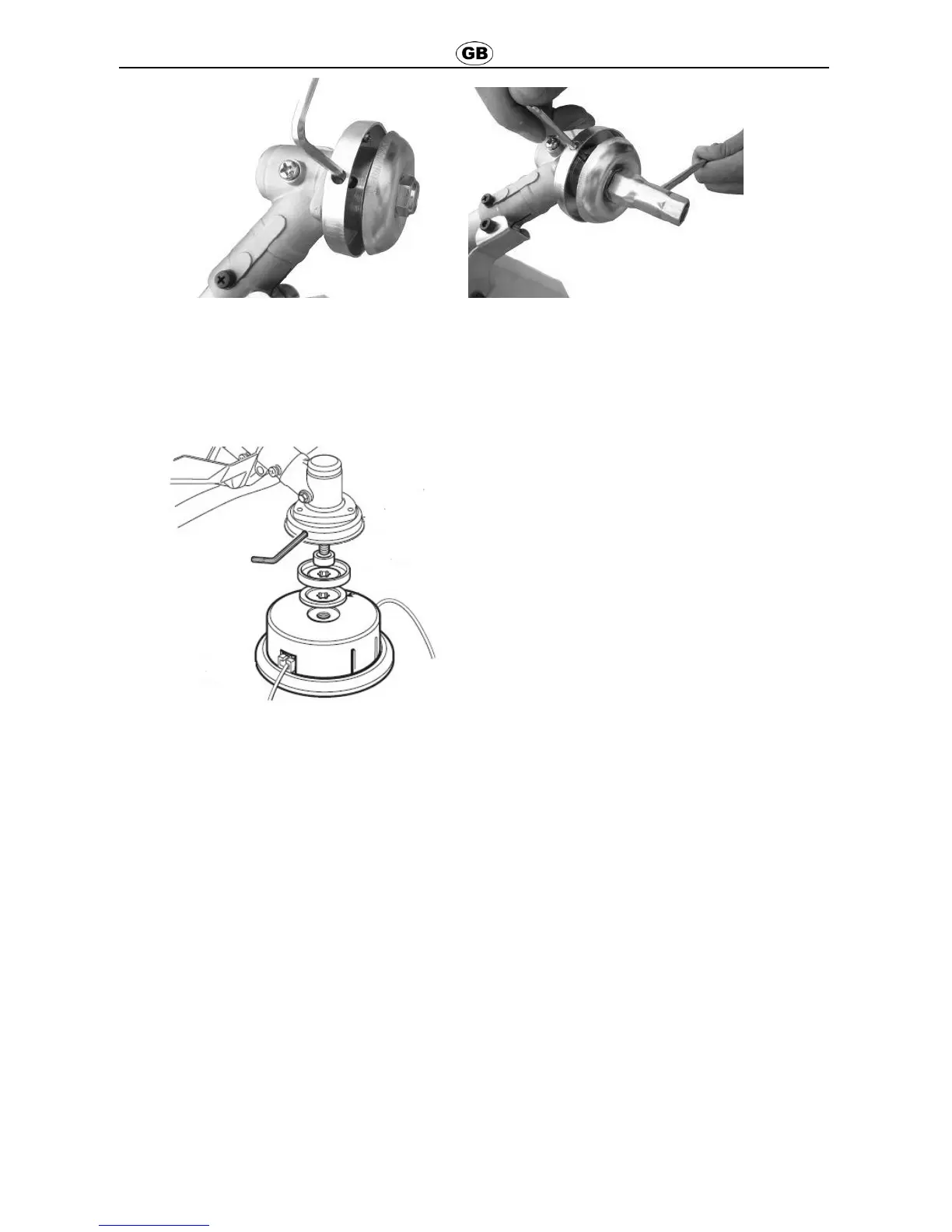

3.2 Fit the Nylon cutting head. Remove another shield after release the nuts as picture
showing. Still hold the flange, take the Nylon cutting head on the shaft and rotate
counter-clockwise, the Nylon cutting head is fitted.
3.3 Release the Nylon cutting head. Use screw driver to hold flange and then rotate the
Nylon cutting head clockwise, it will be replaced.
4.1 Fit the blade. Keep hex key holding on the flange then release the nuts as picture
showing, then put the blade, holder B, cover and left nut according to priority as below
picture.
Note the blade rotation direction needs be same as below picture. Use screw driver to hold
flange and tighten nut counter-clockwise, ensure the nut is tightened enough
