Lead LD-BK10 Series - Black Box and Timing Start;Stop

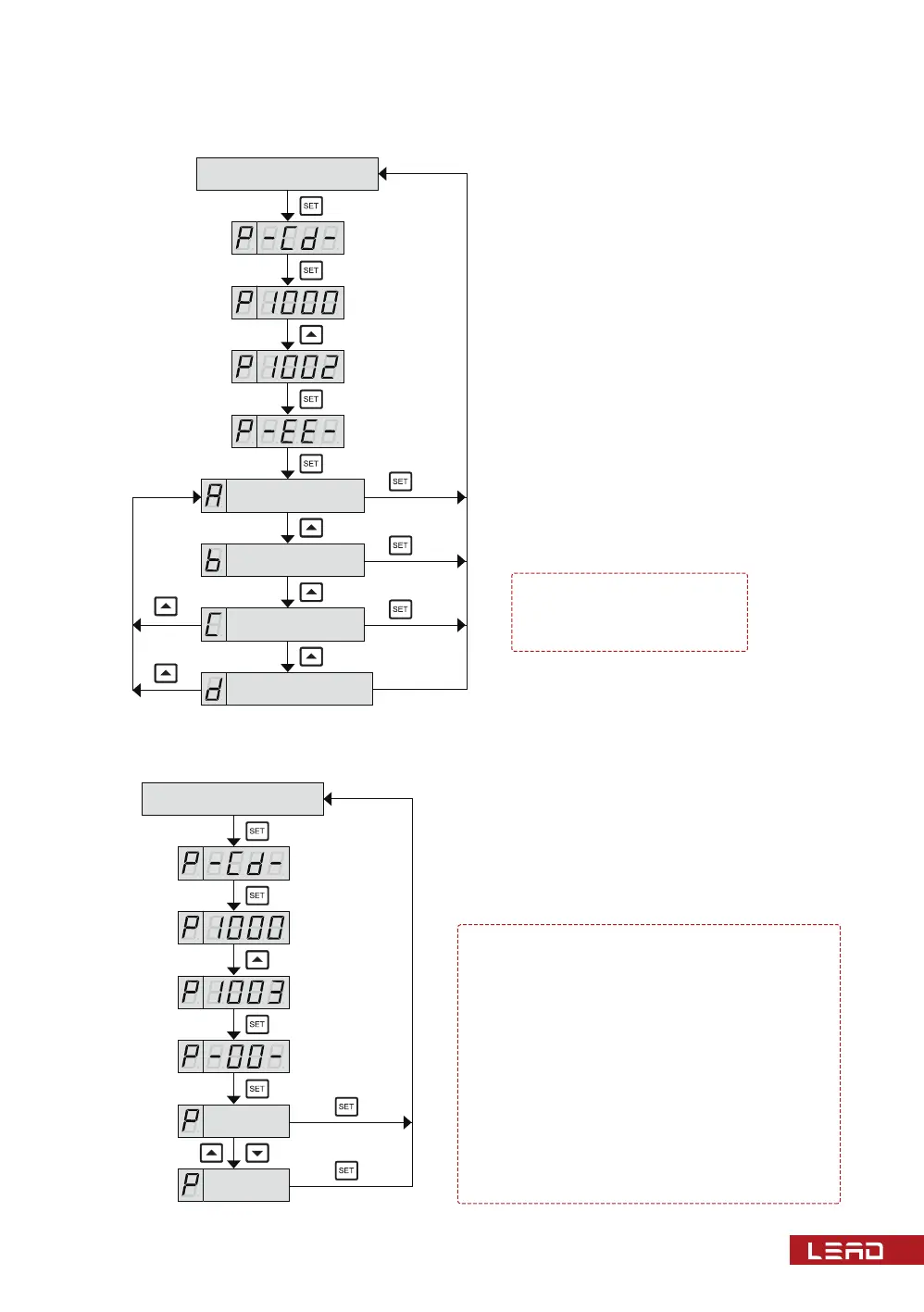

1. Black Box (P1002): View the temperature of each phase when the controller is
powered failure.
2. Timing Start Stop of Fan (P1003): Set up the time interval for the start-up of
the cooling fan
11
Note: Chanel d is avail-
able for types G/I only.
Note: The spacing interval is expressed in a
unit of hour with a set range of 0~150.
The auto operation time of the fan is set as
2 minutes by the software and user is unable
to change it.
For example: If 0 is set, it indicates the fan
has no timed start/stop function; If 24 is
set, the fan will start once at an interval of
24 hours. The user can set the interval in
light of the actual conditions.
Temperature of phase
A before power failure
Temperature of phase
B before power failure
Temperature of phase
C before power failure
Temperature of channel
d before power failure
Normal display status
Timing start
stop interval
Intervaltime
setting
Normal display status
