Lead LD-BK10 Series - Installation Steps; Temperature Controller Installation (embedded)

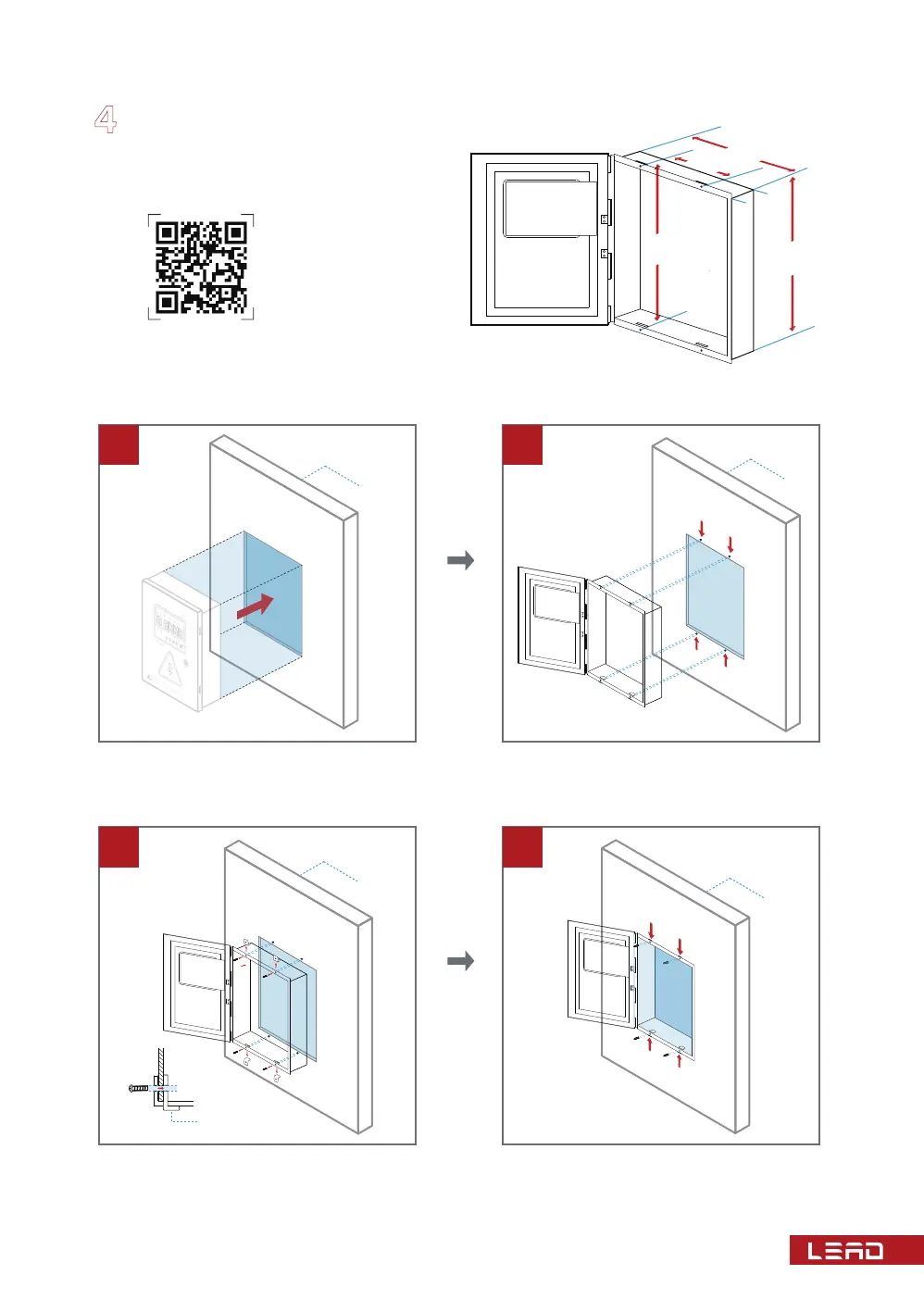

A rectangular mounting hole 302x372mm is
opened on the transformer housing.
4 Φ4.5 fixed holes (160x385mm) are opened
on the transformer housing according to the
size of the embedded installation fixed hole.
Open the controller cover and remove 4
screws and fixing plates.
Install the L-shaped fixing piece and fasten
the temperature controller to the transformer
housing with 4 M4 screws.
Embedded installation hole size: 372×302mm(High x width)
Fixed hole size: 385mm×160mm (High x width)
Embedding depth: 90mm
Fixed hole size: φ4.5
Scan code to watch
"Installation Video"
160mm
302mm
372mm
385mm
90mm
1
LD-BK10
T
he sensor cable must be removed from the con
troller before the withstand voltage test to prevent
damage to the controller.
在进行耐压测试前，必须将传感电缆从温控器上卸下，以防损坏温控器。
Max
Ci
rc
M
anu Alarm
Trip
Fault
Fan Run
Manu/Auto
Max/Circ
最大
风机运行
Fan Fault
风机故障
手动/自动 最大/巡回
巡回
超温
跳闸
故障
手动
变压器外壳
3
Fixing piece
Transformer housing

Installation steps
05
1. Temperature controller installa-
tion (embedded)
2
变压器外壳
4
Transformer housing
