Leader Electronics Corp. LBO-522 - Table of Contents

I
I
L BO-522
20MHz DUAL TRACE OSCILLOSCOPE
*
L BO-523
35MHz DUAL TRACE OSCILLOSCOPE

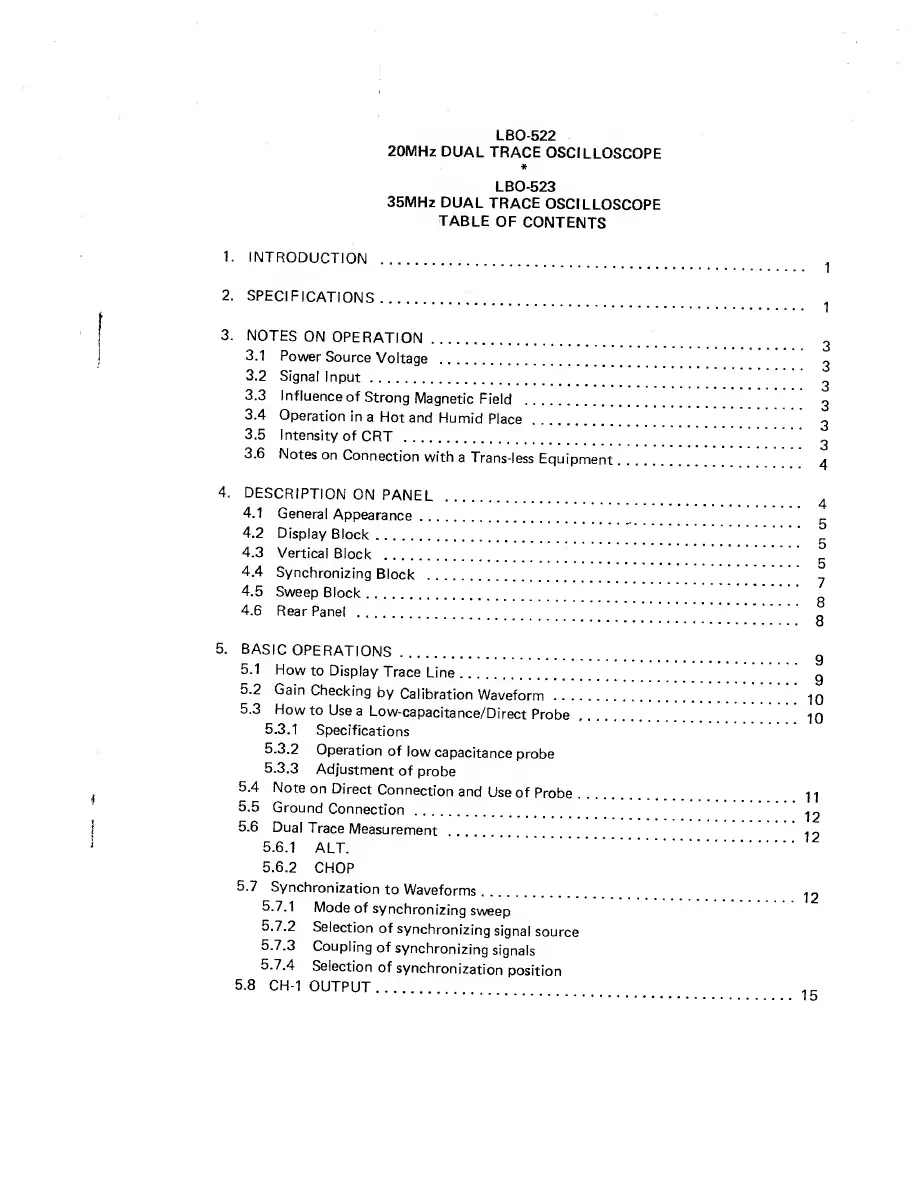

TABLE OF CONTENTS
1. INTRODUCTION ..
2. SPECIFICATIONS....
3. NOTES ON OPERATION.
3.1 Power Source Voltage .
3.2 Signal Input.
3.3 Influence of Strong Magnetic Field .
3.4 Operation in a Hot and Humid Place.
3.5 Intensity of CRT .
3.6 Notes on Connection with a Trans-less Equipment.
4. DESCRIPTION ON PANEL .
4.1 General Appearance..
4.2 Display Block.
4.3 Vertical Block ..
4.4 Synchronizing Block .
4.5 Sweep Block.
4.6 Rear Panel .
5. BASIC OPERATIONS.
5.1 How to Display Trace Line.
5.2 Gain Checking by Calibration Waveform.
5.3 How to Use a Low-capacitance/Direct Probe
5.3.1 Specifications
5.3.2 Operation of low capacitance probe
5.3.3 Adjustment of probe
5.4 Note on Direct Connection and Use of Probe.
5.5 Ground Connection.
5.6 Dual Trace Measurement
5.6.1 ALT.
5.6.2 CHOP
5.7 Synchronization to Waveforms.
5.7.1 Mode of synchronizing sweep
5.7.2 Selection of synchronizing signal source
5.7.3 Coupling of synchronizing signals
5.7.4 Selection of synchronization position
5.8 CH-1 OUTPUT.
1
1
3
3
3
3
3
3
4
4
5
5
5
7
11
12
12
12
15
00
00
CD
CD
O
O
