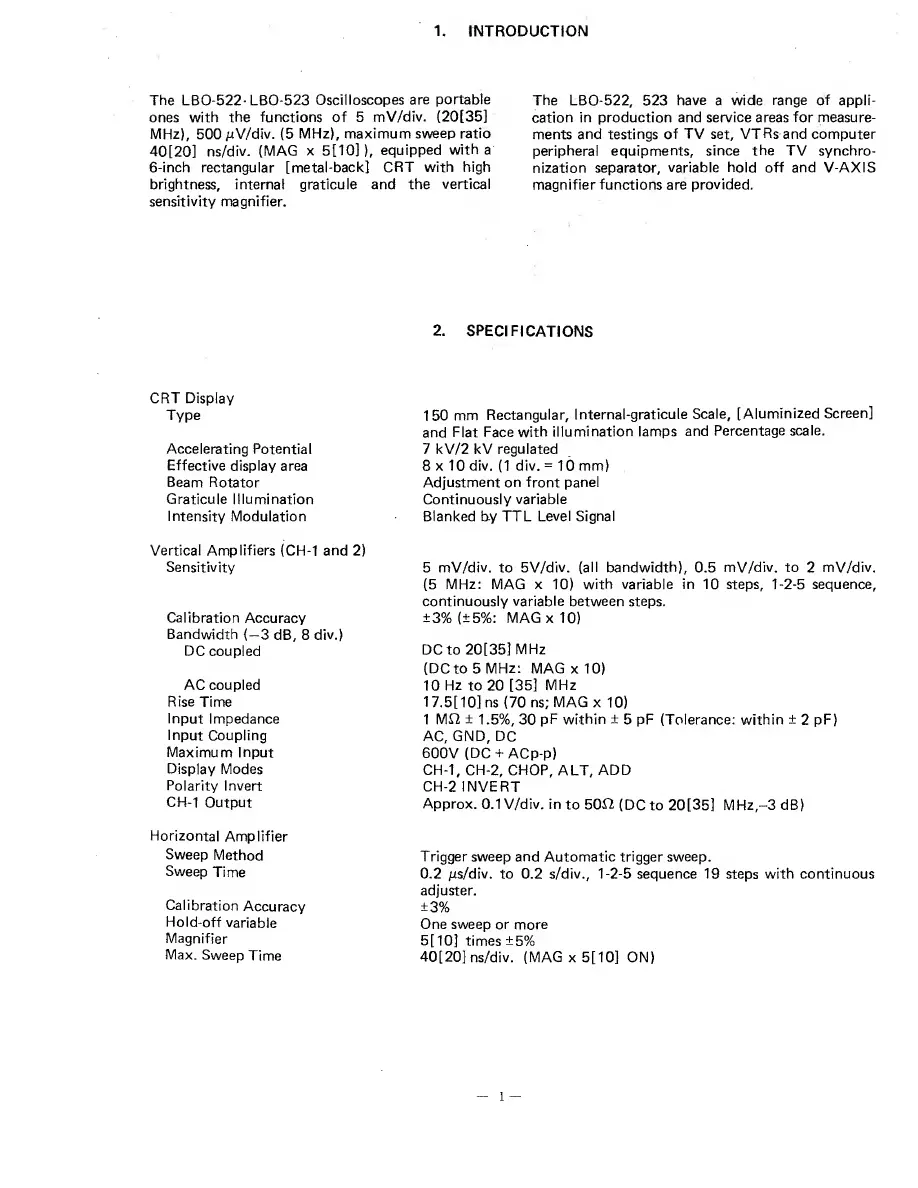

1. INTRODUCTION
The LBO-522-LBO-523 Oscilloscopes are portable
ones with the functions of 5 mV/div. (20[35]
MHz), 500 /iV/div. {5 MHz), maximum sweep ratio
40[20] ns/div. (MAG x 5[10]), equipped with a
6-inch rectangular [metal-back] CRT with high
brightness, internal graticule and the vertical
sensitivity magnifier.
The LBO-522, 523 have a wide range of appli¬
cation in production and service areas for measure¬
ments and testings of TV set, VTRs and computer
peripheral equipments, since the TV synchro¬
nization separator, variable hold off and V-AXIS
magnifier functions are provided.
2. SPECIFICATIONS
CRT Display
Type
Accelerating Potential
Effective display area
Beam Rotator
Graticule Illumination
Intensity Modulation
150 mm Rectangular, Internal-graticule Scale, [Aluminized Screen]
and Flat Face with illumination lamps and Percentage scale.
7 kV/2 kV regulated
8x10 div. (1 div. = 10mm)
Adjustment on front panel
Continuously variable
Blanked by TTL Level Signal
Vertical Amplifiers (CH-1 and 2)
Sensitivity
Calibration Accuracy
Bandwidth (—3 dB, 8 div.)
DC coupled
AC coupled
Rise Time
Input Impedance
Input Coupling
Maximum Input
Display Modes
Polarity Invert
CH-1 Output
Horizontal Amplifier
Sweep Method
Sweep Time
Calibration Accuracy
Hold-off variable
Magnifier
Max. Sweep Time
5 mV/div. to 5V/div. (all bandwidth), 0.5 mV/div. to 2 mV/div.
(5 MHz: MAG x 10) with variable in 10 steps, 1-2-5 sequence,
continuously variable between steps.
±3% (±5%: MAG x 10)
DC to 20[35] MHz
(DC to 5 MHz: MAG x 10)
10 Hz to 20 [35] MHz
17.5[ 10] ns (70 ns; MAG x 10)
1 M£2 ± 1.5%, 30 pF within ± 5 pF (Tolerance: within ± 2 pF)
AC, GND, DC
600V (DC + ACp-p)
CH-1, CH-2, CHOP, ALT, ADD
CH-2 INVERT
Approx. 0.1 V/div. in to 50ft (DC to 20[35] MHz,-3 dB)
Trigger sweep and Automatic trigger sweep.
0.2 /rs/div. to 0.2 s/div., 1-2-5 sequence 19 steps with continuous
adjuster.
±3%
One sweep or more
5[10] times ±5%
40[20] ns/div. (MAGx5[10] ON)
