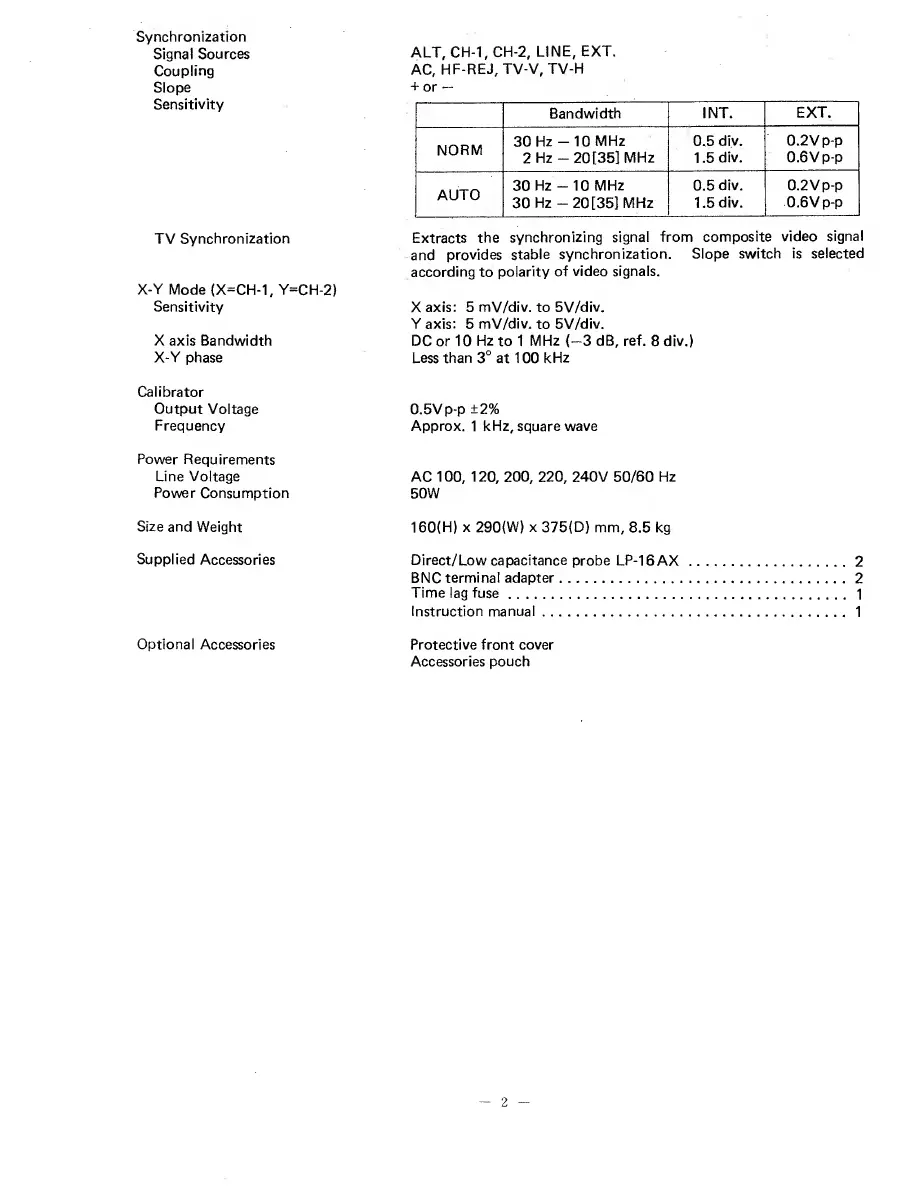

Synchronization
Signal Sources
Coupling
Slope
Sensitivity
TV Synchronization
X-Y Mode (X=CH-1, Y=
Sensitivity
X axis Bandwidth
X-Y phase
Calibrator
Output Voltage
Frequency
Power Requirements
Line Voltage
Power Consumption
Size and Weight
Supplied Accessories
Optional Accessories
ALT, CH-1, CH-2, LINE, EXT.
AC, HF-REJ, TV-V, TV-H
+ or —
Bandwidth INT.
EXT.
NORM
30 Hz - 10 MHz
2 Hz - 20 [35] MHz
0.5 div.
1.5 div.
0.2 V p-p
0.6 V p-p
AUTO
30 Hz-10 MHz
30 Hz-20 [35] MHz
0.5 div.
1.5 div.
0.2 V p-p
0.6 V p-p
Extracts the synchronizing signal from composite video signal
and provides stable synchronization. Slope switch is selected
according to polarity of video signals.
CH-2)
X axis: 5 mV/div. to 5V/div.
Y axis: 5 mV/div. to 5V/div.
DC or 10 Hz to 1 MHz {-3 dB, ref. 8 div.)
Less than 3° at 100 kHz
O.BVp-p ±2%
Approx. 1 kHz, square wave
AC 100, 120, 200, 220, 240V 50/60 Hz
50W
160(H) x 290(W) x 375(D) mm, 8.5 kg
Direct/Low capacitance probe LP-16AX.2
BNC terminal adapter.2
Time lag fuse. 1
Instruction manual. 1
Protective front cover
Accessories pouch
