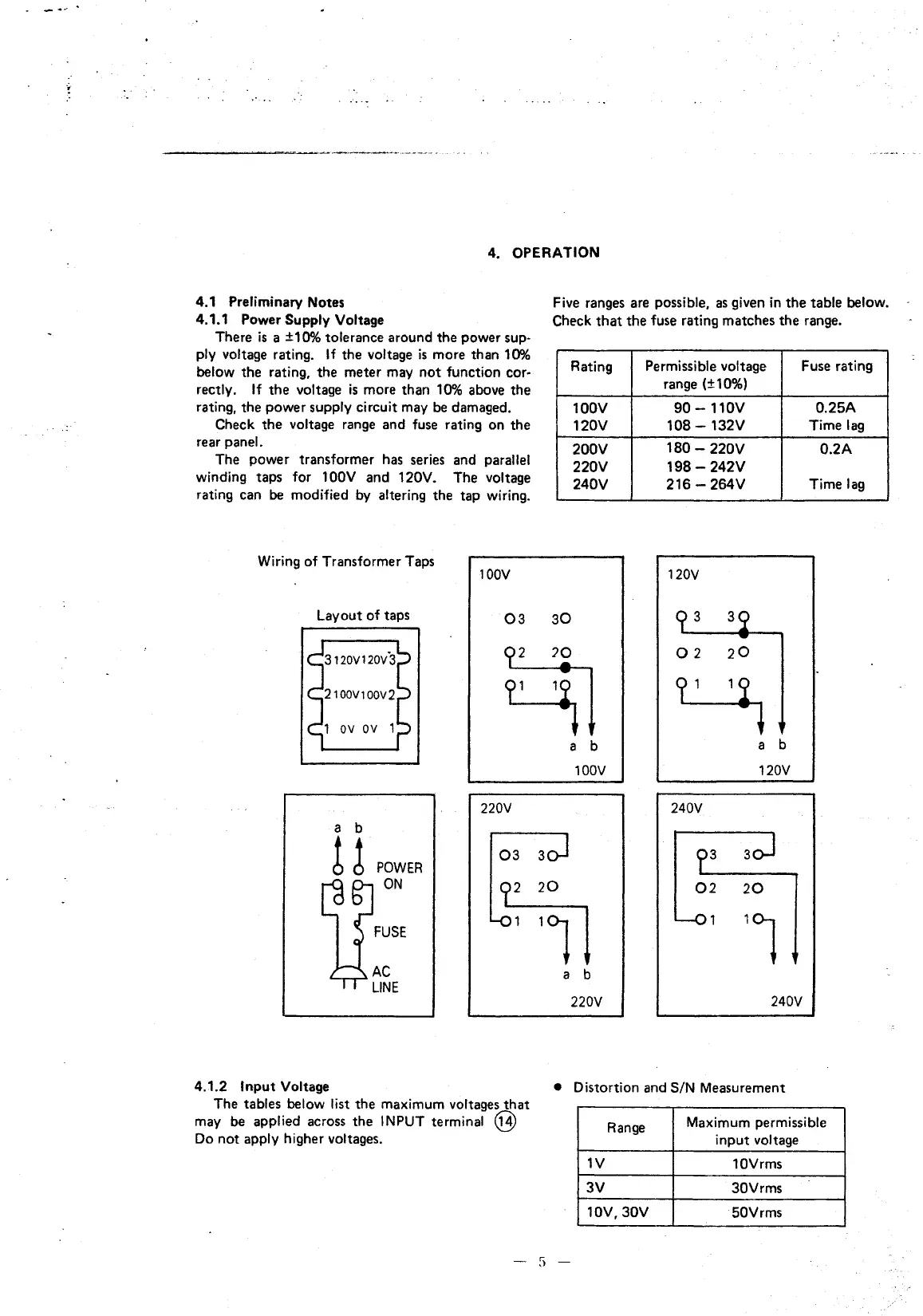

4.
OPERATION
4.1 Preliminary Notes
4.1.1
Power
Supply
Voltage
There
is
a ±10%
tolerance
around
the
power
sup-
ply voltage rating. If
the
voltage
is
more
than
1
()Of,
below
the
rating,
the
meter
may
not
function
cor·
rectly. If
the
voltage
is
more
than
10% above
the
rating,
the
power
supply
circuit
may be damaged.
Check
the
voltage range
and
fuse rating
on
the
rear panel.
The
power
transformer
has series and parallel
winding
taps
for
100V
and
120V.
The
voltage
rating
can
be
modified
by altering
the
tap
wiring.
Wiring
of
Transformer
Taps
a b
!!
POWER
ON
FUSE
100V
03
220V
Five ranges are possible,
as
given in
the
table
below.
Check
that
the
fuse rating
matches
the
range.
Rating
100V
120V
200V
220V
240V
30
a b
100V
a b
220V
Permissible voltage
range
(±10%)
90
-110V
108-
132V
180-
220V
198-
242V
216-
264V
120V
<(_3
3j_
0 2
20
240V
a b
120V
02
20
Fuse rating
0.25A
Time
lag
0.2A
Time
lag
240V
4.1.2
Input
Voltage
Distortion
and
SIN
Measurement
The
tables below list
the
maximum
voltages
that
may be applied across
the
INPUT terminal @
Do
not
apply higher voltages.
-
s-
Range
1V
3V
10V,
30V
Maximum permissible
input
voltage
10Vrms
30Vrms
50Vrms
