12.9.1 Display procedure

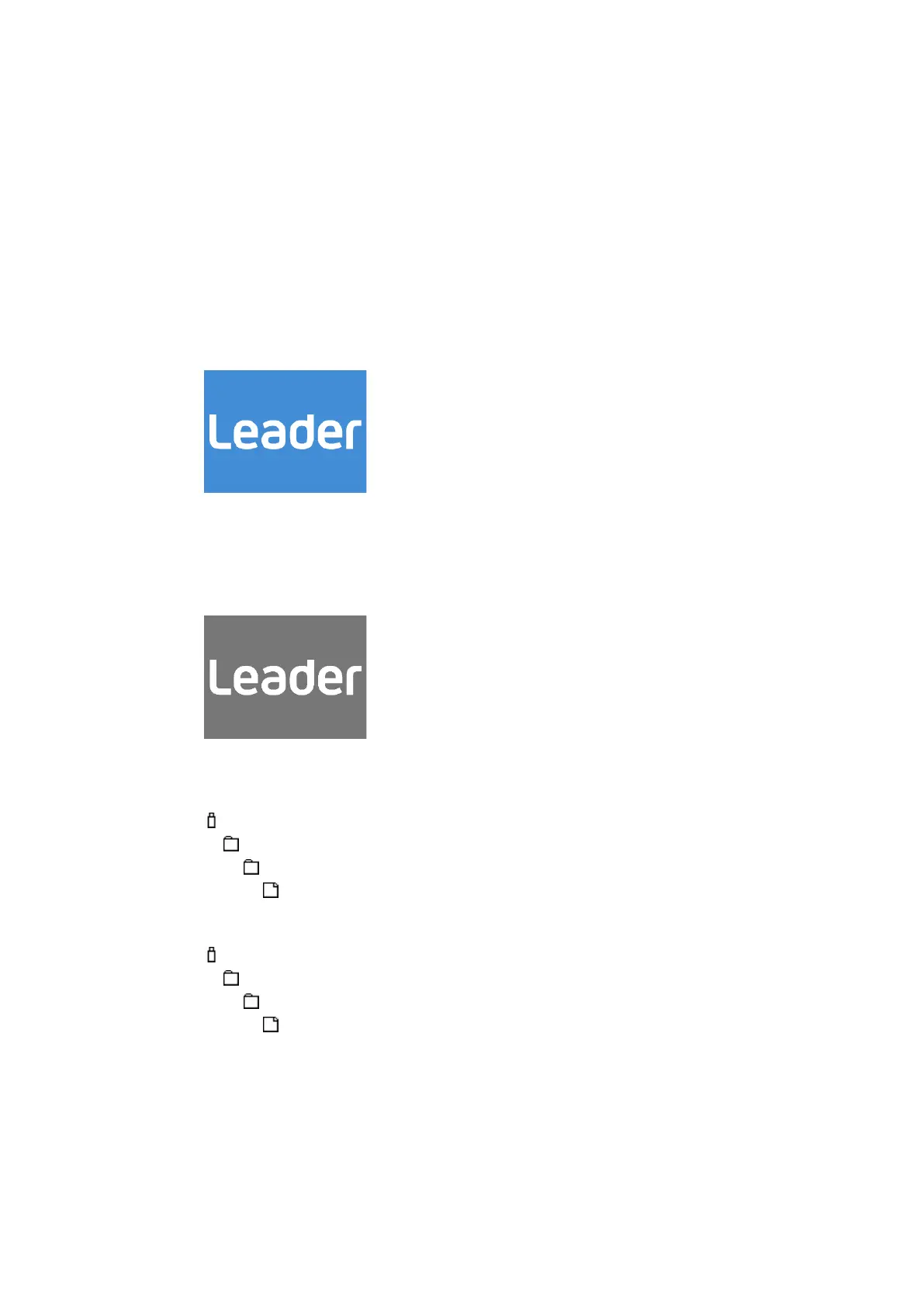

This describes the procedure from creating a logo to displaying it in a pattern.
In this example, the logo file name is “LEADER.bmp.”
1. Create a logo on your PC.
Create an image in bmp format according to the following conditions.
File name: Up to eight characters (excluding the extension) consisting of alphanumeric
characters or underscore.
File format: 24 bits, 256 colors or 16 colors
File size: Up to 320 dots × 240 lines (width × height)
2. Using the accompanying Logo App, convert it to lg format.
The image is converted into 4-level monochrome data.
[See also] 21, “LOGO APP”
LEADER.lg
3. Place the converted logo in the USB memory device.
• SDI OUTPUT option
USB memory device
└ LT 4610_USER
└ LOGO
└ LEADER.lg
• 12G option
USB memory device
└ LT 4610_USER
└ 12G_LOGO
└ LEADER.lg
