Mechanical Dimensions

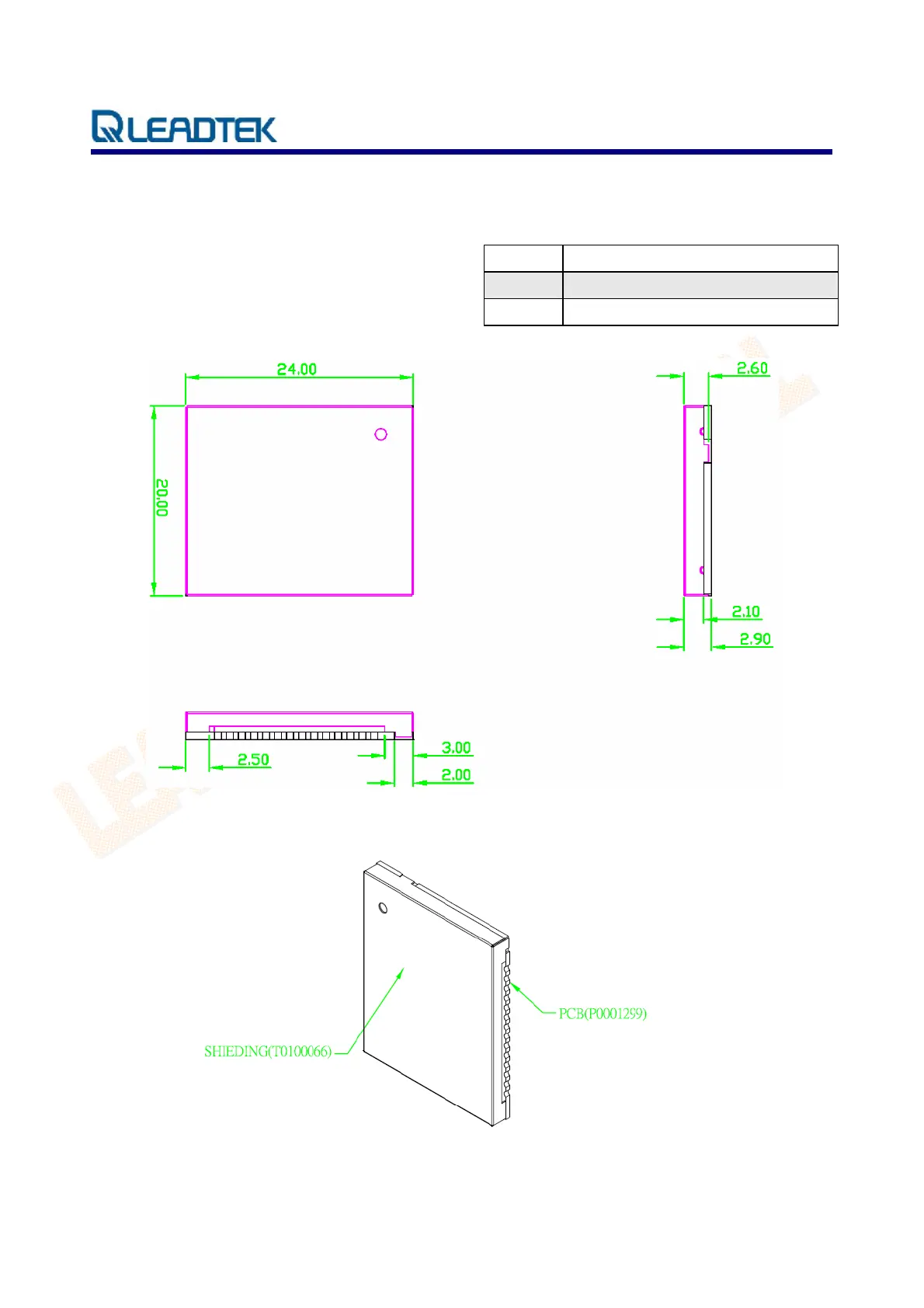

Outline Drawing
Tolerance:
Length 24.0 ± 0.4 mm
Width 20.0 ± 0.1 mm
Height 2.90 ± 0.1 mm
