2.8 RS232 Termination (TERM) Switch
The RS232 termination switch must be used to correctly terminate any RS232 control
connection as described in paragraphs 2.6.1 and 2.6.2.
2.9 HDMI Input ports
Standard HDMI input ports are provided for the purpose of connecting HDMI sources.
They are labelled 1 to 4.
All Leaf True systems accord with the HDMI 1.4 specification and includes support of
3D formats.
3 BREAKOUTS
A Breakout is the “receiving end” of the Leaf True system and one is required for each
connected “zone” of the Leaf True system.
The LB1 is the breakout that is designed for use with LHDMI44.
3.1 Local Power
Each LB1 breakout is required to be powered by its own (local) power supply and to be
connected via a Cat5e / Cat6 cable link from its HDBaseT port to the associated
HDBase T port on the LHDMI44. Use only the power supplies that are provided by Leaf
Audio for this purpose.

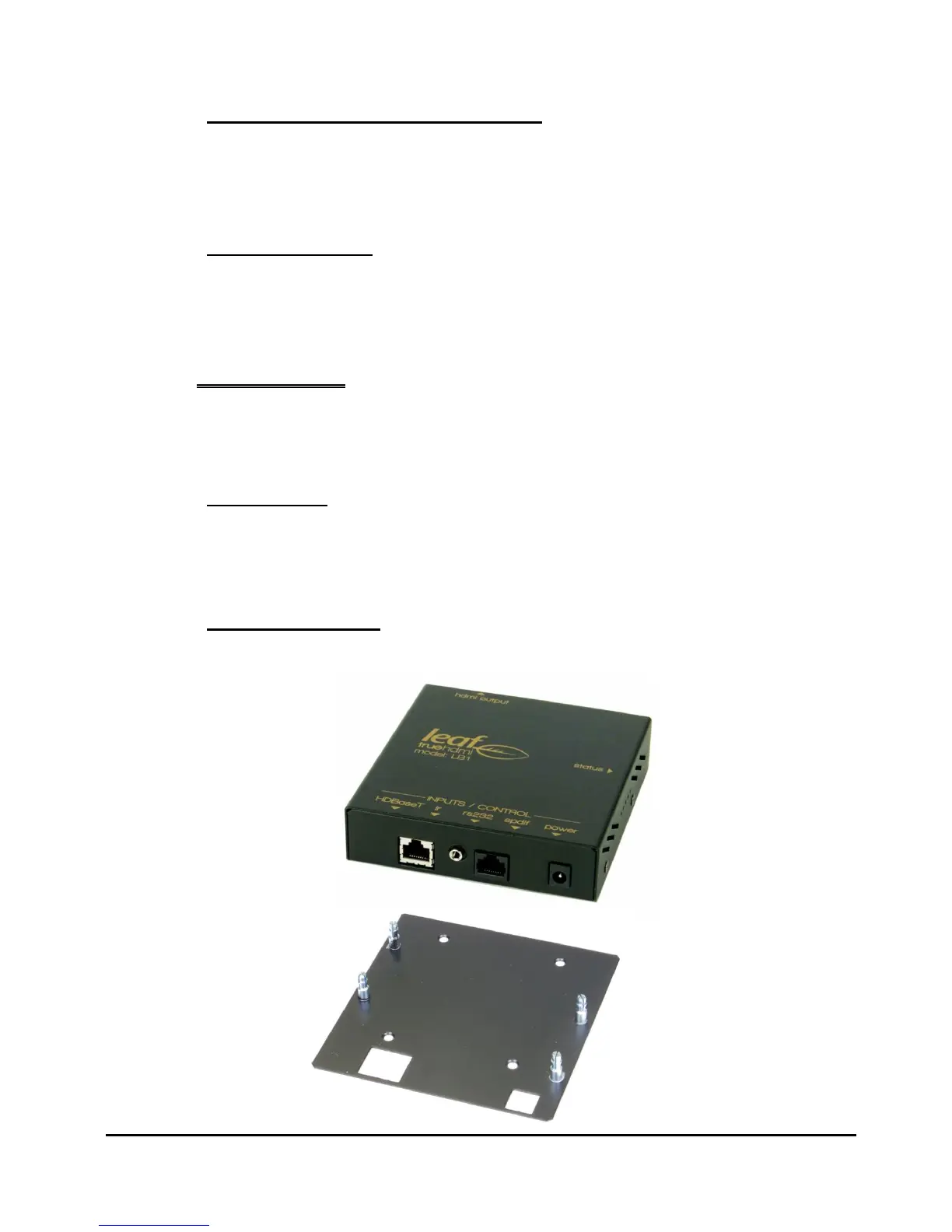

3.2 Mounting Bracket
Each LB1 is supplied with a mounting bracket which is designed to be attached to the
mounting surface and have the breakout clipped to it.
