4 BREAKOUTS
A Breakout is the “receiving end” of the Leaf True system and one is required for each
connected HDBaseT “zone” of the Leaf True system.
The Leaf LTB1E is the required breakout for this system.
4.1 Local Power
Each breakout (LTB1E) is required to be powered by its own (local) power supply and
to be connected via a Cat5e / Cat6 / Cat6a four pair cable link from its HDBaseT port
to the associated HDBaseT port on the LT2020E. Use only the power supplies that are
provided by Leaf Audio for this purpose.

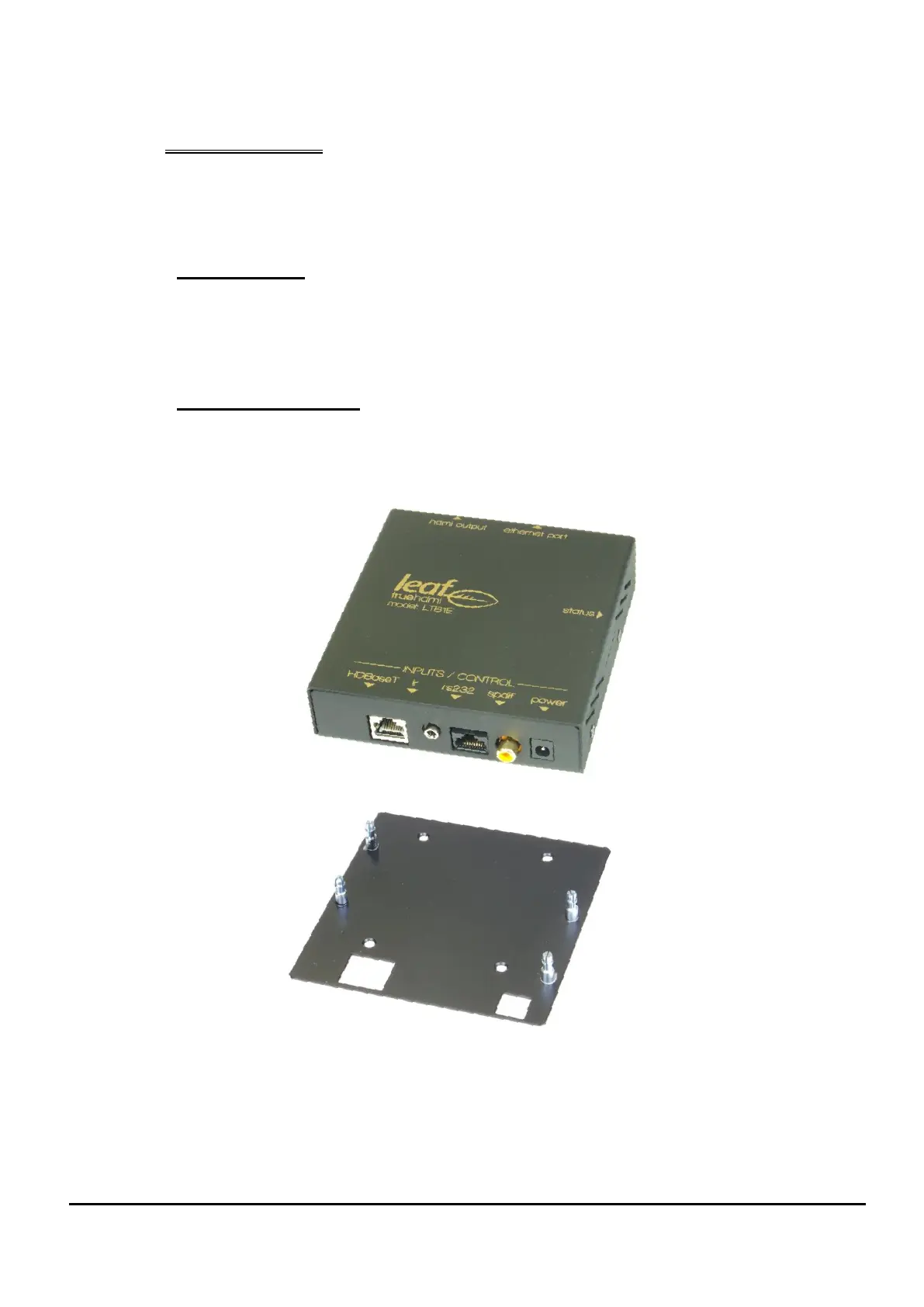

4.2 Mounting Bracket
Each LTB1E is supplied with a mounting bracket which is designed to be attached to
the mounting surface and have the breakout clipped to it.
