3 Rear panel layout:

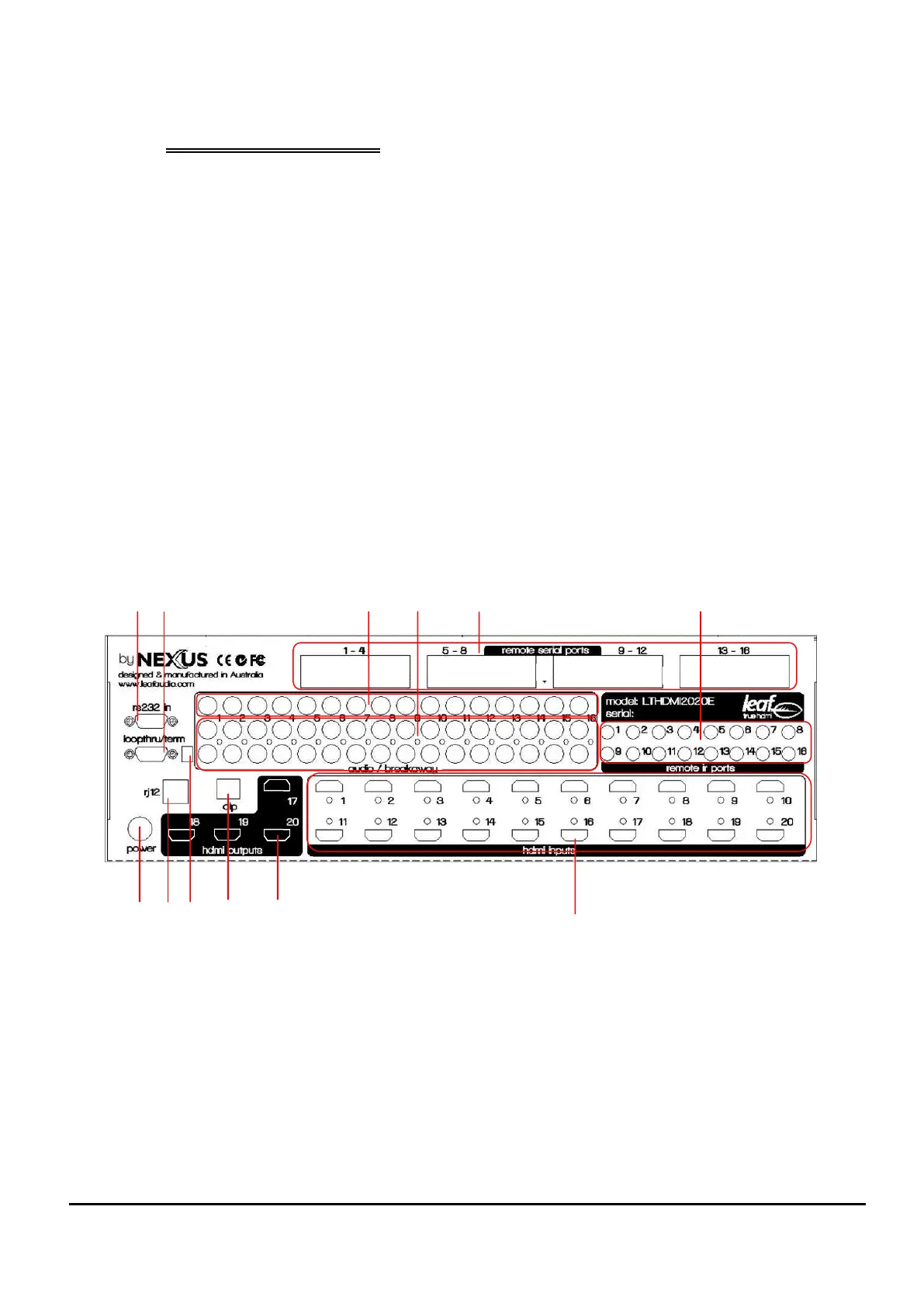

The LT2020E rear panel has the following fittings as depicted below.
1. 1 x RS232 serial control input connector
2. 1 x RS232 serial control out (loop thru) connector
3. 16 x RCA S/PDIF (digital coax) audio input sockets
4. 16 x pairs of RCA line level stereo output sockets
5. 16 x RJ45 type RS232 serial data ports
6. 16 x 3.5mm Tip Ring Sleeve sockets for connection of IR devices
7. 1 x 4 pin DIN Power connector receptacle
8. 1 x RJ12 type Leaf Control input port
9. 1 x RS232 Terminate switch
10. 1 x 4 way Dip Switch module
11. 20 x HDMI Input or source ports.
12. 4 x local HDMI output ports.
