2 Front Panel Layout

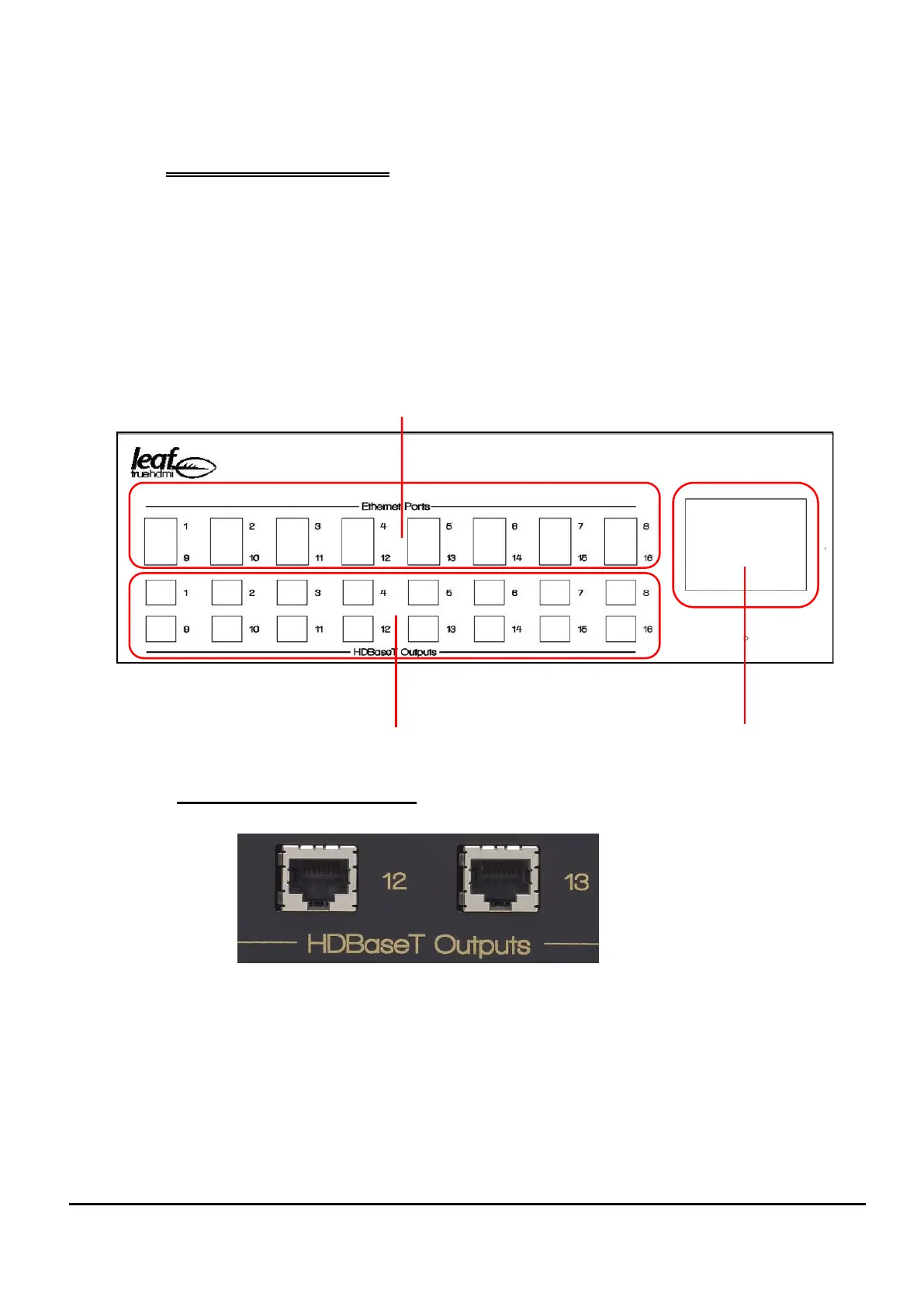

The LT2020E front panel is fitted with connectors, visual indicators and control
devices as depicted below.
1. 16 x HDBase T RJ45 type ports labelled HDBaseT outputs for connection to the
zone breakouts (LTB1E)
2. 16 x ethernet RJ45 type ports for connection of optional ethernet equipment
3. A Touch Screen control panel
2.1 HDBase T Connections
Each Leaf True breakout is connected to the interface by way of a single Cat5e/6/6a
four pair cable to the HDBaseT output or zone ports across the lower part of the front
panel.
LT2020E front panel
