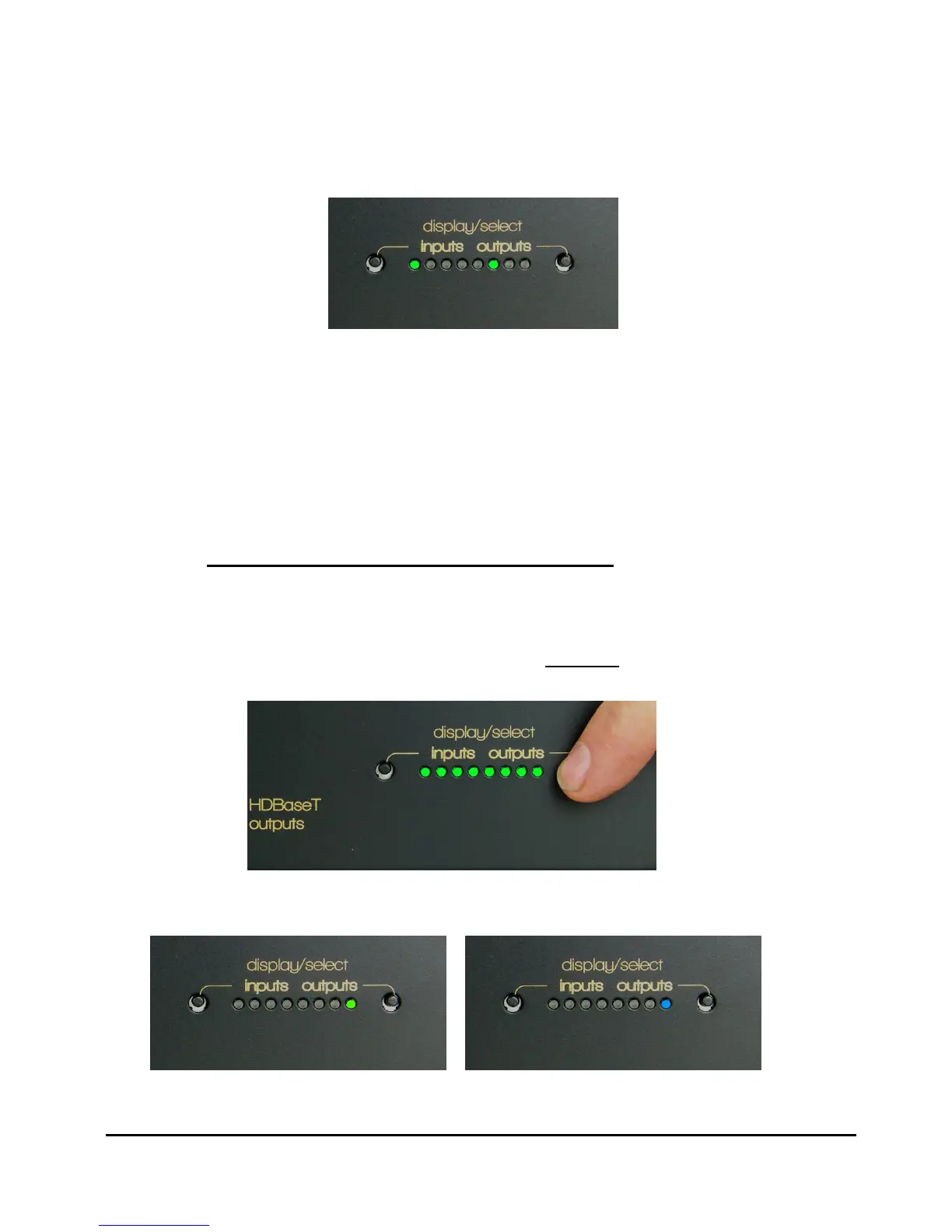

After a few seconds the switched selection will be made, and these LEDS will
change to Green.
Repeat this process for other input (source) to output (zone) selections as required.
Notes:
1. If neither button is pressed for an extended time (approx 10sec), the
display will revert back to display (green) mode, displaying the existing
input/output connections.
2. If in the second step above the left hand press button switch is pressed
until no Blue input LEDs are displayed, the connection will be cleared -
i.e. the output will be disconnected from the input.
5.4 Clear all switched selections / Global OFF
While this would typically be performed by RS232 commands from your control system,
it may also be performed manually by the following steps.
Press and hold the right hand press button switch for 3 seconds to clear all switched
selections and set the unit to standby mode.
Standby mode will be indicated by the right hand LED only, pulsing green / blue.
