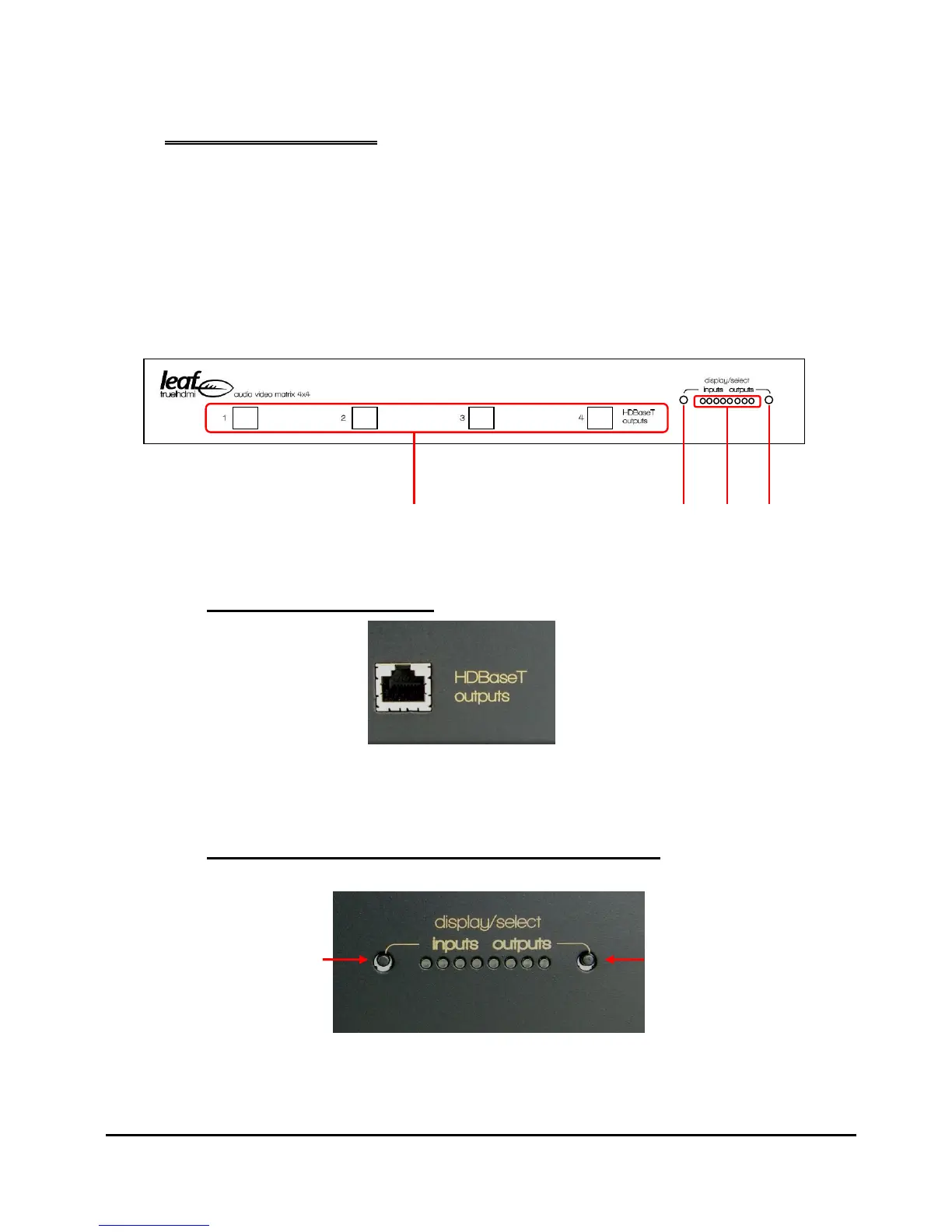

Front Panel Layout
The LHDMI66 front panel is fitted with connectors, visual indicators and control buttons
as depicted below.
1. 6 x HDBaseT RJ45 type ports labelled HDBaseT outputs for connection to the
zone breakouts (LB1)
2. 16 x LED indicators
3. 2 x press button switches
1.2 HDBase T Connections
Each Leaf True breakout is connected to the interface by way of a single Cat5e/6 cable
to the HDBaseT output or zone ports on the front panel.
1.3 Front Panel LED display and selection buttons
LHDMI66
16 multi colour (green / cyan / blue) Light Emitting Diodes (LEDs) and 2 press button
switches are fitted at the right hand end of the front panel.
LHDMI66 front panel
Left press button switch
Right press button switch
2
3
1
3
