EMERGENCY BATTERY CB
28 VDC INPUT
BATTERY OUTPUT
VDC
INVERTER
EMERGENCY
BATTERY
VDC INPUT
ATTITUDE GYRO
115 VAC OUTPUT 4.6 VAC OUTPUT
RH ESS DC BUS
INPUT
GEARS FLAPS SPOILERS AUX COMM

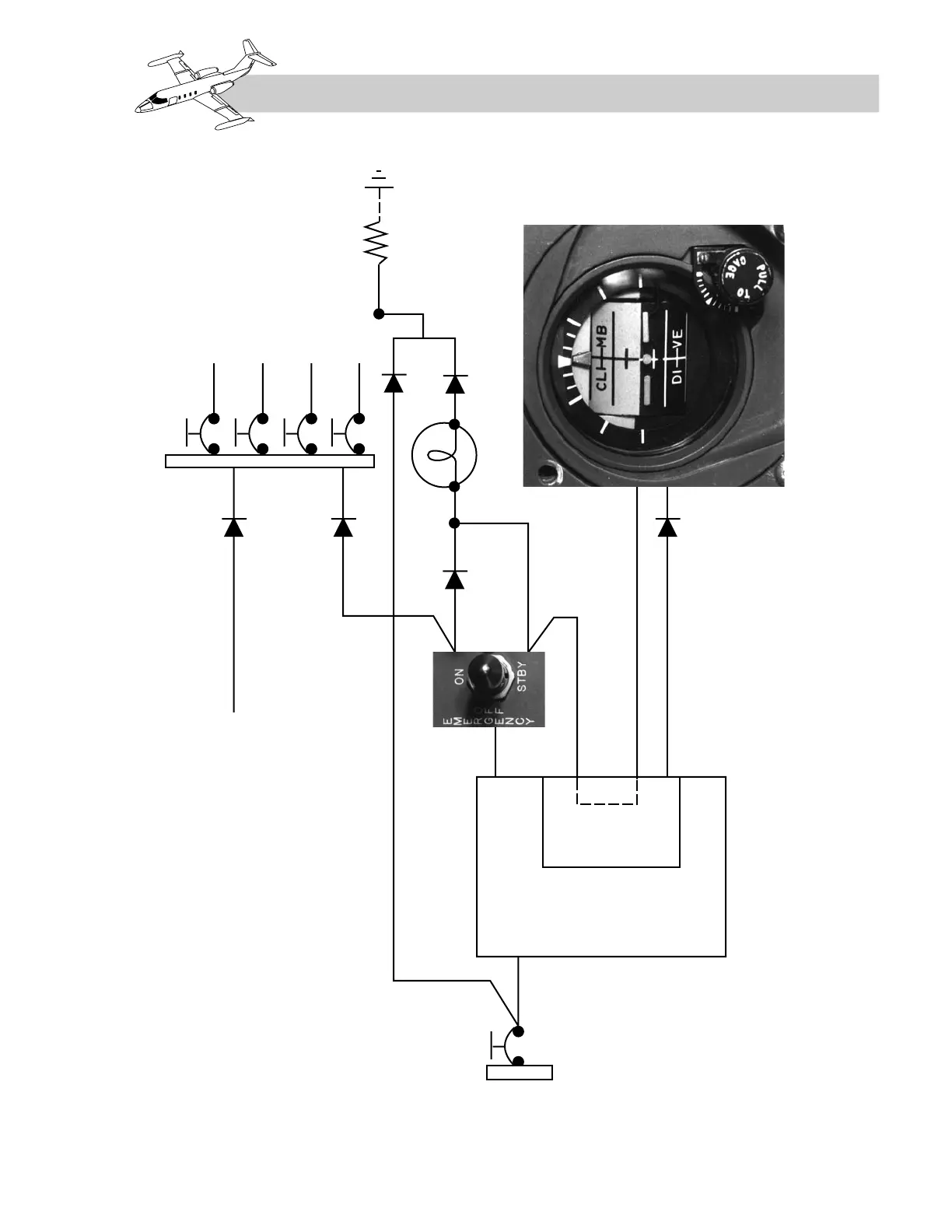

Figure 2-4. Emergency Battery No. 1 Switch and Schematic
