Learjet 25D - Danger Areas

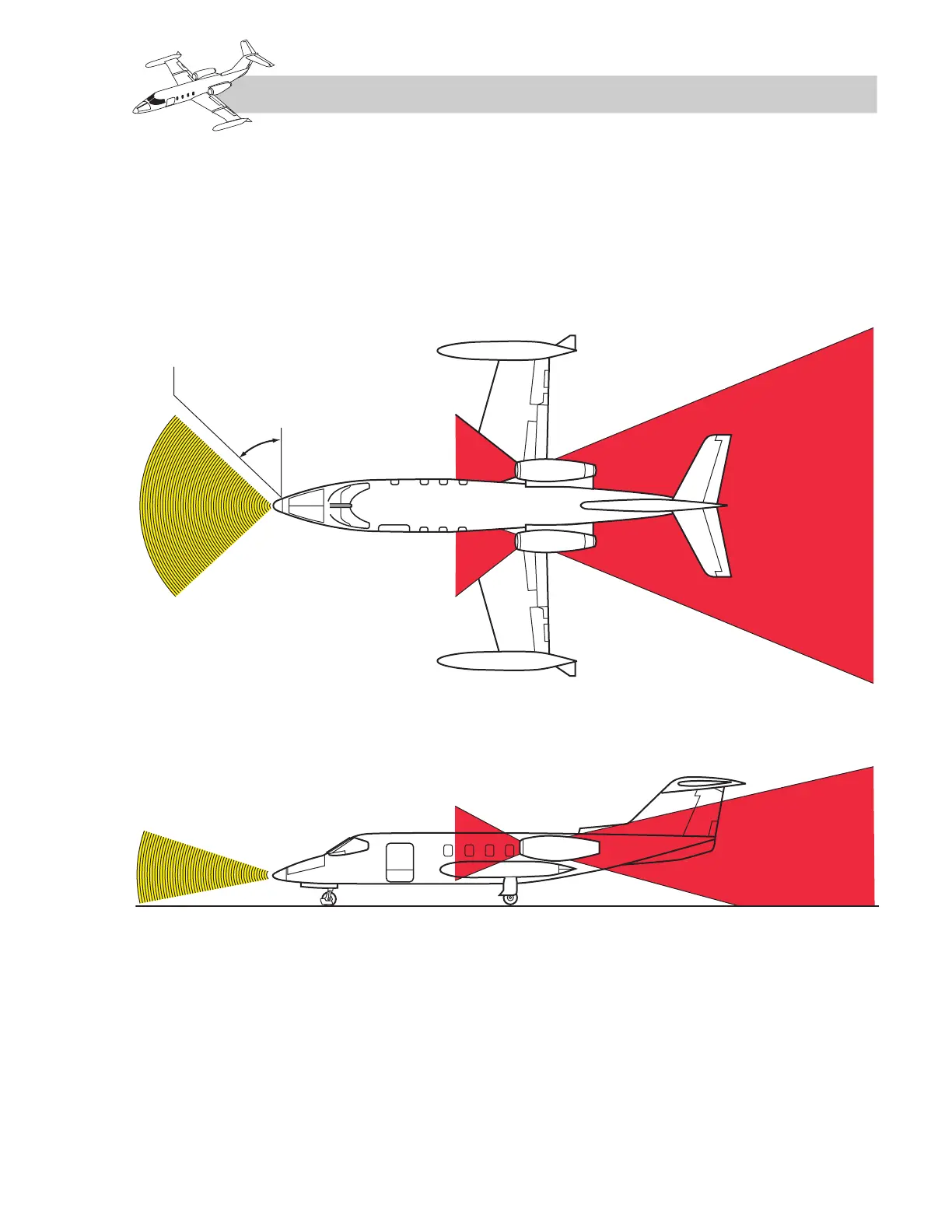

Figures 1-3 and 1-4 show the airplane turning
radii and the danger areas from the weather
radar and engine intakes and exhausts.
1-5
FOR TRAINING PURPOSES ONLY
45°
30 FT
30 FT
WEATHER
RADAR
OPERATING
12 FT
12 FT
600°F
600°F 150°F
40 FT
40 FT
150°F
WEATHER RADAR OPERATING
EXHAUST DANGER AREAS SHOWN
FOR IDLE RPM. VALUES APPROXIMATELY
DOUBLE FOR TAKEOFF RPM.
Figure 1-4. Danger Areas
