Learjet 25D - Page 187

10-11
FOR TRAINING PURPOSES ONLY
LEARJET 20 SERIES PILOT TRAINING MANUAL
FlightSafety
international
FLOAT
SWITCH
SUPPLY TANK
BLEED AIR
FROM RH ENGINE
CHECK
VALVE
CHECK
VALVE
PILOT’S WINDSHIELD
OUTLET
THREE-WAY
SHUTOFF
VALVE
FILTER
SHUTOFF
VALVE AND
PRESSURE
REGULATOR
OVERBOARD
DRAIN
OVERBOARD
DRAIN
BLEED AIR
FROM LH
ENGINE
PRESSURE-
RELIEF
VALVE
ALC AI
RADOME
OUTLET
ELECTRICAL
BLEED AIR (UNREGULATED)
REGULATED PRESSURE
LEGEND
ALCOHOL PRESSURE

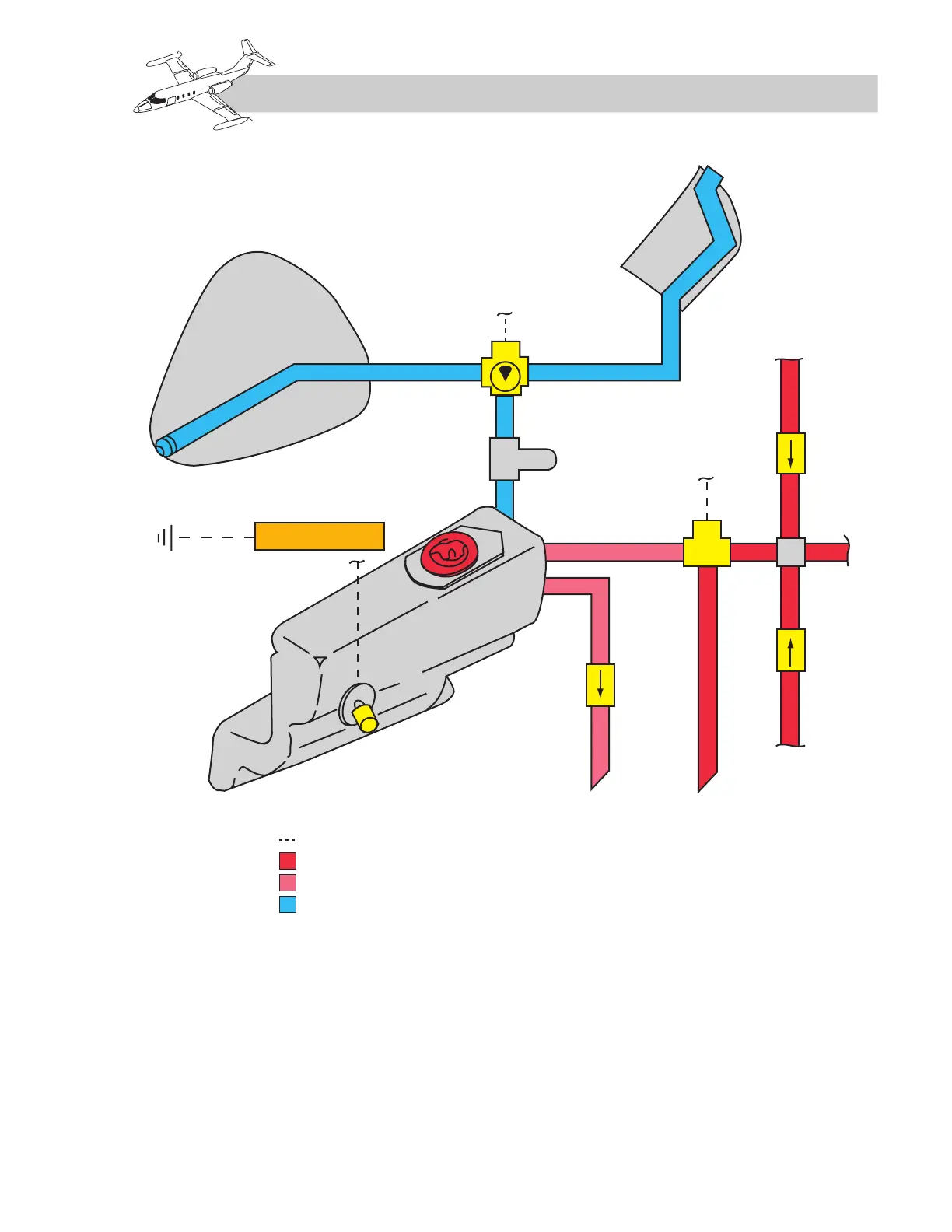

Figure 10-13. Alcohol System—SNs 24-350 and Subsequent and 25-227 and Subsequent
