Learjet 25D - Page 96

5-5
FOR TRAINING PURPOSES ONLY
LEARJET 20 SERIES PILOT TRAINING MANUAL
FlightSafety
international
WING
VENT
FLOAT
VALVE
VACUUM
RELIEF
FUEL
VENT
DRAIN
OVERBOARD
DRAIN
FLAME
ARRESTER
RAM-AIR
SCOOP
FLOAT
VALVE
(TYPICAL)
PRESSURE RELIEF
VACUUM
RELIEF
TO AMBIENT
VACUUM-
RELIEF
VALVE
1.5-PSI
RELIEF
VALVE
1.0-PSI
RELIEF
VALVE

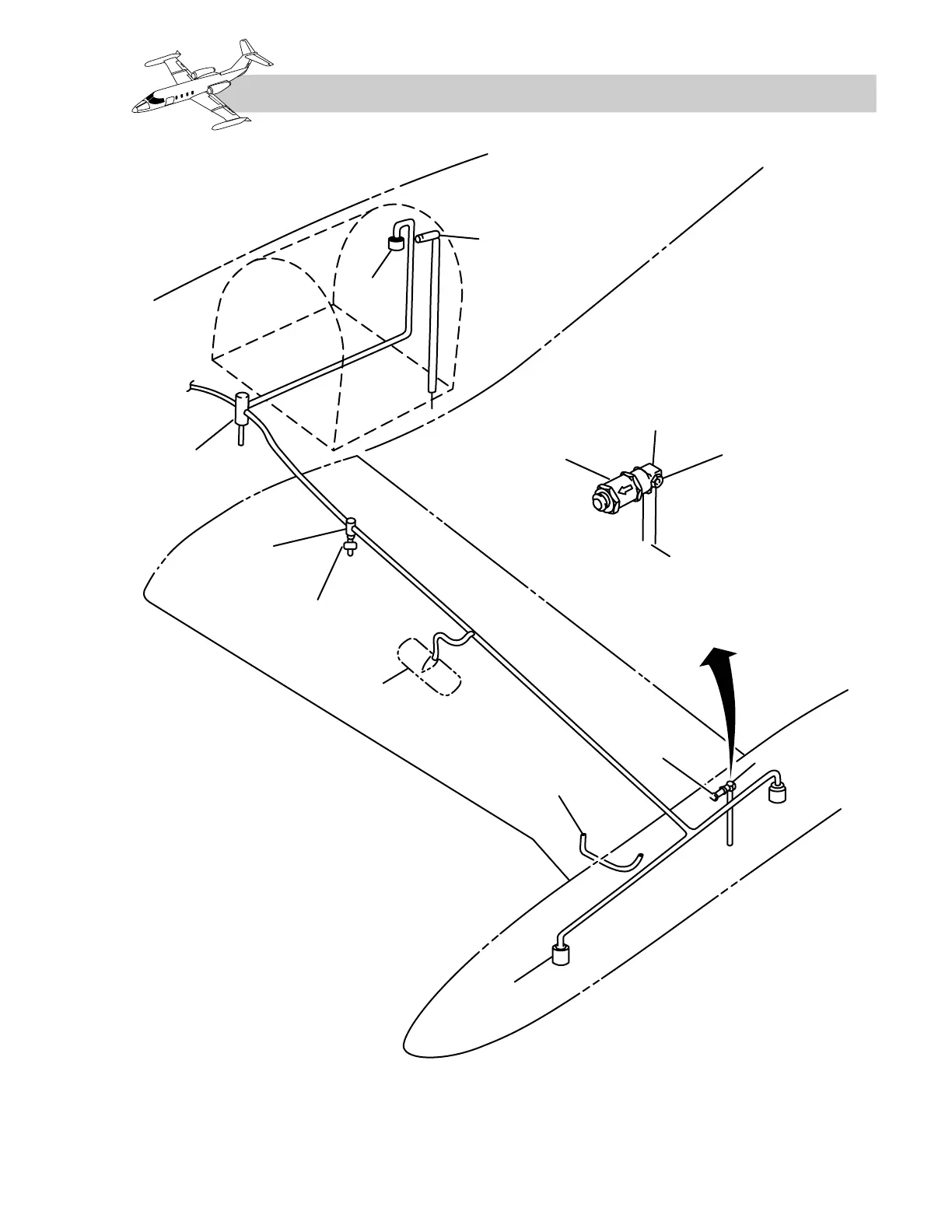

Figure 5-3. Fuel Vent System
