Locate the mast release pin (A) on the base
frame. Pull the pin outward and twist until the
pin is in the locked out position.

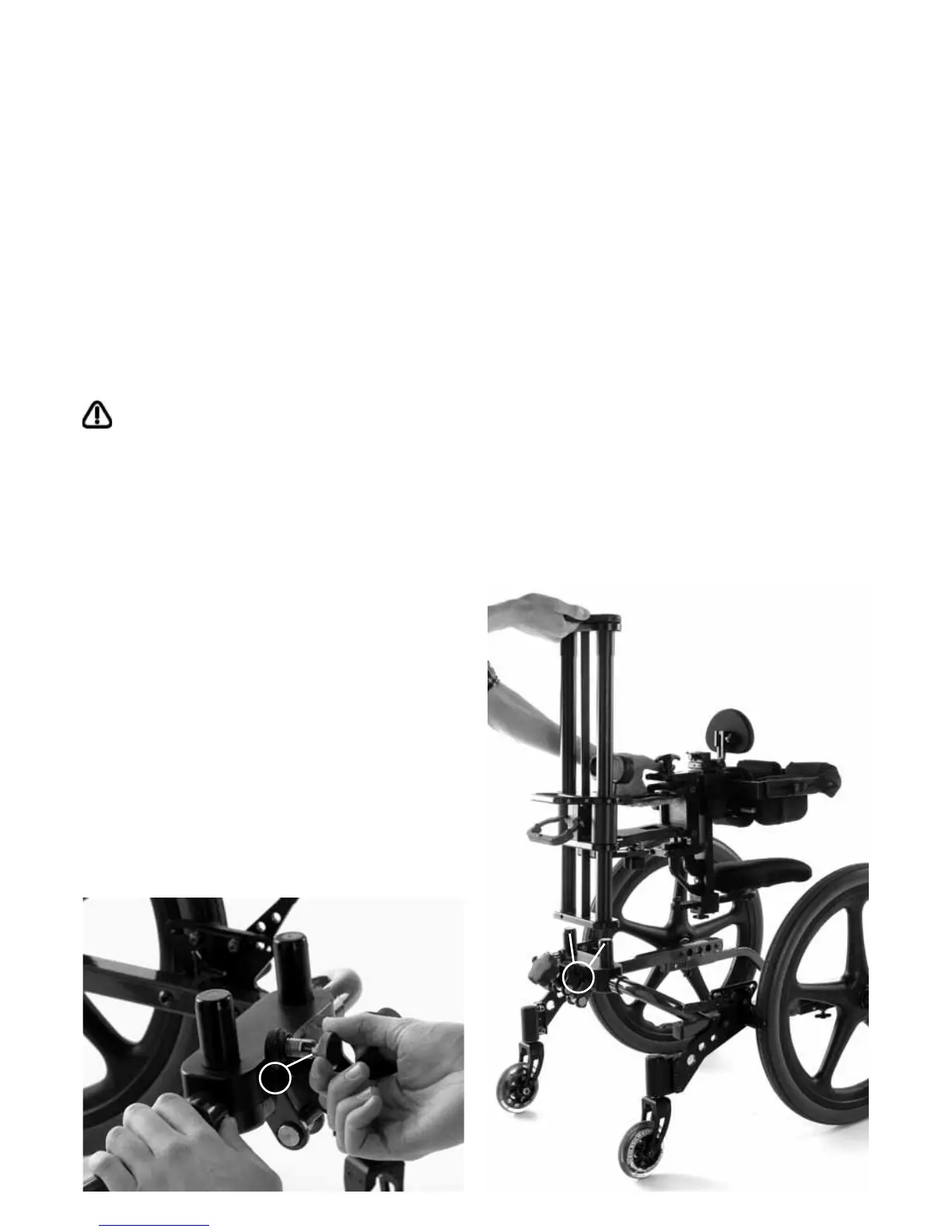

Place the mast assembly over the locator
pins (B) on the base assembly. Rotate the
locking pin until it engages into the mast
assembly. Ensure that the mast pin is fully
engaged and holding the mast firmly to the
base. If the mast lifts up from the base, twist
the retaining pin again until it snaps securely
into the mast.
You must ensure that the locking pin
is secured before the user is placed in
the frame.
7.3 Attaching the Mast
assembly
B
A
