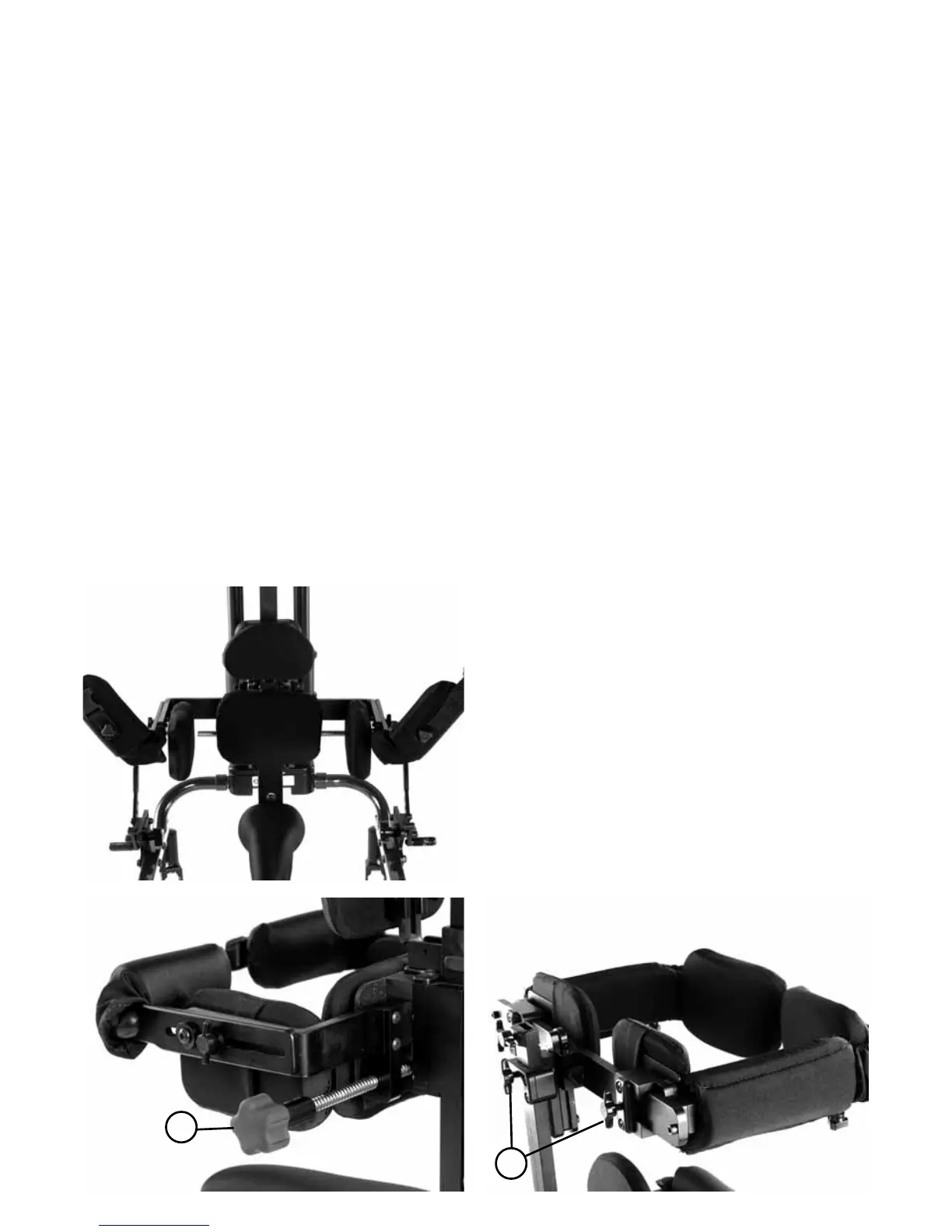

Flip the front hip support pads upward and
outward. Set the hip pad width to allow the
child’s hips to be easily placed between
the hip pads by turning the knob (A) located
on the outside of the hip pad assembly.
Turning the knob clockwise makes the
assembly wider while anti-clockwise narrows
the hip pad width.
Loosen the knobs (B) on the back side of the
upper body pads. Slide the pads outward
enough to allow the child to fit between
them. Slide all flip up pads forward to allow
for child placement and tighten adjustment
knobs to temporarily hold them in place.
8.3 Adjusting the hip
support width
8.4 Adjusting the Lateral
Chest System
A
B
