LECTRO 36VDC - Fig. 3-2, Connection Points for 60 Hz, 15 A Units

24
3.0 Power Supply, continued
745-573-B0-001 REV. A
B
C
A
D
E
B
C
A
D
E
B
C
A
D
E
A
F
A. AC output cable
B. Output voltage select
C. Battery power cable (Fig. 3-5, 3-6)
D. AC input
E. Temp. probe connector
A. AC output cables
B. Output voltage select
C. Battery power cable
D. AC input
E. Temp. probe connector
A. AC output fitting
(Note: Green w/yellow trace and solid
yellow cables may also be used for output
connection.)
B. Output voltage select
C. Battery power cable connection
D. AC input
E. Temp. probe connector
3.1 CPR
TM
Module Installation and Connection, continued
F. Generator Interface (Mini-Node)

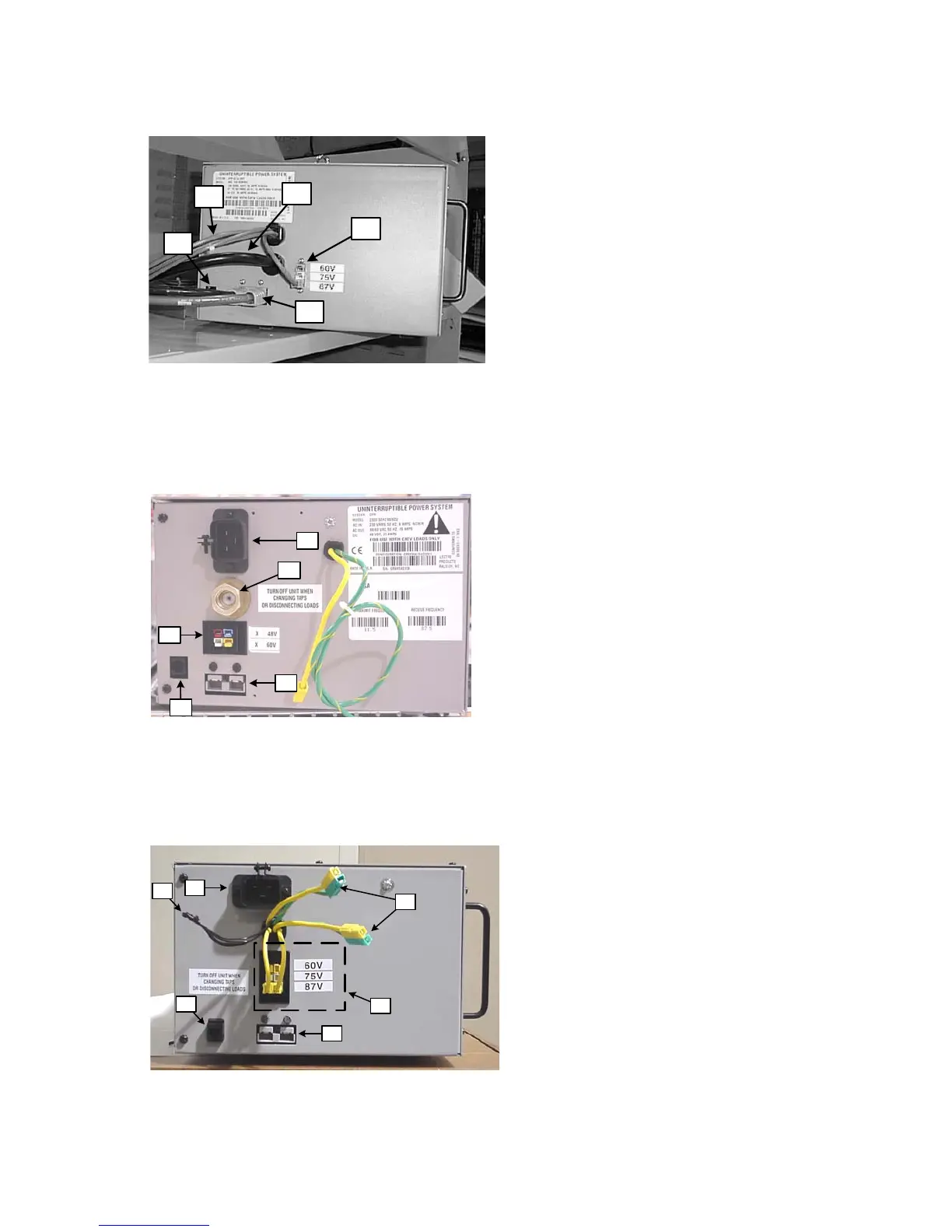

Fig. 3-4, Connection points for 60Hz, 24A units
Fig. 3-2, Connection points for 60Hz, 15A units
Fig. 3-3, Connection points for 50Hz Euro units
