Lectron VORTEX PLUG User Manual

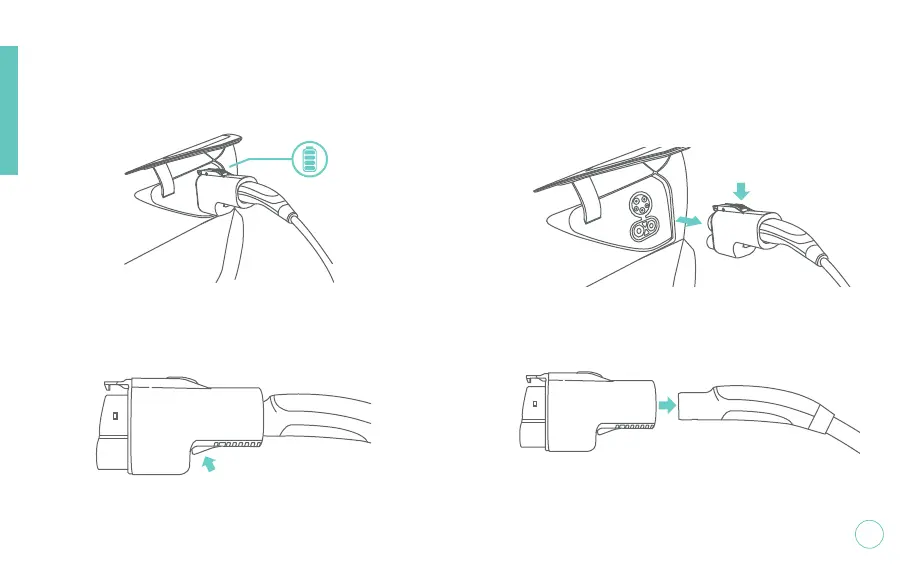

1. Only remove the Vortex Plug once charging
is complete.
2. Press the NACS unlock button and disconnect
the Supercharger coupler from the NACS
Supercharger inlet on the adapter.
4. Remove the adapter from the vehicle
charging port.
3. Press the CCS1 unlock latch on the adapter to
release the connection between the adapter
and the vehicle charging port.
8
DISCONNECTING THE VORTEX PLUG

Lectron VORTEX PLUG Specifications

General

Brand	Lectron
Model	VORTEX PLUG
Category	Adapter
Language	English

Summary

Introduction to the Vortex Plug

High Voltage Safety Warning

Handle with care and ensure proper connection before use. Risk of electric shock and serious injury.

Important Safety Instructions

Basic precautions should always be followed, including reading instructions and avoiding hazards.

What's Included

Adapter Contents

Lists the included NACS to CCS1 Adapter.

Parts Overview

Component Identification

Identifies the CCS1 Coupler, NACS Supercharger Inlet, CCS1 Unlock Latch, and NACS Unlock Button.

Before Use

Supercharger Compatibility Check

Ensure the Tesla Supercharger supports CCS1 charging before connecting.

Charging Time

Charging Time Factors

Varies by station, vehicle, environment, and battery temperature.

Temperature Monitoring

Adapter monitors temperature; power decreases above 95°F, shuts off at 140°F.

Connecting the Vortex Plug

Connect Adapter to Vehicle

Open EV port, press CCS1 latch, plug adapter into vehicle, release latch.

Connect Supercharger to Adapter

Press NACS unlock button and connect Supercharger coupler to adapter.

Initiate Charging Communication

Pause for vehicle/charger communication; check EV display for successful connection.

Begin Charging Process

Start charging according to station guidelines after successful connection.

Disconnecting the Vortex Plug

Confirm Charging Completion

Only remove Vortex Plug once charging is complete.

Disconnect Supercharger Coupler

Press NACS unlock button and disconnect Supercharger coupler from adapter.

Release Adapter from Vehicle

Press CCS1 unlock latch to release adapter from vehicle charging port.

Remove Adapter from Port

Remove the adapter from the vehicle charging port.

Troubleshooting

Supercharger Support Check

Ensure the Supercharger supports CCS1 vehicles.

Connection Integrity

Check for firm connections at both NACS and CCS1 ends.

Retry Connection Procedure

Safely unplug, then begin the connection process again.

Verify Charging Status

Check charging status on Supercharger and electric vehicle display.

Seek Further Assistance

If issues persist, email contact@ev-lectron.com for assistance.

Specifications

Get More Support

Customer Support Channels

Provides email, QR code, website, and manufacturing location for assistance.
