Appendix A: T7000 Connector Definitions
Refer to the following tables for connector pinouts.
Vehicle Power, Audio & I/O (VEH/SPKR/IO)

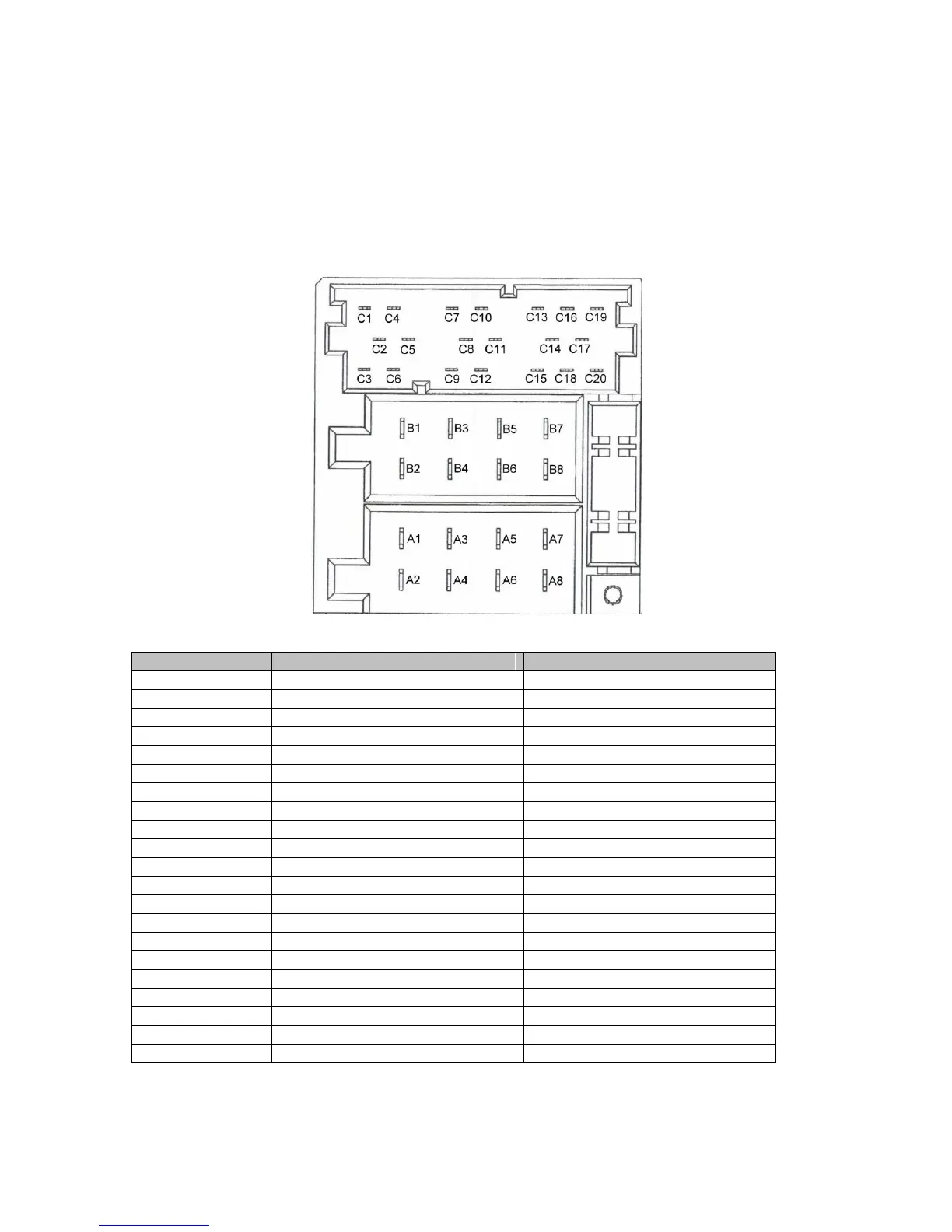

Vehicle Power/Speaker connector pin locations
Pin Number
Description
I/O
A1
Microphone +
Input
A2
Microphone -
Input
A3
Park
Input
A4
Accessory
Input
A5
Power Antenna
No Connect
A6
Dimming
Input
A7
VIN+ (Battery Power)
A8
VIN- (Battery Return)
B1
Speaker Output RR+
Output
B2
Speaker Output RR-
Output
B3
Speaker Output RF+
Output
B4
Speaker Output RF-
Output
B5
Speaker Output LF+
Output
B6
Speaker Output LF-
Output
B7
Speaker Output LR+
Output
B8
Speaker Output LR-
Output
C1
ACC CAN +
I/O
C2
Undefined
No Connect
C3
Undefined
No Connect
C4
Undefined
No Connect
C5
ACC CAN -
I/O
