MAIN ELECTRICAL HARNESS (1 OF 2)

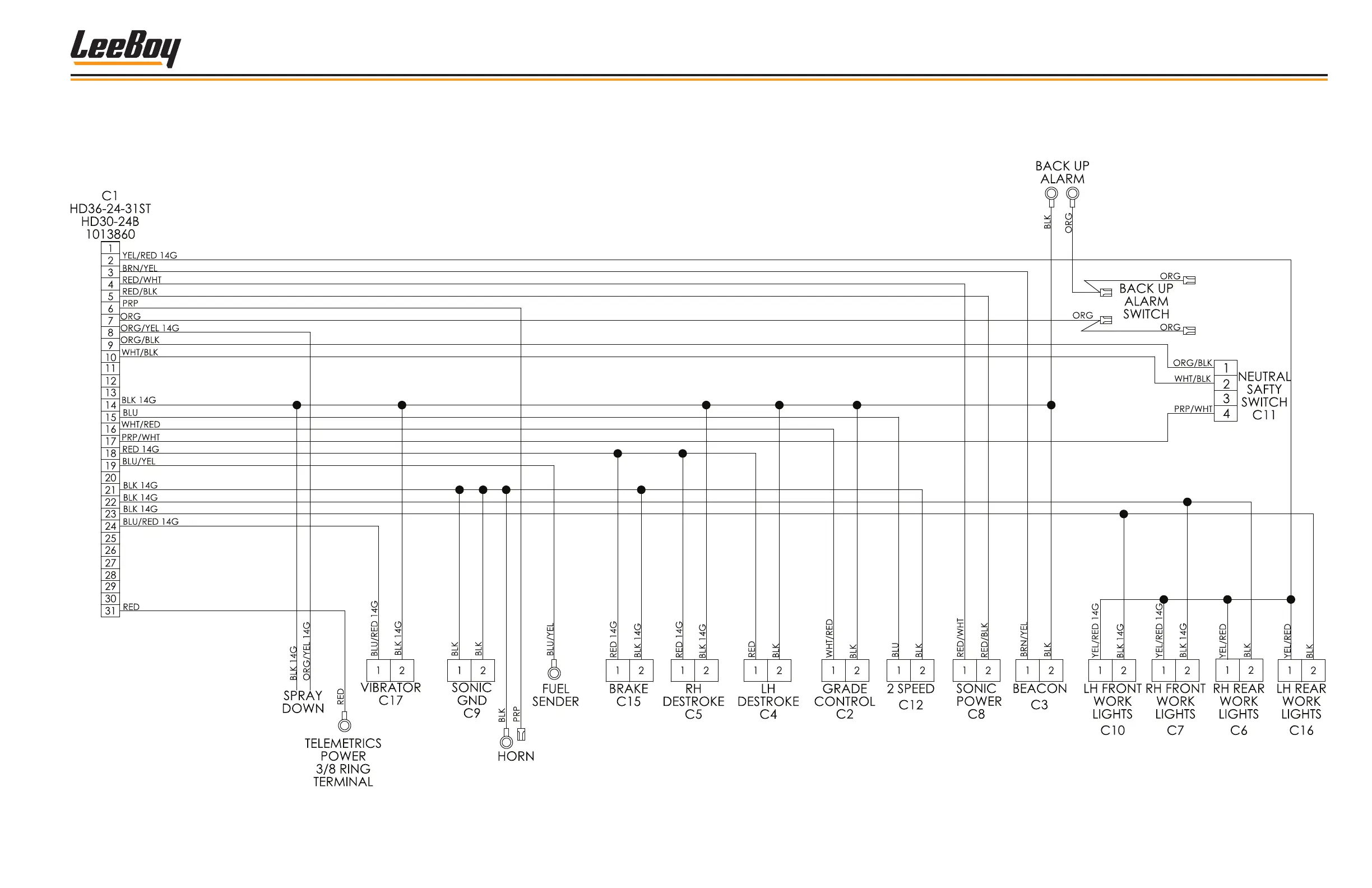

Schematic for Part # 1022939Schematic for Part # 1022939
Figure 6-3. Main Electrical Harness (1 of 2)
LeeBoy 1000G Tilt Hopper Paver 6-7
Schematics
