LeeBoy 1000G - CONTROL PANEL AND RIGHT SIDE COMPONENTS; CONTROLS - CONTROL PANEL

CONTROLS - CONTROL PANEL

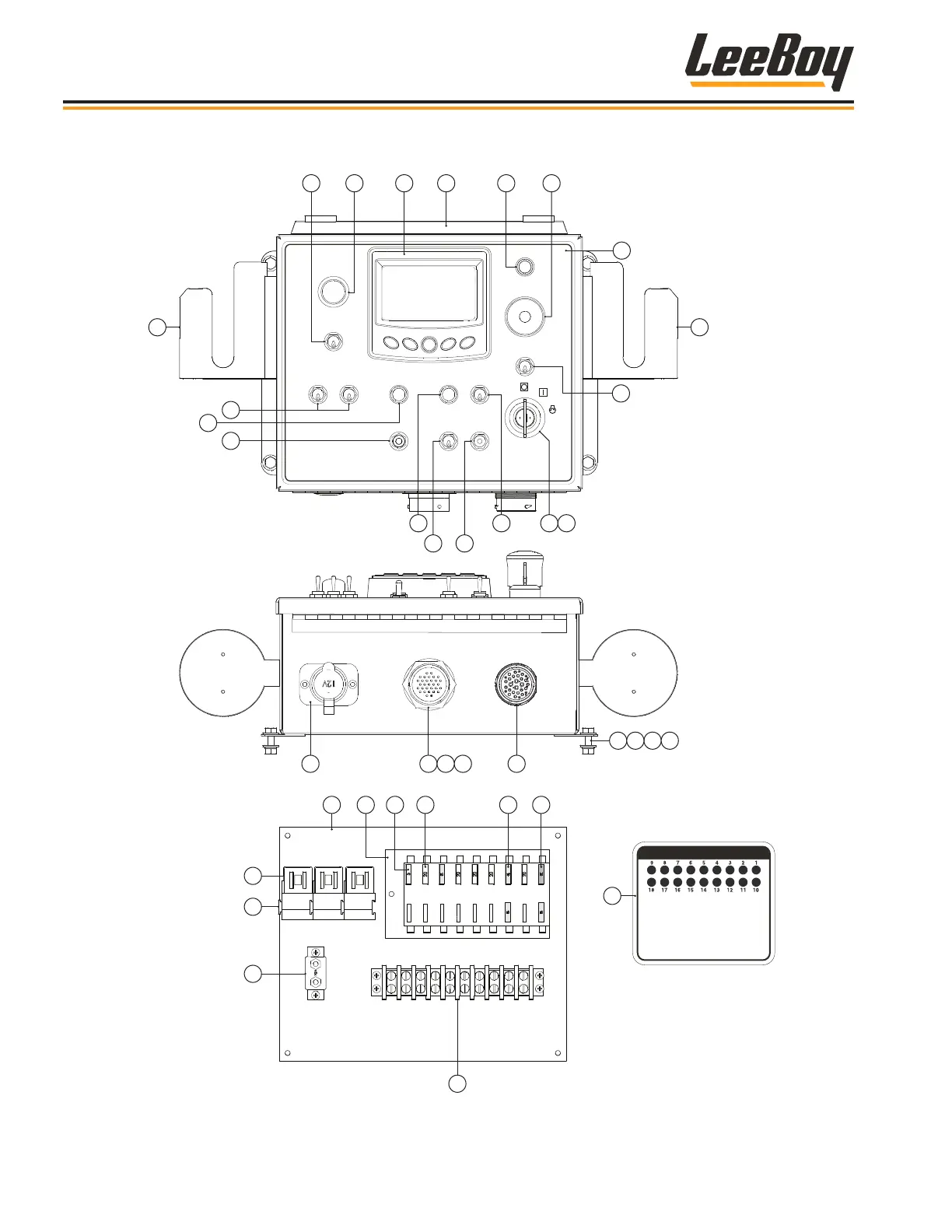

Figure 7-8. Controls - Control Panel
WAIT TO
START
IGNITION
SWITCH
1019841
OFF
START
RUN
EMERGENCY STOP
(TWIST TO RELEASE)
HORN
GRADE
CONTROL
OFF SLOPE
PAUSE/BRAKE
ON
LEFT
AUGER
AUTO
RIGHT
AUGER
OFF
PAUSE/BRAKE
OFF
OFF
ON
OFF
BEACON
SPRAY
DOWN
LOW GEAR
ONLY
HIGH
GEAR
WORK LIGHTS/
BEACON
OFF
LOW
GEAR
HIGH GEAR
WHEN LIT
VIBRATOR
OFF
ON
1021978
Work Lights / Beacon
Grade Control
2-Speed
Backup Alarm
Spray Down Pump
Horn
Augers
Pause / Brake
Plus One
1.
2.
3.
4.
5.
6.
7.
8.
9.
Neutral Safety
Empty
Empty
Vibrator
Empty
Empty
Empty
Empty
Empty
10.
11.
12.
13.
14.
15.
16.
17.
18.
FUSE DIAGRAM
1
19
2 124 11
7
14 15 1716 18
23
4 9 10
4 8
3
4
4
13
3434
6
20
29
21
22
30 32 3331
5
24 25 27 26 28
Illustrated Parts List
LeeBoy 1000G Tilt Hopper Paver7-24
