LEGRAND EASYKIT Essential User Manual

20

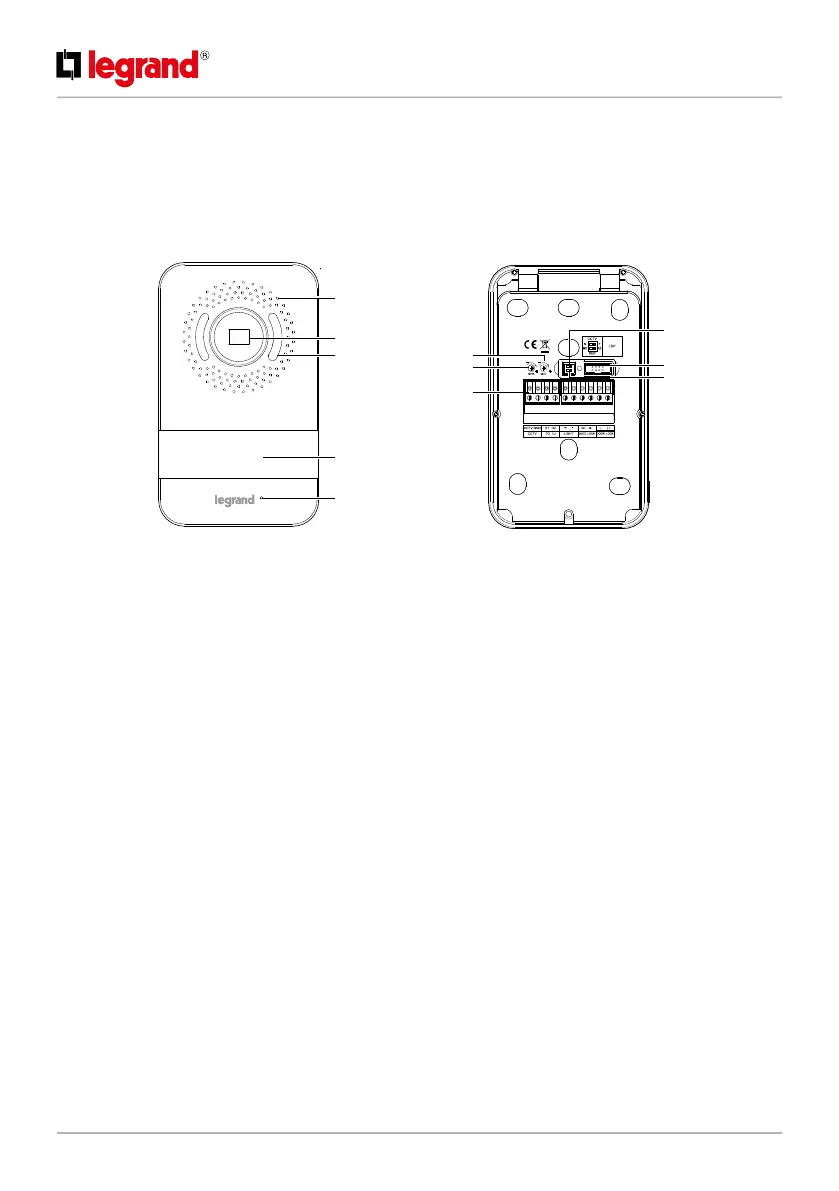

1 - Speaker
2 - Camera
3 - Viewing field lighting LED
4 - Call pushbuttons
5 - Microphone
6 - Removable connection clamps
• CCTV anaalog camera
• D1 - D2 Internal unit
• Gate lock (G+/G-): 12/24 V AC/DC, 1A
• Door lock (L+/L-): 18 V, 4 A impulsive, 250mA
holding current
7 - Speaker adjustment
8 - Microphone adjustment
9 - Dip switch for CCTV camera configuration
Dip switch 1 OFF = No additional CCTV
camera (N)
Dip switch 1 ON = With additional CCTV
camera (Y)
10 - Not used
11 - Dip switch for entrance panel configuration
Dip switch 2 OFF = Main device (MD)
Dip switch 2 ON = Additional device (AD)
1 - Lautsprecher
2 - Kamera
3 - LED Beleuchtung des Aufnahmefelds
4 - Ruftasten
5 - Mikrophon
6 - Abnehmbare Anschlussklemmen
• CCTV Analogkamera
• D1 - D2 Hausstation
• Torschloss (G+/G-): 12/24 V AC/DC, 1A
• Türschloss (L+/L-): 18 V, 4 A impulsiv, 250mA
Erhaltung
7 - Einstellung des Lautsprechers
8 - Einstellung des Mikrophons
9 - Dip-Schalter zur Konfiguration der CCTV-Kamera
Dip-Schalter 1 OFF = keine zusätzliche CCTV-
Kamera (N)
Dip-Schalter 1 ON = mit zusätzlicher CCTV-
Kamera (Y)
10 - Nicht verwendet
11 - Dip-Schalter zur Konfiguration der Türstation
Dip-Schalter 2 OFF = Hauptvorrichtung (MD)
Dip-Schalter 2 ON = Zusätzliche Vorrichtung (AD)
2
1
3
5
4
ON
9
8
7
6
10
11
