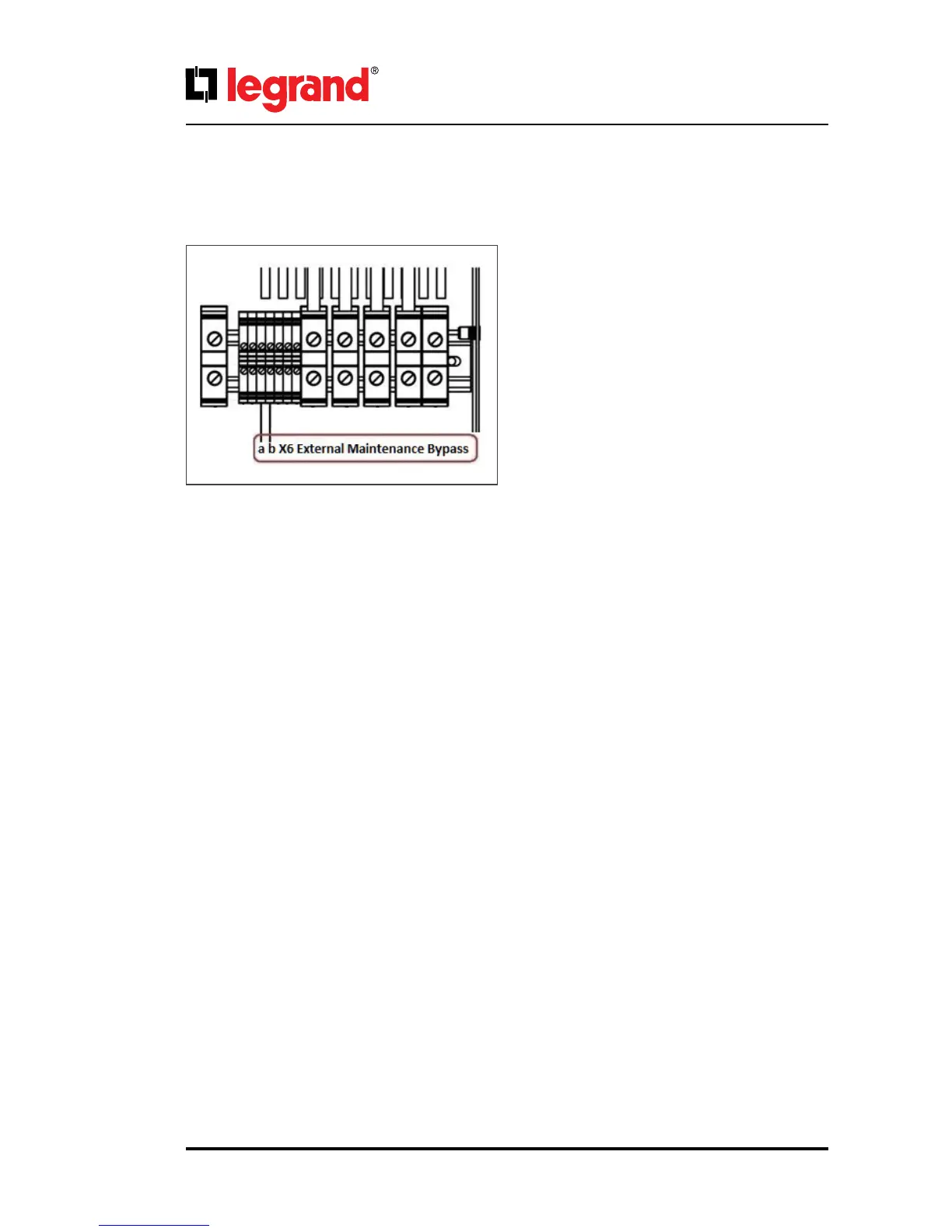

5.3.1.6. External Maintenance Bypass Connection
If External Maintenance Bypass would be used;
connect normally open auxiliary contact of Exter-
nal Maintenance Bypass MCCB on the distribution
panel to terminals a/X6 and b/X6 on UPS.
