Over SNMP communication, battery test can be started or current test can be cancelled. UPS can be shut-
down or stand-by (stand-by duration is adjustable). Alarms can be discarded.

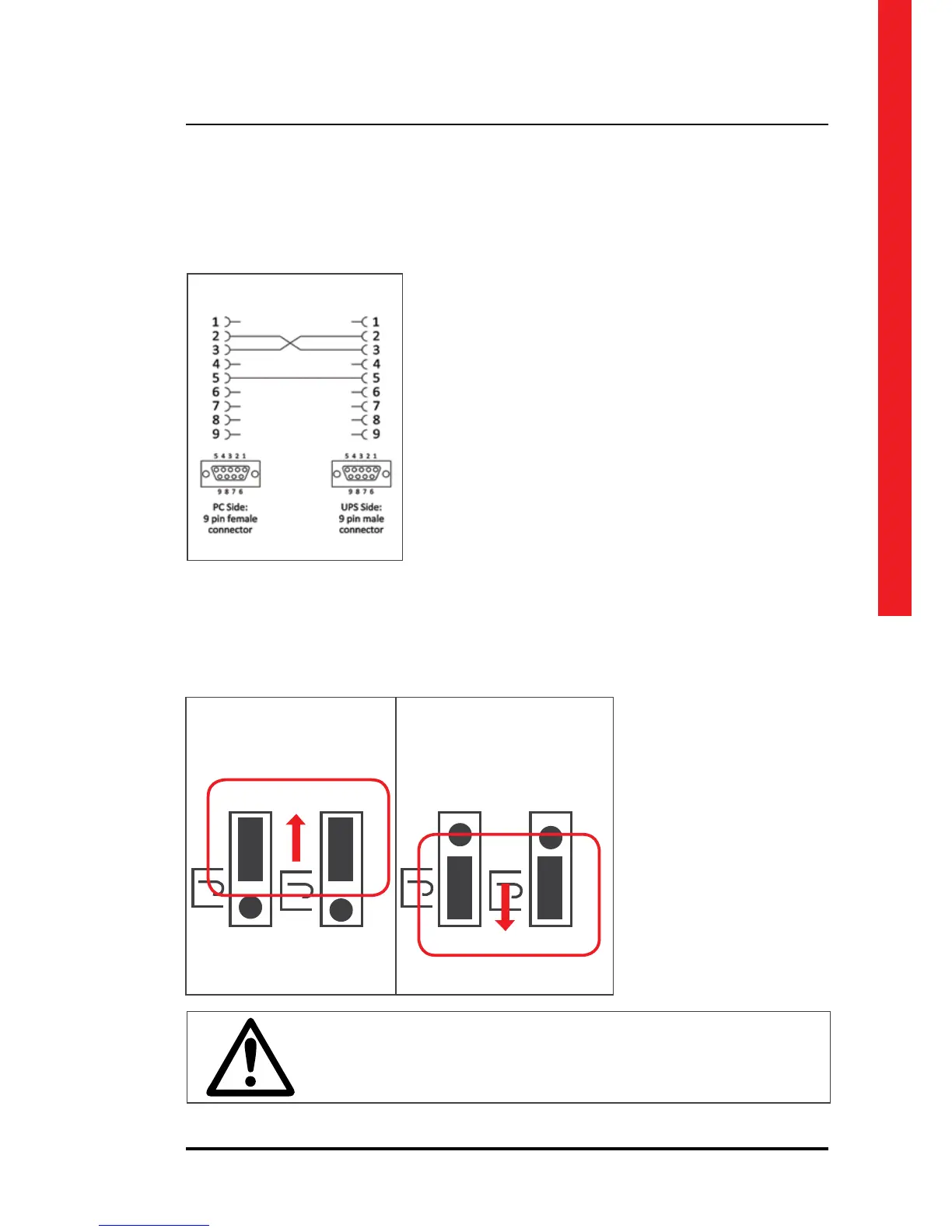

If Serial Communication cable is needed, it can be produced
according to the pin conguration described at side.
If the jumpers are at the upper side for internal SNMP conguration, RS232 and
RS485 Serial Communication are disabled.
If the jumpers are at the lower side for RS232 or RS485 conguration, internal SNMP
is disabled.
SNMP Jumper (J2 – J3): If internal
SNMP would be used, 2 jumpers
should be moved to upper side.
If RS232 or RS485 would be used, 2
jumpers should be moved to lower
side.
6.2. Internal SNMP Communication
Internal SNMP card can be installed into SNMP slot placed at the front of UPS. As soon as SNMP
installed, RS232 port would be disabled.
Internal SNMP has the same features as External SNMP; refer to Section 8.1 for more information.
SNMP RS232 - RS485
SNMP SNMP
RS232
RS485
RS232
RS485
J2 J2
J3 J3
