LEHLE P-SPLIT III AS A COMPACT PASSIVE DI BOX
The LEHLE P-SPLIT III can be used as a
passive DI box.
Balanced or unbalanced signals from the
ISO output can be fed.
A TRS/XLR adapter will be needed if you
want a balanced signal for an XLR input
(please also see “Balanced signal rout-
ing” on page 7).
HOW TO DO THIS
1. Connect your active instrument or the
output from a preamp or buer to the in-
put (1) of the LEHLE P-SPLIT III.
2. Connect your amp to the DIR output
socket (2).
3. Connect the ISO socket (5) to the input
of your mixer or stage box.
4. Use the phase switch (3) to find out
which setting sounds better to you.
5. Use the ground lift switch (4) to deter-
mine which position eliminates the most
background noise.
6. There you go!

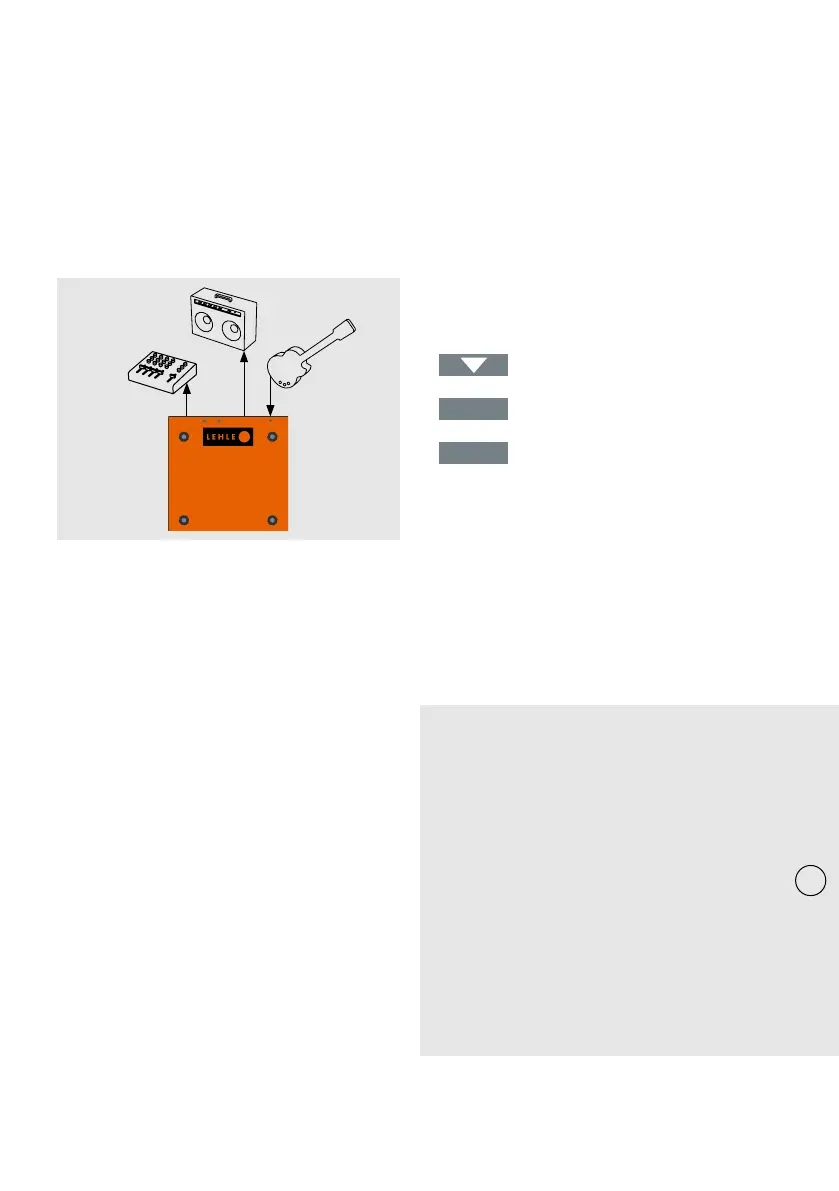

DEVICE CONNECTION
DIR
ISO
MADE IN GERMANY
P-SPLIT
Input
Output
Instrument (active)
Amplifier
Output Input mixer,
stage box
ISO
DIR
The signal from a passive pickup can-
not be split to an amp and mixer without
negative eects on your sound, since bal-
anced inputs are usually low impedance.
The LEHLE P-SPLIT III functions excellently
as a neutral splitter and as a high-quality
DI box with instruments which have ac-
tive pickups, and/or when another buer,
such as the LEHLE SUNDAY DRIVER II is
positioned between the instrument and
the input of the LEHLE P-SPLIT III.
!
