We recommend the use of a buer be-
tween the instrument and the input of
the LEHLE P-SPLIT III to convert the high-
impedance instrument signal to a low-
impedance signal in cases in which your
sound card or DAW has no high-imped-
ance input (Hi-Z) and you wish to record
the dry signal from your passive pickups.
The LEHLE SUNDAY DRIVER II is the per-
fect solution for this task.
DIR
ISO
MADE IN GERMANY
P-SPLIT
MADE IN GERMANY
SUNDAY DRIVER
S
D
/
DI
You can, of course, also use a balanced
input on your sound card or DAW to
record the dry signal. In this case, it’s a
good idea to take a balanced signal from
the ISO output of the LEHLE P-SPLIT III
(please also see “Balanced signal rout-
ing”, page 7).

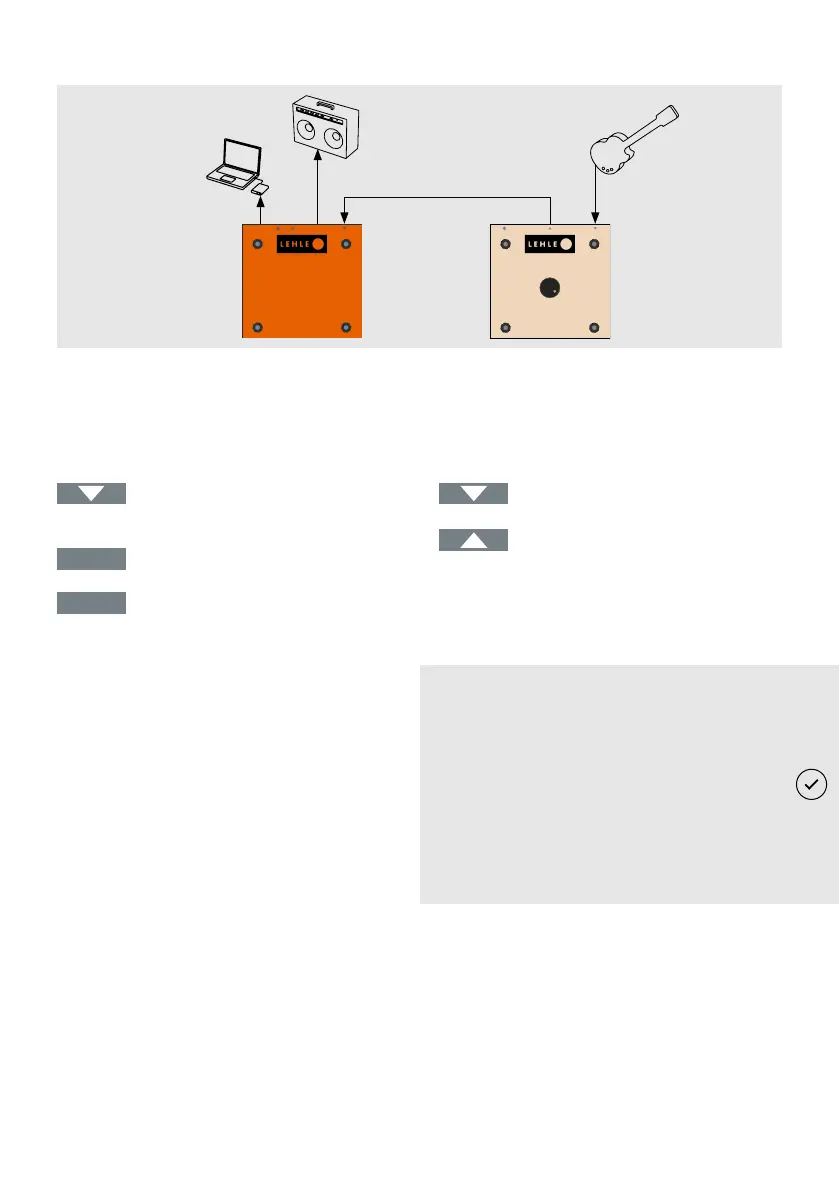

DEVICE CONNECTION
LEHLE P-SPLIT III
DEVICE CONNECTION
LEHLE SUNDAY DRIVER II
Input
Output
Input
Output LEHLE
SUNDAY DRIVER II
Amplifier
Instrument (passive)
Output
Output
Sound card Low-Z
Input
LEHLE P-SPLIT III
ISO
DIR
