Leibinger Jet 3 - Page 322

Group 8 Job editor Page 320
Release R2.0 LEIBINGER JET3

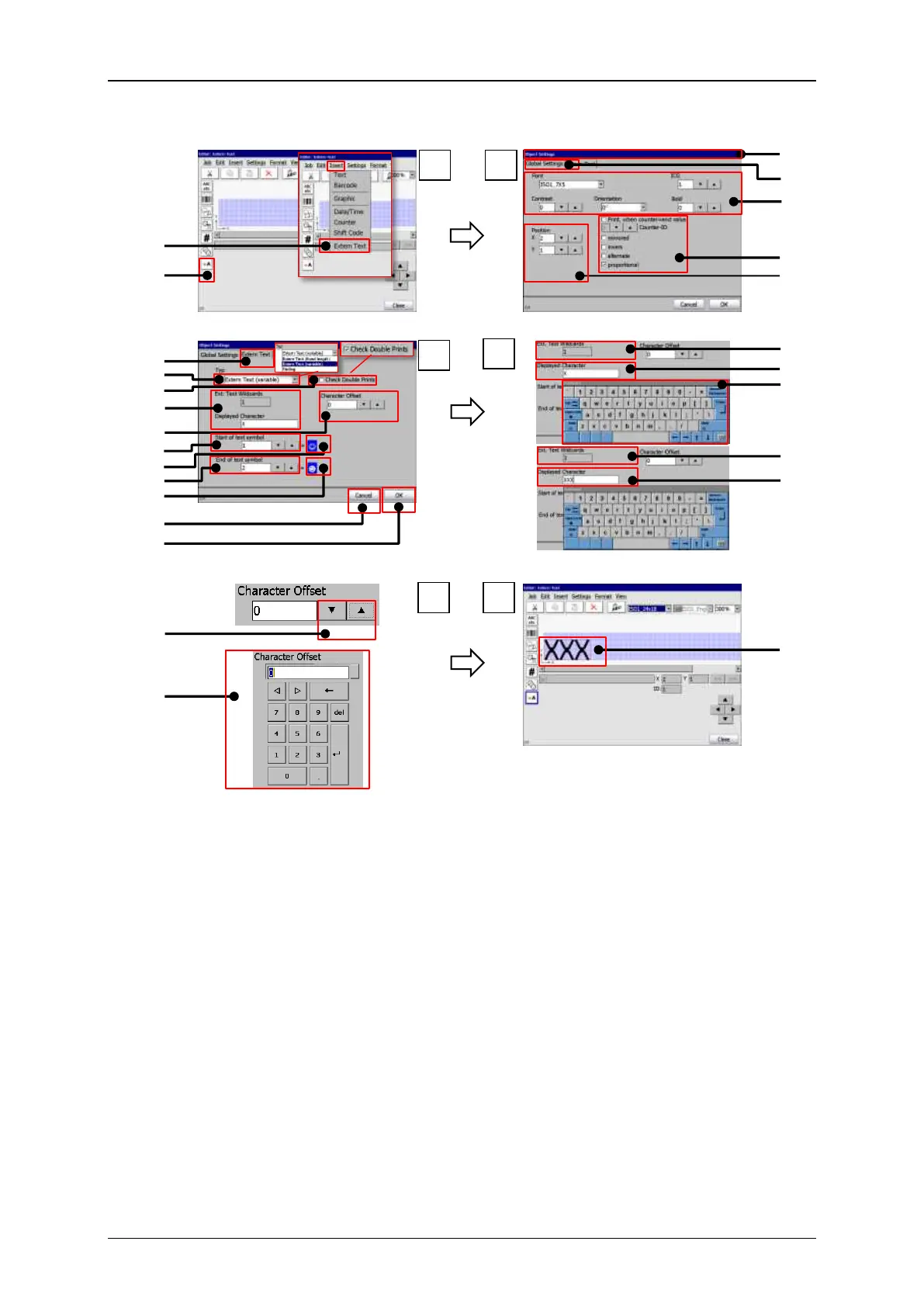

Figure 164
Extern Text variable length – Object settings
1 – Menu item <Extern Text>
14 – Respective character to the decimal
ASCII value of the <Start symbol>
2 – Direct button <Extern Text>
15 – Decimal ASCII value<End symbol>
3 – Dialog box <Object settings>
14 – Respective character to the decimal
ASCII value of the <Start symbol>
4 – Tab <Global settings>
17 – Button <OK>
5 – Font settings
18 – Button <Cancel>
6 – Font option
19 – Indicator <Wildcards> 1 Wildcard
7 – Position indicator/setting
20 – Input <Wildcards>3 Wildcards
8 – Tab <Extern Text>
21 – Keyboard
9 – Drop-down list <Type>
22 – Indicator <Wildcards> 3 Wildcards
10 – Settings <Wildcards>
23 – Input <Wildcards>
11 – Checkbox <Double Prints>
24 – Offset setting with arrow keys
12 – Offset indicator/setting
25 – Offset setting with numeric keypad
13 – Dec. ASCII val. <Start symbol>
26 – Extern Text object in the job editor
