Group 6 Operation Construction/Structure Page 61
Release R2.0 LEIBINGER JET3
6. Operation
6.1 Construction/Structure of the device
The high-performance LEIBINGER JET3 is manufactured of a solid two parts stainless
steel cabinet. Due to the two parts construction you will get a thermal separation between
the hydraulic- and electronic section. The device consists of the following main
components.

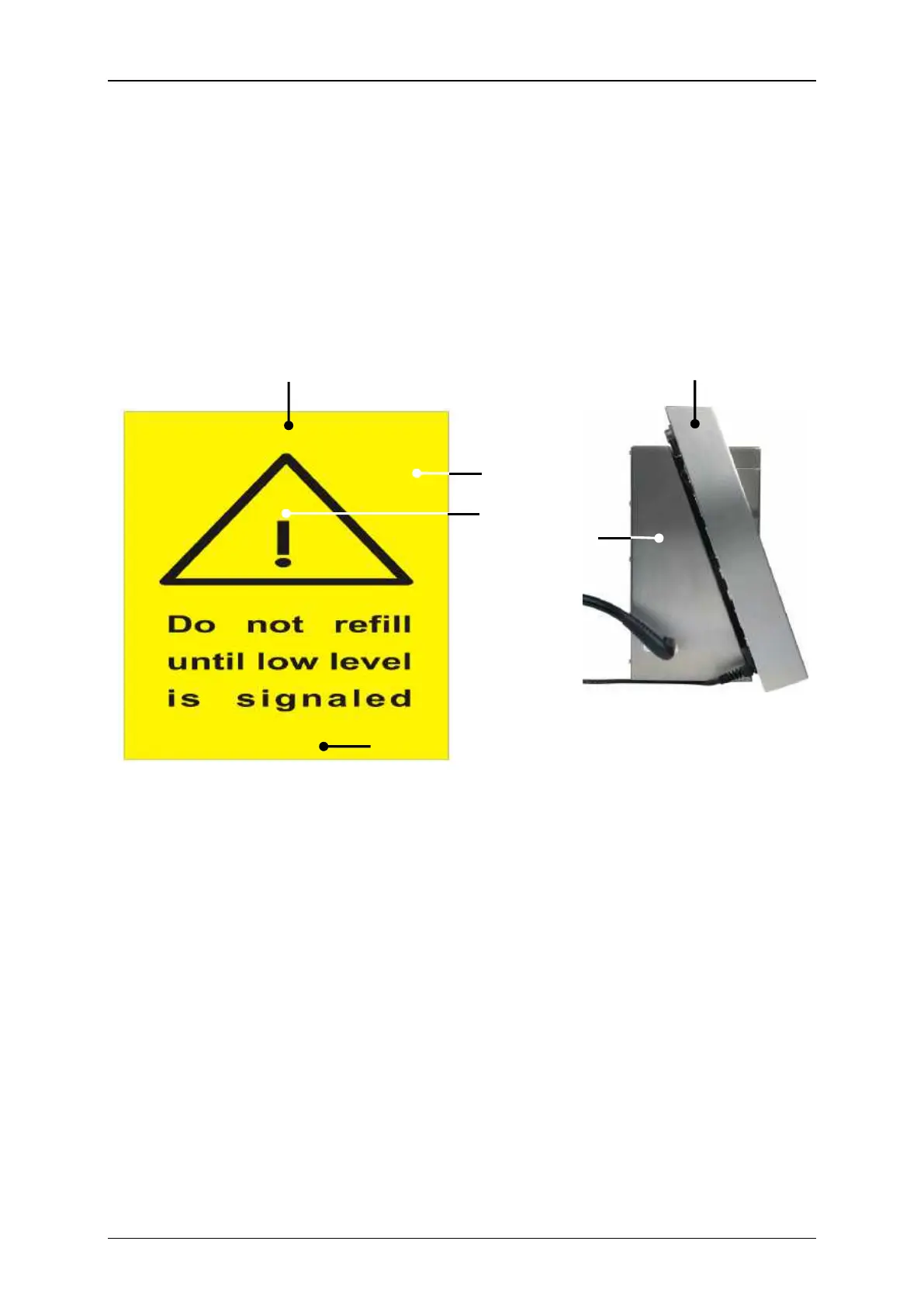

Figure 14
Equipment configuration (General view)
1 Electronic cabinet
4 Refilling unit
2 TFT Touch Display
5 Print head with umbilical
3 Hydraulic cabinet
In the closed electronic cabinet you will find the essential electronic components as power
supply, the TFT-Touch Display as well as the controller board.
The large central arranged TFT-Touch Display describes the interactive interface for the
operator. This central entry medium with its extensive 10,4” color display with backlight
allows a clear, self-explaining operator guidance without additional keys and switches.
In the hydraulic cabinet you find all components which are required for the transportation
and preparation of ink.
The refilling unit provides a supply of consumables. It contains two separate reservoir
tanks for ink and solvent. The unpressurized tanks can be refilled without interrupt
procedure, odorless and splash-free during the operation.
