Some buttons may indicate their current status:
Button caption
greyed out:
The button is disabled at the moment. The reason for this may
be a functional one (the command is not enabled during
operation) or it be caused by an interfering parameter setting.
Button is displayed
blue-grey:
The button is activated and the command is carried out at the
moment.
Status indicators or display fields
A status indicator shows a status or a position. That may be the position of a print object
(e.g. x-y indicator) or the current status of a printer component (e.g. the diaphragm
position in the pressure tank). An indicator that is combined with arrow keys is also
referred to as “display field”. A display field may not only show the current value but also
can be used for inputs.
INFORMATION
The functionality of the user interface corresponds to the Windows™-
standard procedures.

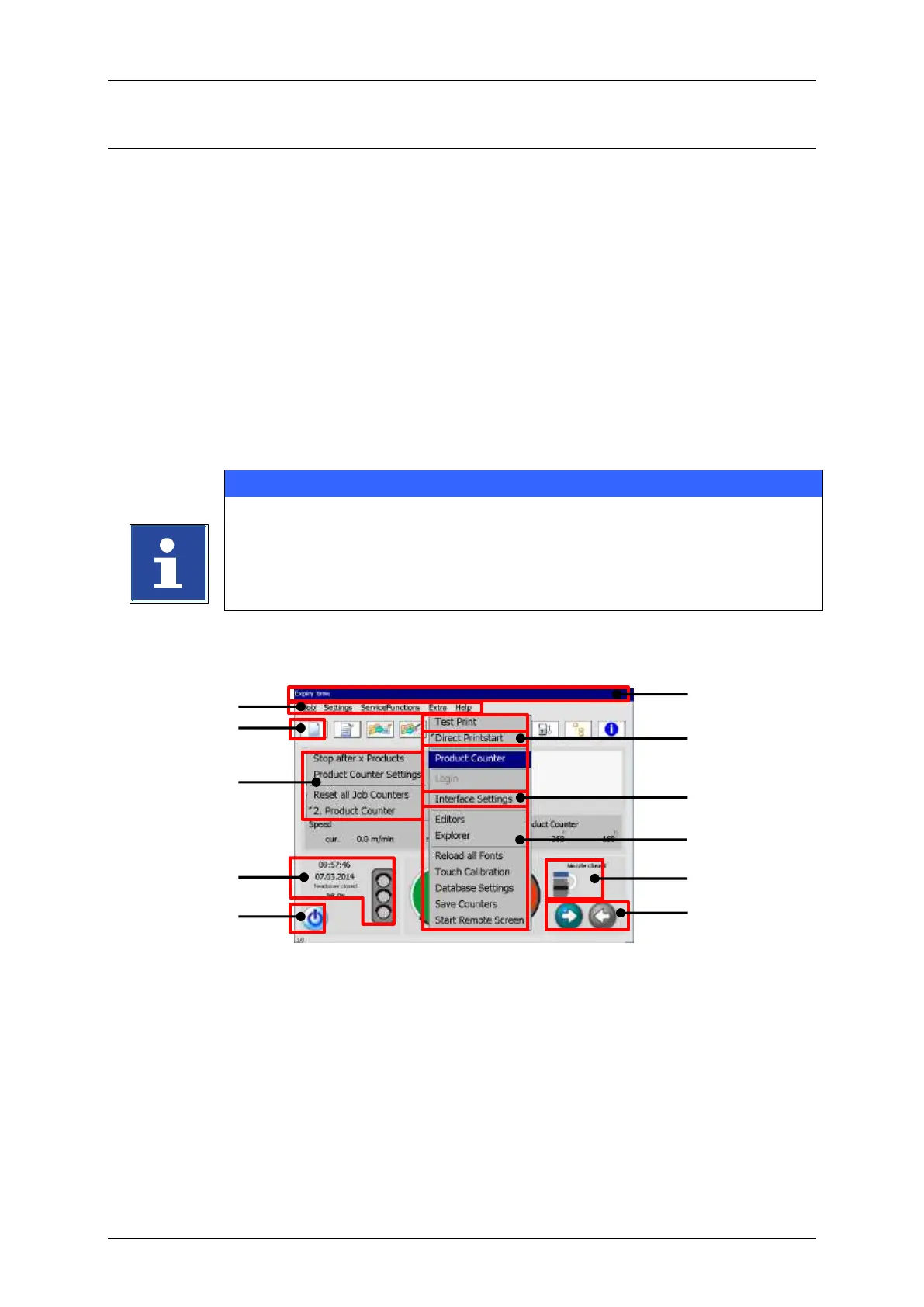

Figure 29
Menu layout 1
1 – Menu bar
6 – Option in drop-down menu
2 – Direct button (Icon)
7 – Drop-down menu
3 – Submenu
8 – Status indicators
4 – Title bar
9 – Buttons
5 – Command in drop-down menu
