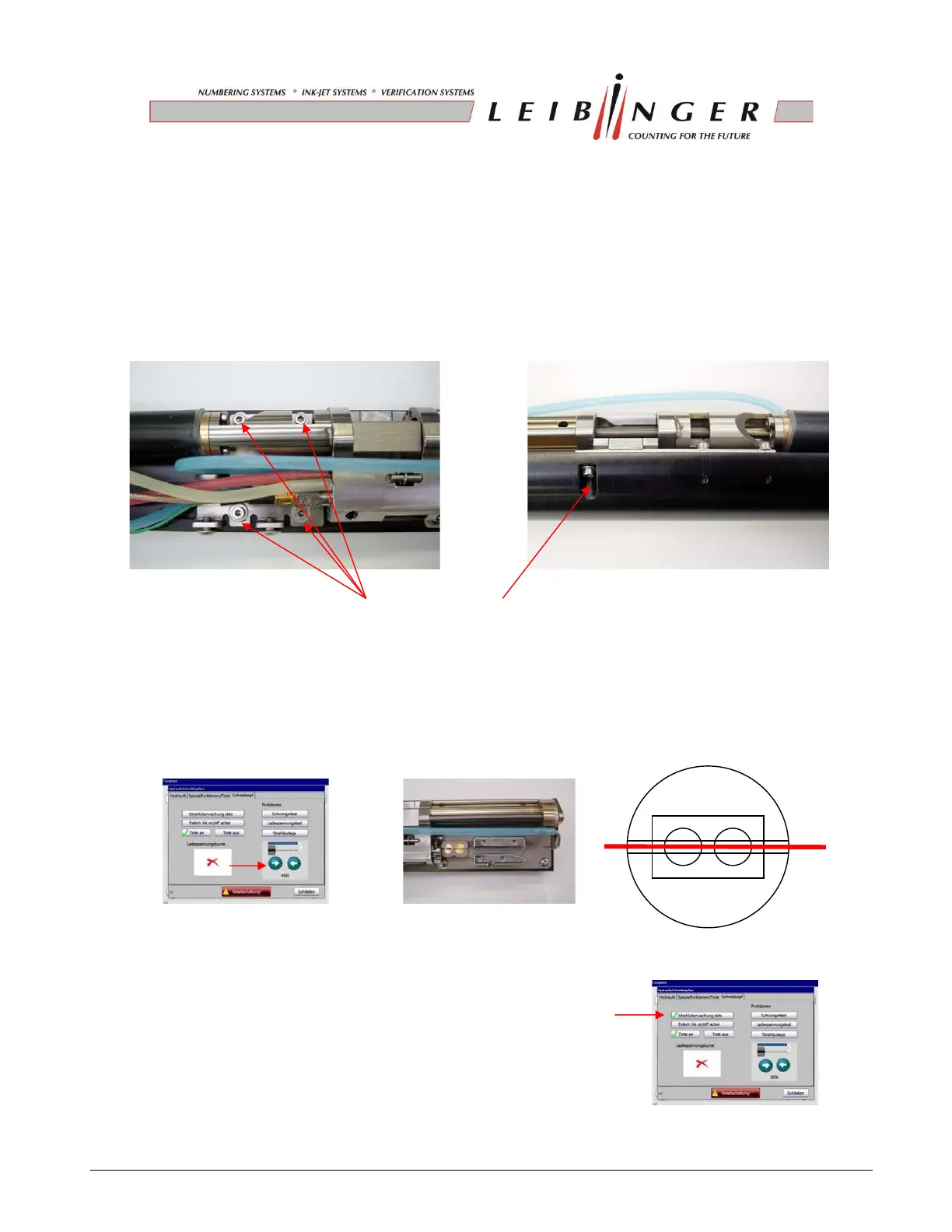

Sequence of adjustment:
- Open the 5 retaining screws of the mounting plate untill it could be moved lightly by hand.
- Relocate the mounting plate until the ink stream reaches the final adjustment position.
- Tighten the retaining screws and check the jet position again.
retaining screws (fix with Allen key (SW 1,5) or Torx (T6)).
6. Open the nozzle seal completely with the arrow button unless the ink stream goes inside the
charging tunnel and the nozzle seal reaches the final position.
The ink stream should be concentric inside the charging tunnel and parallel to the deflection
plates. If not, readjust the position again.
7. Switch on the „Ink-Flow-Sensor“.
