53
Leica RM2235
Take the knife holder apart for cleaning. To do
so, proceed as follows:
• Fold knife guard (9) downward.
• Rotate the clamping lever (11) of the lateral
displacement forwards and pull it out side-
ways.
• Push the knife holder base plate (86) with
the pressure plate (83) until it can be
removed from the segment arch (87).
• Rotate the blade clamping lever (10) down-
ward and pull it out sideways.
• Remove pressure plate (83).
• Clean all parts of the knife holder.
For cleaning and removal of paraffin,
do not use xylene or cleaning fluids
containing alcohol (e.g. glass cleaner).
• Dry knife holder and reassemble.
•
After cleaning the moving parts, apply a thin
coat of drive part oil to them (see also
Chapter 8.3).
• When installing the pressure plate (83) make
sure that the upper edge is parallel and level
with the rear edge of the knife holder base
plate (86).
8. Cleaning and maintenance

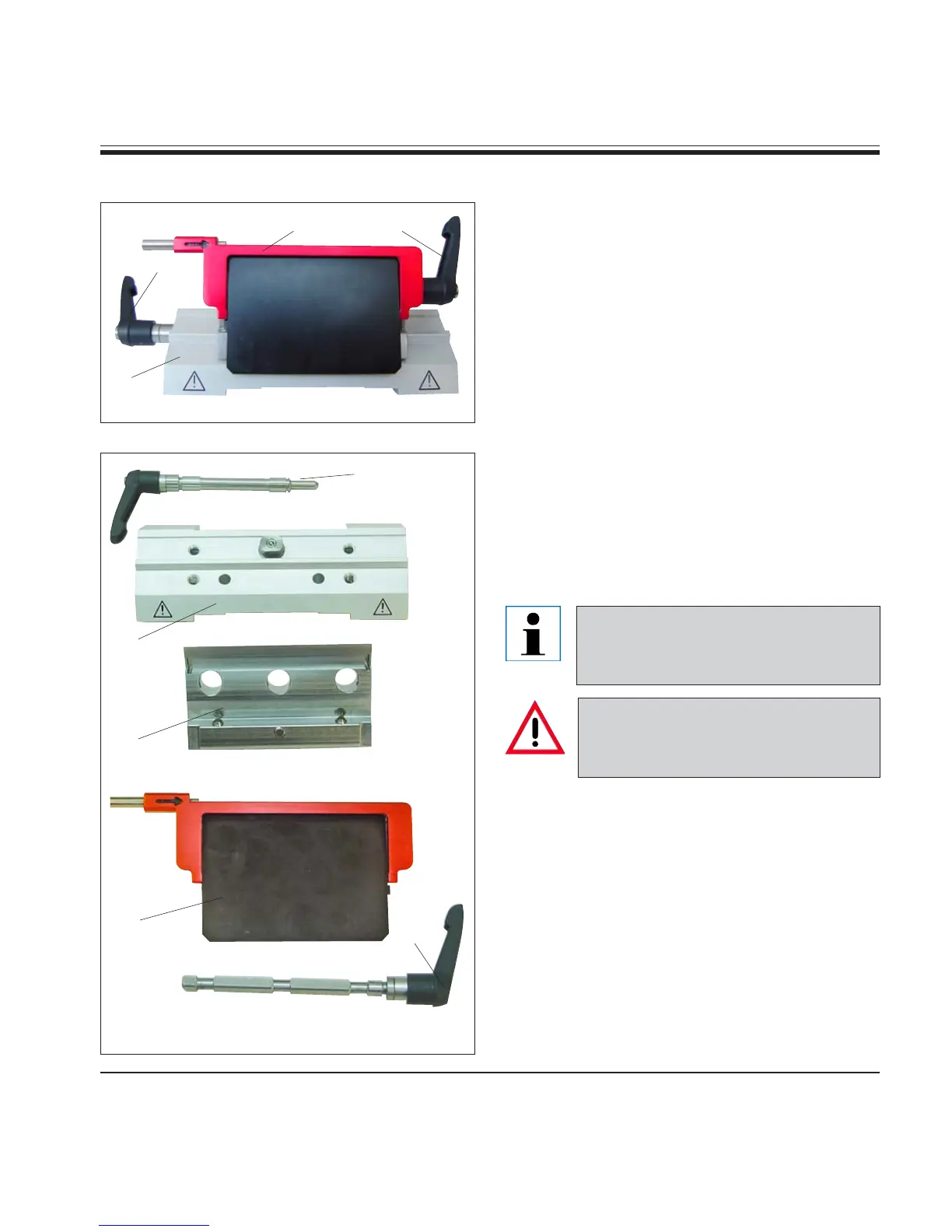

Knife holder E
Fig. 55
10
11
9
Fig. 56
86
83
83
86
87
11
10
If several knife holders are cleaned at
the same time, the parts must not be
mixed up!
