LELY WELGER AP 530 AP 630 AP 730 AP 830 33
Wire tying 3.3.8
Threading the Wire
Wire coils should be neatly and evenly wound. Before fitting
coils, immerse them in oil to complete saturation. The wire box
takes 2 coils, 2 spare coils can be placed in the compartment
behind the packer box.
 Fit coils while still closed, turns running clockwise.
 Cut straps open.
 Pull inner wire ends out through holes in box. Avoid kinks
and loops, or faulty tying may result!
 Tie outer wire end to wire box

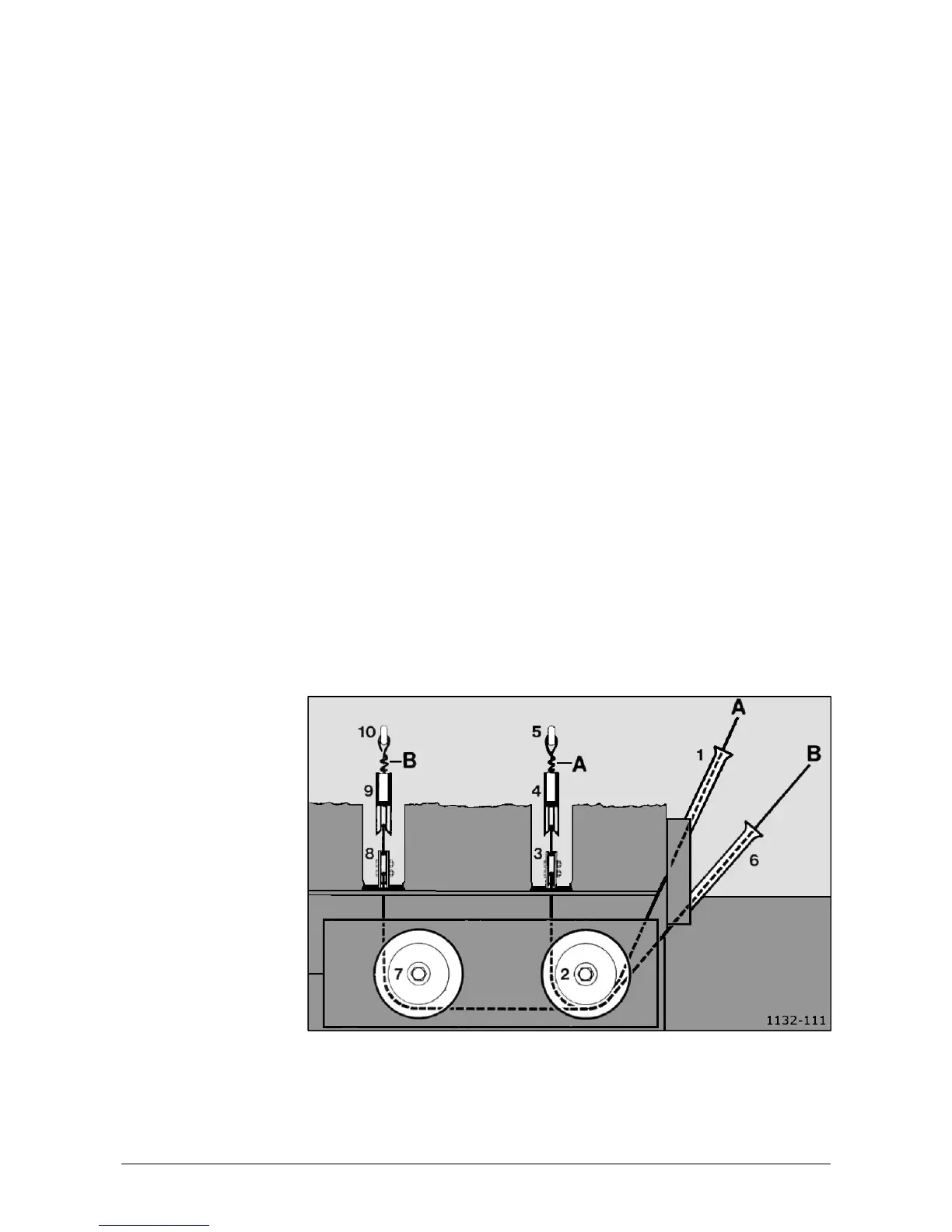

Thread wire as indicated in Figure 8:
Wire A:
Through wire guide tube 1, round guide roller 2, between track
rollers 3, over needle head 4 to wire hook 5. Carefully tie end of
wire A to hook 5.
Wire B:
Through wire guide tube 6, over guide roller 2, round guide
roller 7, between track rollers 8, over needle head 9 to wire
hook 10. Carefully tie end of wire B to hook 10.
Pulling the wire into the tying unit
 Trip tiers as shown in Figure 10.
 Turn flywheel in direction of arrow Figure 15 until needles
have moved up and down and the tiers have taken up the
wire.
 Pull wire ends from hooks 5 and 10 (Figure 8).
Figure 8
