LELY WELGER AP 530 AP 630 AP 730 AP 830 63

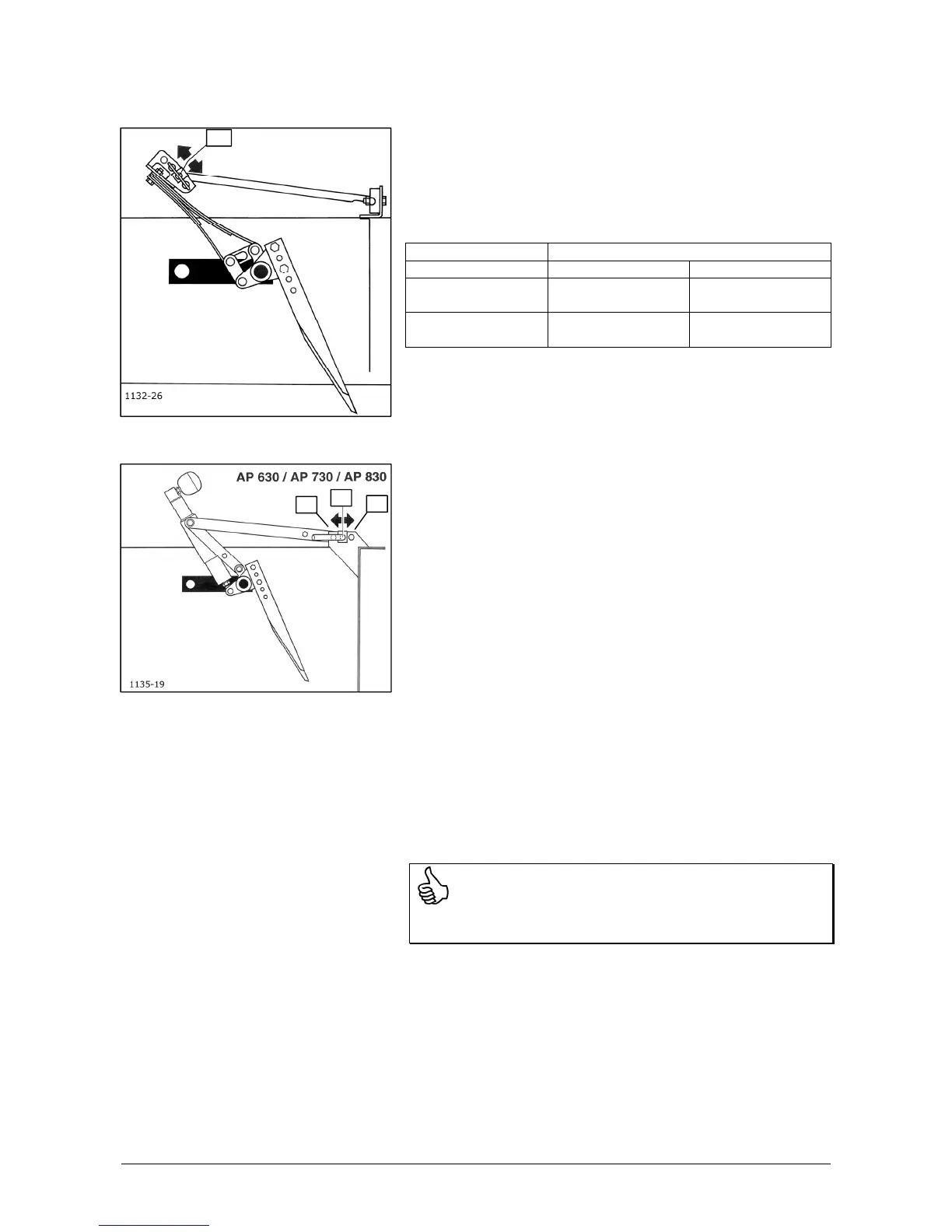

Packer quick adjustment
A good bale shape largely depends on even filling of the baling
channel by the packer. To achieve a good bale shape with
different crop materials, baling channel filling can be altered by
repositioning the Iinchpin in the perforated link plate on the
packer rod linkage:
denser filling in driving direction
left right
AP 530 (Figure 43) pin 34 in lower
holes
pin 34 in upper
holes
AP 630/AP 730
AP 830 (Figure 44)
pin 33 in right hole
A
pin 33 in right hole
B
 Secure pin 33 or 34 with the guard pin. By adjusting the
tines on the packer and cross-feeder, it is also possible to
influence the way material is fed into the baling channel.
 Packer tines higher: bales on knife side are firmer.
Examining ram movement
5.2.6
 Clean off baling material compressed onto the slide rails.
 Check that the ram pins are tight.
 Clean, examine and, if necessary, replace all rollers and
slide rail scrapers on the dismantled ram.
Note!
Have the ram slide rails in the frame of the machine readjusted
only by a specialist workshop.
AP 530
Figure 43
34
Figure 44
33
A
B
