1 INTRODUCTION

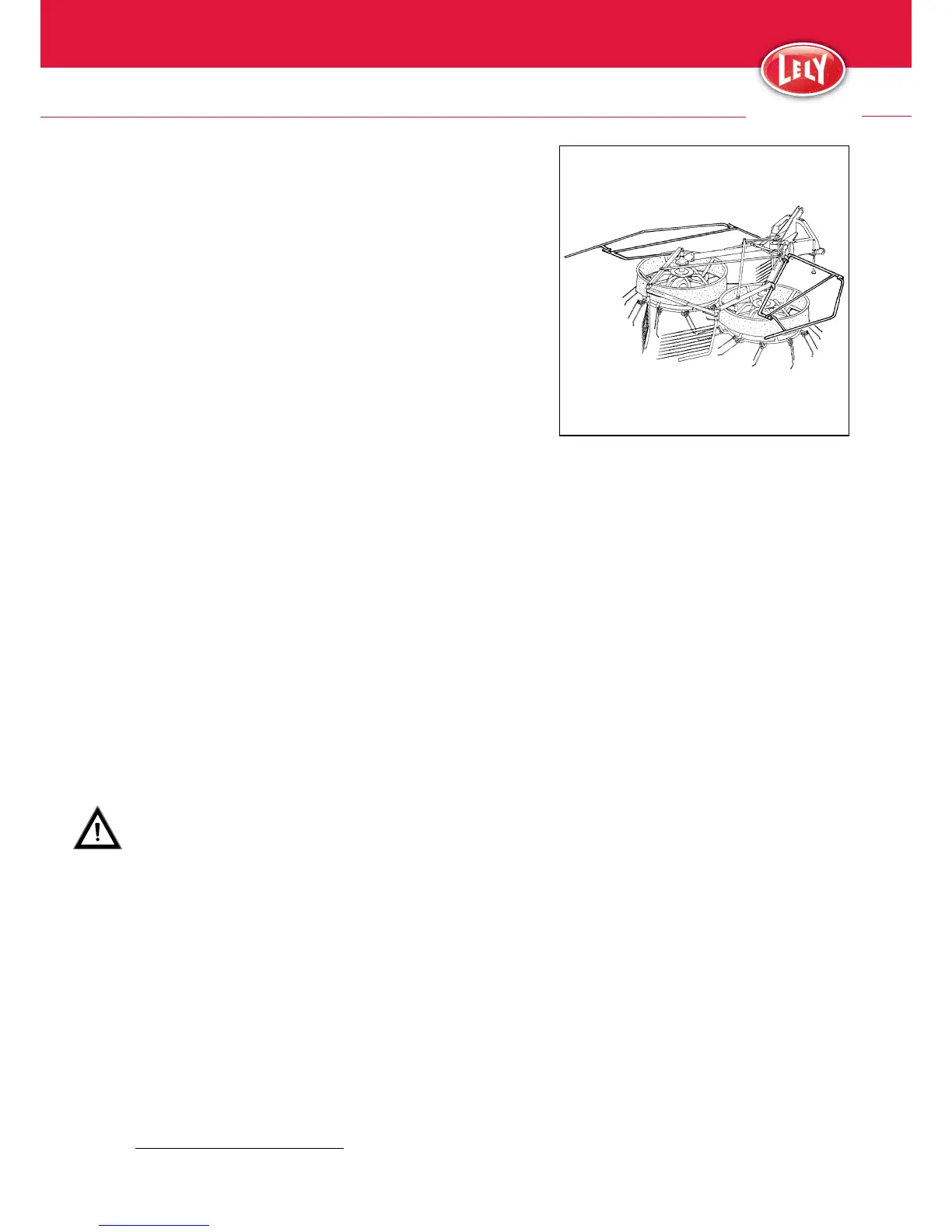

The LELY ROTONDE 510 CD (fig.1) is a trailed, twin-rotor cam rake
for central delivery. The rotors of the ROTONDE rake are equipped
with 10 double, horizontal tines.
The tines give a clean sweep and move the grass to the centre in an
airy windrow.
The machine's working width and swath width can be adjusted
infinitely by means of hydraulics from the tractor cab. The working
width can be adjusted to between 3.85 m and 5.10 m.
Both pneumatic tyres of the wheel assemblies underneath the rotors
ensure excellent raking when working in undulating fields as well.
Thanks to its swivel wheels, the machine can be driven in circular
passes in the field.
2 LINKAGE TO THE TRACTOR
Link the machine to the tractor as follows:
- Adjust the tractor's three-point-hitch arms at an equal height.
- Fit the lower arms to the category 1 linkage pins of the headstock.
Use filling bushes for a category II hydraulic tractor lift.
- Attach the top link of the tractor to the machine with a category
II top link pin.
- Place the parking jack in the raised position.
- Secure the tractor’s lower arms with stabilisation chains or rods to
eliminate any sideways movements.
- Check if the PTO shaft telescopes smoothly.
- Fit the PTO shaft to the tractor PTO.
During first assembly or when using another tractor, check
the minimum and maximum overlap of the PTO shaft halves
in all positions
*
.
- Fit the safety chain of the protection tube to a rigid part of
the tractor.
- Connect the hydraulic hoses to a double-acting hydraulic tractor
valve.
Permitted maximum oil pressure: 21.0 MPa (210 bar).
- Place the end of the operating cord of the ram lock in the tractor
cab.
*. Consult the instructions supplied with the PTO shaft
