LEM DCBM 100 Series User Manual

7/16
DCBM 100 Series
N° 99.W1.99.000.0
01March23/Version 1
DC ENERGY METER
4

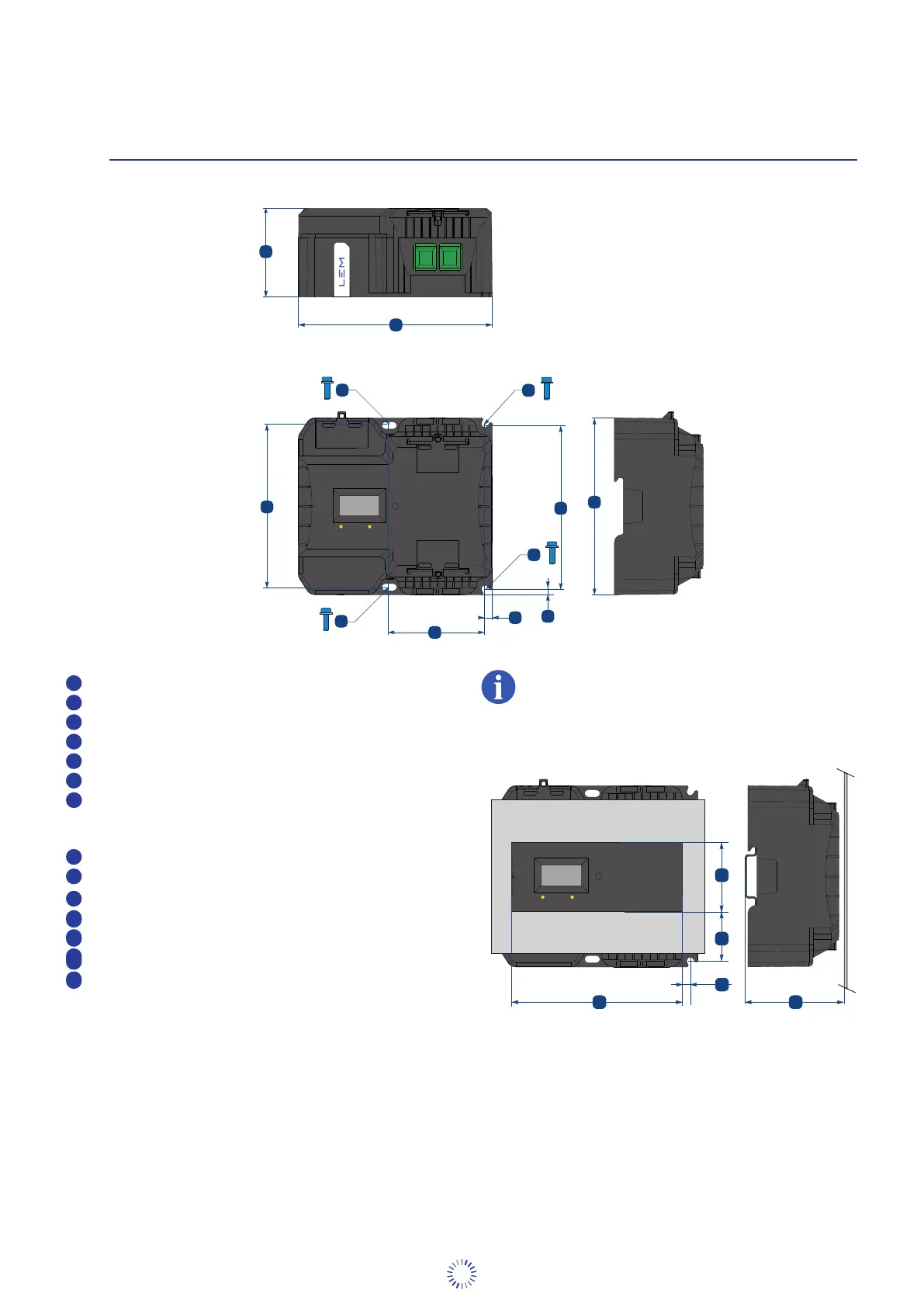

Dimensions et Installation/ Maße und Installation / Dimensions et
Installation
A
56 mm (±0.2)
B
122 mm (±0.2)
C
111 mm (±0.2)
D
60 mm (±0.2)
E
3.7 mm
F
4.7 mm
G
4x M4 screws with internal drive (torque max 2 Nm)
4x M4 Schrauben mit Innenantrieb (Drehmoment2 Nm)
4x Vis M4 à entraînement intérieur (couple max 2 Nm)
H
101.5 mm (±0.2)
I
103.5 mm (±0.2)
104 mm (±0.2)
4 mm (±0.2)
30 mm (±0.2)
43 mm (±0.2)
60 mm (±0.2)
Drilling / Lochdurchmesser / Perçage
D
H
A
B
G
G
G
G
E
C
F
I
K
J
L
M
N
Aperture for electrical cabinet
Sichtfenstergröße im Einbauschrank
Ouverture pour les armoires électriques
N
M
J
L
K
