LEM DCBM 100 Series User Manual

8/16
DCBM 100 Series
N° 99.W1.99.000.0
01March23/Version 1
DC ENERGY METER
5

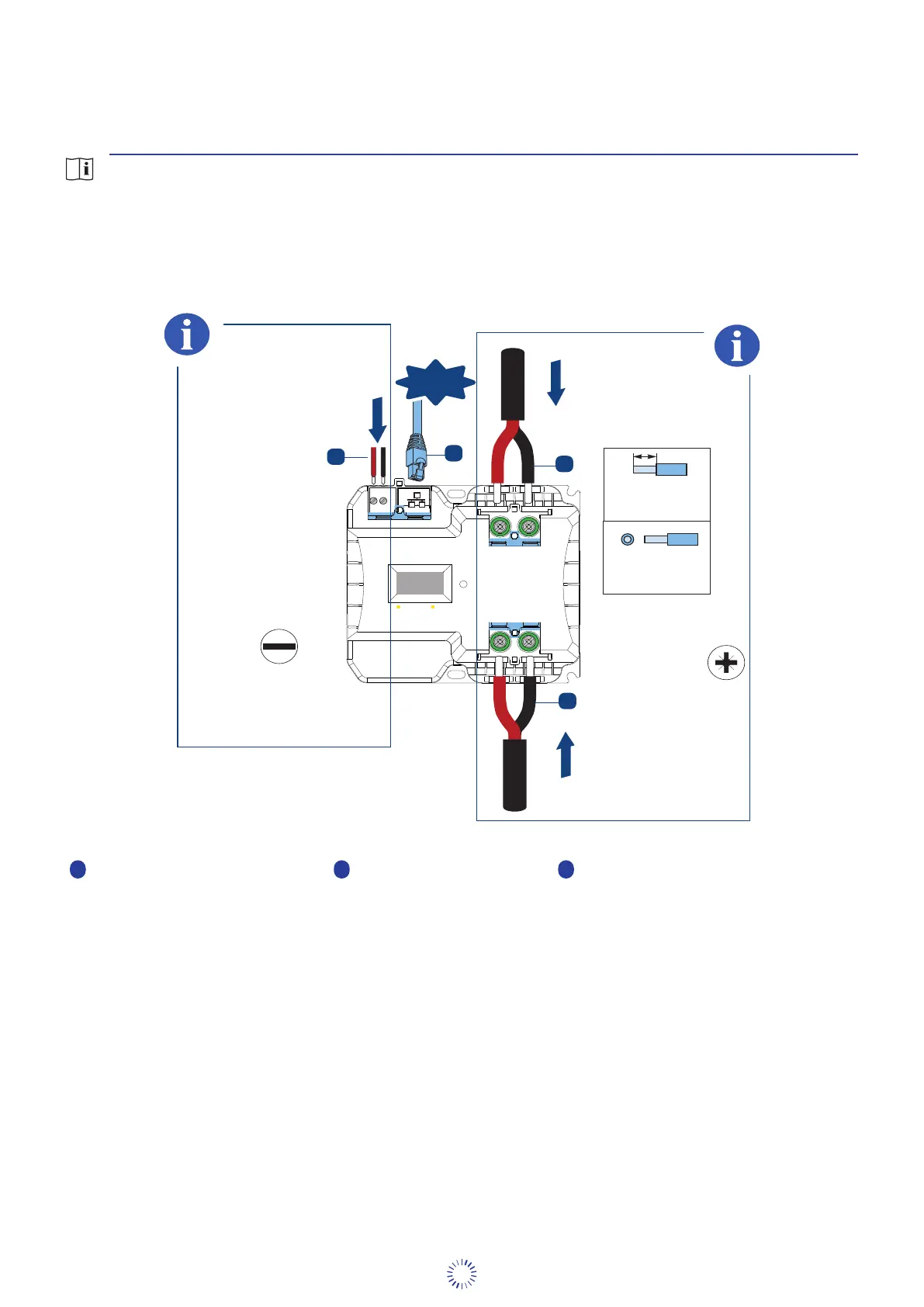

Connection / Anschluß / Raccordement
To connect and disconnect the wires, use a screwdriver 3 x 0.6 mm for power supply and slotted Pozidriv
(Z2L) 6.5 * 100 mm for power cable.
Verwenden Sie zum An- und Abklemmen der Leiter einen Schraubendreher 0.6 x 3 fur die Stromversorgung
und eine Pozidriv-Schraubendreher (fur Schraubenkopf Z2L) fur die 6.5 x 100 mm Stromkabel.
Pour connecter et déconnecter les fils, utiliser un tournevis 3 x 0.6 mm pour l’alimentation et une empreinte
Pozidriv (Z2L) pour les câbles de puissance 6.5 * 100 mm.
B
Click!
A
18 mm
0.7 in.
0.5 ... 35 mm²
20 ... 2 AWG
C
C
1 2
+
–
I1
I3
I2 I4
Device Power
supply
Power Cable
Slotted Pozidriv (Z2L)
Screwdriver, VDE insulated,
size: 1.0 x 6.5 x 150 mm,
Torque:
≤ 25 mm² = 2,5 Nm max
35 mm² = 4,5 Nm max
Slotted (L)
Screwdriver, VDE insulated,
size: 0.6 x 3.5 x 100 mm,
torque: 0,6 Nm max
A
Power supply
Stromversorgung
Alimentation
B
Ethernet cable
Ethernet Kabel
Câble Ethernet
C
Power cable
Stromkabel
Câble de puissance
