Spare Part ListSpare Part List

Spare Part List

Code Ref. Description

AccessoriesAccessories

Accessories

277317 Owner’s Manual P-Series

AssemblyAssembly

Assembly

667335 MEAYA104 Rear Spacer

667648 MSSDDY02 Cover

667647 MSSDDX01 Chassis

667646 MSSEBA01 Front Panel

657232 HRDKBH51 Level Knob

237076 FIN27242 Transformer 230Vac 8W (EU)

237075 FIN27241 Power Transformer 230Vac 400W (EU)

177542 MEATA102 Handle

141200 CONJK351 Speakon Socket

130285 Mains Cable (EU)

110291 SWTPR141 Power Switch

778125 FIN27261 Cables Assembly

Inputs AssemblyInputs Assembly

Inputs Assembly

768177768177

768177

FIN27207FIN27207

FIN27207

Sockets Board (Pcb# 9603014)Sockets Board (Pcb# 9603014)

Sockets Board (Pcb# 9603014)

140228 CONJK151 Stereo Jack Socket

CONJK141 XLR Female Socket

768145768145

768145

FIN27201FIN27201

FIN27201

Inputs Board (Pcb# 9602004)Inputs Board (Pcb# 9602004)

Inputs Board (Pcb# 9602004)

110293 * 2sw 2pos Slider Switch

110255 * 6sw 3pos Vertical Slider Switch

100061 * TL072 Dual J-Fet Operational Amplifier (Replace BA-4560 For

Service)

070245 * 100K 20% Vertical Linear Trimmer

070125 * 1K 20% Vertical Linear Trimmer

042625 * 15K0 1/4W 1% Metalized Film Resistor

030085 * 2u2 50V 20% Vert Electrolytic Bipolar Capacitor

Supply AssemblySupply Assembly

Supply Assembly

768179768179

768179

FIN27206FIN27206

FIN27206

Fuse Board (Pcb# 9610035)Fuse Board (Pcb# 9610035)

Fuse Board (Pcb# 9610035)

110030 * T10A Fuse 5x20mm (EU)

768180768180

768180

FIN27208FIN27208

FIN27208

Supply Board (Pcb# 9610039)Supply Board (Pcb# 9610039)

Supply Board (Pcb# 9610039)

080607 * KBPC25 25A 200V Rectifier Diode Bridge

030889 * 10000u 100V -10+50% V Electrolytic Capacitor FS

030891 CAPELJ81 * 10000u 63V -10+50% Vert Electrolytic Capacitor FS

Protections & Display AssembliesProtections & Display Assemblies

Protections & Display Assemblies

768147768147

768147

FIN27209FIN27209

FIN27209

Led On/Off Board (Pcb# 9405022)Led On/Off Board (Pcb# 9405022)

Led On/Off Board (Pcb# 9405022)

768178768178

768178

FIN27202FIN27202

FIN27202

Display Board (Pcb# 9610036)Display Board (Pcb# 9610036)

Display Board (Pcb# 9610036)

080742 * Led 3mm Wide Diffused Red-Grn

080710 * Led 3mm 60deg Diffused Yel

080705 * Led 3mm 60deg Diffused Red

090194 * BC560 TO92 LN Pnp Transistor

RESVRD01 * 4K7 Linear 16mm Rotary Potentiometer

768146768146

768146

FIN27203FIN27203

FIN27203

Protections Board (Pcb# 9610038)Protections Board (Pcb# 9610038)

Protections Board (Pcb# 9610038)

110308 * Relay 24V / 1Switch no 20A 250V

110006 * T100mA Fuse 5x20mm (EU)

110004 * T400mA Fuse 5x20mm (EU)

100067 * LM337 1.2-37V 1.5A Adjustable Regulator

100066 * LM317 1.2-37V 1.5A Adjustable Regulator

090920 * MJE802 TO126 Npn Darl Transistor

090194 * BC560 TO92 LN Pnp Transistor

090183 * BC550 TO92 LN Npn Transistor

080550 * 2N5060 30V 0.8A Scr Thyristor

080282 * 13V 1W 5% Zener Diode

080168 * W02M 1.5A Rectifier Diodes Bridge

080156 * 1N4002 1A 100V Rectifier Diode

080103 * 1N4148 100mA 75V Signal Diode

020493 * 100n 250Vac MKP EMI Capacitor “Siemens”

Power Channels AssemblyPower Channels Assembly

Power Channels Assembly

737089737089

737089

FIN27213FIN27213

FIN27213

Dual Power Channels AssemblyDual Power Channels Assembly

Dual Power Channels Assembly

768148768148

768148

FIN27204FIN27204

FIN27204

Single Driver Board (Pcb#9610037)Single Driver Board (Pcb#9610037)

Single Driver Board (Pcb#9610037)

100937 ** MPQ6002 Quad Compl Pair Trans

100931 ** MC34081 Single J-Fet Operational Amplifier

100928 ** TLP521-4 Quad Optocoupler

090201 ** 2N5401 TO92 Pnp Transistor

090200 ** 2N5550 TO92 Npn Transistor

090194 ** BC560 TO92 LN Pnp Transistor

090183 ** BC550 TO92 LN Npn Transistor

080293 ** 15V 1W 5% Zener Diode

080245 ** 7V5 1W 5% Zener Diode

080103 ** 1N4148 100mA 75V Signal Diode

070207 ** 22K 20% Vertical Linear Trimmer

042485 ** 1K00 1/4w 1% Metalized Film Resistor

030715 ** 1000u 6v3 20% Vert Electrolytic Capacitor

030247 ** 10u 25V 20% Vert Electrolytic Bipolar Capacitor

727590727590

727590

FIN27211FIN27211

FIN27211

Dual Power AssemblyDual Power Assembly

Dual Power Assembly

727591 ** Single Power Board (Pcb#9610034) (with heatsink)

768149 *** Single Power Board (Pcb#9610034) (without heatsink)

230557 **** 1uh Hor Coil For Amplifier

140891 **** 3 Contacts Hor Male Single-Strip

090917 **** MJE350 TO126 Pnp Transistor

090916 **** MJE340 TO126 Npn Transistor

090194 **** BC560 TO92 LN Pnp Transistor

090183 **** BC550 TO92 LN Npn Transistor

080293 **** 15V 1W 5% Zener Diode

080171 **** FE6B 6A 100V Fast Recovery Diode

080167 **** 1N5403 3A 300V Rectifier Diode

080158 **** 1N4006 1A 800V Rectifier Diode

080156 **** 1N4002 1A 100V Rectifier Diode

080103 **** 1N4148 100mA 75V Signal Diode

070125 **** 1K 20% Vertical Linear Trimmer

060591 **** 8K2 2W 10% Resistor

060571 **** 5K6 2W 10% Resistor

060174 **** 2E7 5W 10% Wire Resistor

060034 **** 0E15 5W 5% Wire Resistor

060033 **** 0E1 5W 5% Wire Resistor

340752 *** TO3 Mica Washer

340750 *** TO126 Mica Washer

340079 *** TO220 Mica Washer

340078 *** TO220 Insulated Bush

140626 *** TO3 Socket

100925 *** LM334 Adjustable Current Source TO92

090920 SMCTRB21 *** MJE802 TO126 Npn Darl Transistor

090919 SMCTRA01 *** MJE15031 TO220 Pnp Transistor

090918 SMCTR991 *** MJE15030 TO220 Npn Transistor

090917 SMCTRA11 *** MJE350 TO126 Pnp Transistor

090916 SMCTR951 *** MJE340 TO126 Npn Transistor

090915 SMCTRB61 *** MJE5850 TO220 Pnp Transistor

090914 SMCTRB11 *** MJE13007 TO220 Npn Transistor

090911 SMCTR961 *** MJ15023B TO3 Pnp Transistor (Dual Factory Red Selection)

090908 SMCTR971 *** MJ15022B TO3 Npn Transistor (Dual Factory Red Selection)

090905 SMCTR571 *** MJ15004B TO3 Pnp Transistor

090902 SMCTR581 *** MJ15003B TO3 Npn Transistor

080818 *** PTC 70 P341-C100 Siemens

727589727589

727589

FIN27212FIN27212

FIN27212

Fan 24Vdc 80x25mmFan 24Vdc 80x25mm

Fan 24Vdc 80x25mm

Note:Note:

Note:

Each spare part is single quantity unless otherwise specified.

Asterisk prefix explanation:

Omitted = First level spare part.

One asterisk = Second level, part of previous listed first level part.

Two asterisk = Third level, part of previous listed second level part.

Three asterisk = ............

Any request for not above mentioned part must encompass specific description including:

1) Model name,

2) Section name,

3) Module code,

4) Reference name,

5) Quantity number.

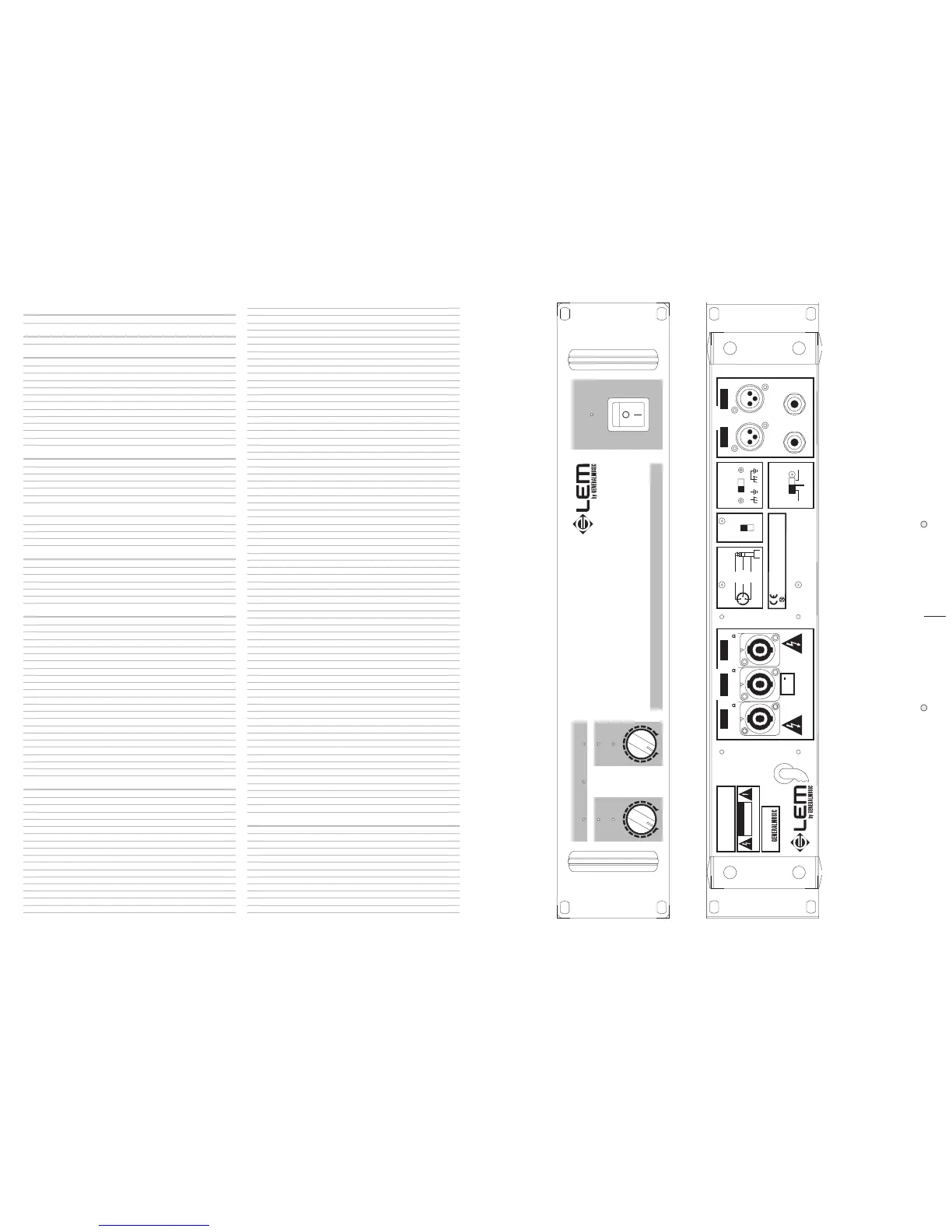

PROTECT PROTECT

SIGN/CLIP SIGN/CLIP

BRIDGESTEREO PARALLEL

P1000

PROFESSIONAL POWER AMPLIFIER

POWER

CH. B

CH. A

WARNING !

RISK OF HAZARDOUS ENERGY

MAKE PROPER SPEAKERS CONNECTIONS

REFER TO OWNER'S MANUAL BEFORE USING

OUTPUTS

HOT

COLD

GND

WIRING

SENSITIVITY

1.125 V

0.775 V

EARTH

MODE

CH. B

CH. A

INPUTS

AC~

SER.

MOD.

MADE

INDIA

BRIDGE

PIN 1

PIN 1+

P1000

PROFESSIONAL

POWER AMPLIFIER

MIN. LOAD 4

MIN. LOAD 8

MIN. LOAD 4

BRIDGE

BALANCED BALANCED

DESIGNED AND

ENGINEERED IN ITALY

AVIS:

RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

"WARNING"

TO REDUCE THE RISK OF

FIRE OR ELECTRIC SHOCK DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE.
