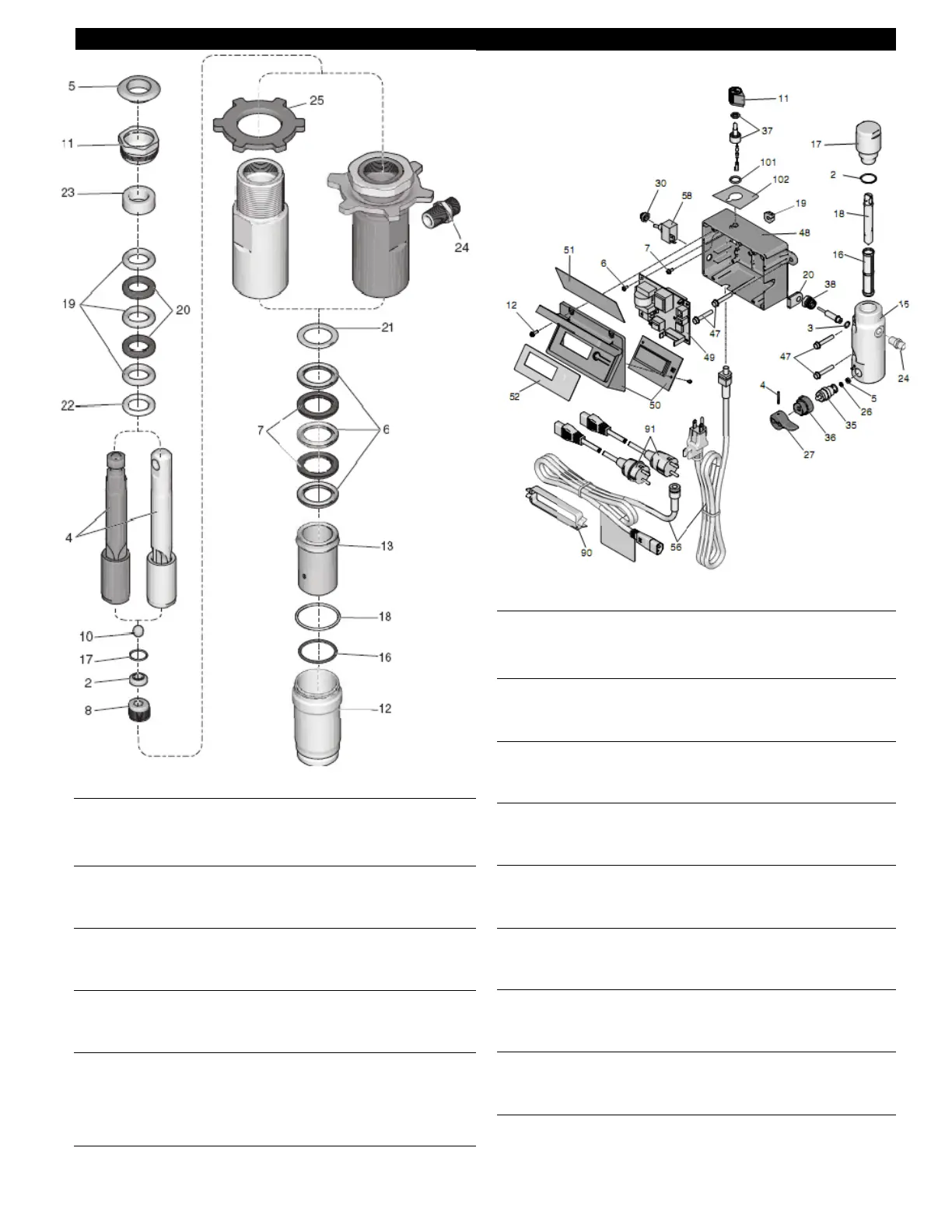

DC-5550 DIAGRAM & PARTS LIST
Jan19
Pos. Part nos. Description Qty.
2 +# 17J183 SEAT, top (piston) 1
4 +# KIT, rod, piston
5* 180656 PLUG, button 1
6* 17J184 V-PACKING, throat, UHMWPE 3
7* 17J185 V-PACKING, leather 2
8 +# 17J179 PLUG, seat retainer, piston 1
10*+# 105444 BALL, sst, 0.3125 in. 1
11 17J181 NUT, packing 1
12 17N465 VALVE, intake, housing 1
13* 17P097 KIT, guide, ball, assembly incl 16,18 1
16* 16D531 O-RING 1
17*+# 17J187 O-ring, special, piston seat 1
18* 17S053 O-RING 1
19* 125724 V-PACKING, piston, UHMWPE 3
20* 176755 V-PACKING, leather 2
21* 17J188 GLAND, male, piston, lower 1
22* 176754 GLAND, male, throat, upper 1
23* 176757 GLAND, female, throat 1
24 162453 Outlet fitting
25 195150 Tightening ring
Accessories
* 17P094 KIT, repair, pump
+ 17P096 KIT, repair, piston assy, Quick Repair
# 17P095 KIT, repair, piston rod assembly
Pos. Part nos. Description Qty.
2 117828 PACKING, o-ring 1
3 111457 PACKING, o-ring 1
4 111600 PIN, grooved 1
5 277364 GASKET, seat, valve 1
6 115494 SCREW, mach, Phillips, pan hd 6
7 115498 SCREW, mch, slot/hex, wash hd 1
11 116167 KNOB, potentiometer 1
12 117501 SCREW, mach, hex washer hd 4
15 15G455 MANIFOLD, fluid 1
16 17P314 30 mesh
17P315 60 mesh, original
17P316 100 mesh
17 287902 CAP, manifold, includes 18 1
18 15B071 INSERT, filter 1
19 15B118 BUSHING, motor wire 1
20 15B120 GROMMET, transducer 1
24 162453 NIPPLE, (1/4 npsm x 1/4 npt) 1
26 15E022 SEAT, valve 1
27 187625 HANDLE, valve, drain 1
30 195428 BOOT, toggle 1
35 239914 VALVE, drain, includes 5, 26 1
36 224807 BASE, valve 1
37 17D888 POTENTIOMETER, assembly 1
38 243222 TRANSDUCER, pressure control, incl31
47 117493 SCREW, mach, hex washer hd 4
48 276868 BOX, control 1
49 246379 CONTROL, board 1
50 17N274 DIGITAL, display includes 51, 52 2
51 17M694 LABEL, control 1
52 17M698 LABEL, control, display 1
56 15J743 CORD, 120V
58 195429 SWITCH, toggle 1
90 195551 RETAINER, adapter (some models) 1
101 158674 O-ring, packing 1
102 17P738 LABEL, control 1
